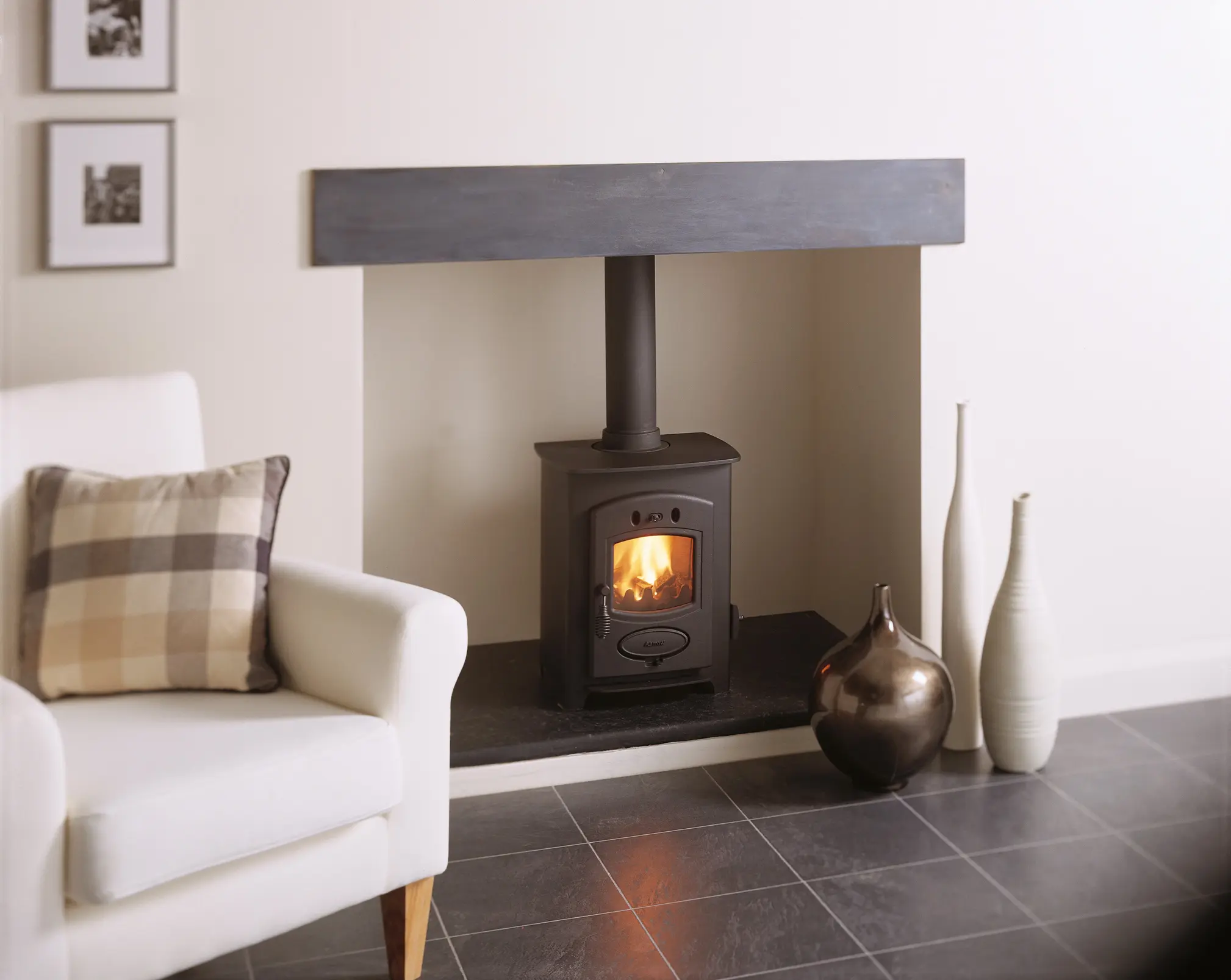

Acorn 5kw Multifuel
[ACORN5] Acorn 5kw Multifuel (Acorn 5) technical information
Stove model code: ACORN5
Stove model production status: Discontinued
First produced: October 2011
Last produced: April 2012
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 483 |
| Width (mm): | 395 |
| Depth (mm): | 350 |
| Height (from top to centre of rear flue) (mm): | 388 |
| Depth (from back to centre of top flue) (mm): | 96 |
| Flue diameter (mm): | 102 |
| Weight - when packed (kg): | 47 |
| Ideal log length (mm): | 200 |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | No |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
Output - Wood fuel
| Output - wood (kW): | 5 |
| Min. output - wood (kW): | 1.5 |
| Max. output - wood (kW): | 5 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1099 | Complete Fire Door | Door | 1 | No |
| 1) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 1) | AIB0 | Add In Boiler - 1.8kw | Add In Boiler | 1 | No |
| 1) | AFS1101 | Fuel Retainer | Fuel Retainer | 1 | No |
| 1) | AFS1015 | Liner Set | Liner | 1 | No |
| 1) | AFS001/OLD | (obsolete) Grate Bar *old Style* (ngb1b) | Grate Bar | 1 | No |
| 1) | AFS1117 | Grate Bar Support | Grate Bar Support | 1 | No |
| 1) | AFS1058 | Liner Set (side) | Liner | 1 | No |
| 1) | AFS048 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS1126 | (obsolete) Stove Operating Manual | Miscellaneous | 1 | No |
| 1) | AFS1059 | Liner Set (rear) | Liner | 1 | No |
| 1) | AFS1018 | Throat Plate | Throat Plate | 1 | No |
| 1) | AFS1135 | Floor Fixing Kit | Accessories | 1 | No |
| 1) | AFS1149 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 1) | AFS1141 | Liner Set | Liner | 1 | No |
| 1) | AFS1232 | Airwash Handle | Handles and Locks | 1 | No |
| 1) | AFS001 | Grate Bar | Grate Bar | 1 | No |
| 1) | AFS1273 | Ash Pan | Ash Pan | 1 | No |
| 1) | AFGS064 | Hot Plate 4 Inch For Gas | Hot Plate | 1 | No |
| 1) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 1) | AFS150A | Damper Flap 5 Inch With Handle | Spigot | 1 | No |
| 1) | AFS1095 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS009A | 4 Inch Flue Spigot | Spigot | 1 | No |
| 1) | AFS151A | Spigot 5 Inch Complete With Damper Flap And Handle | Accessories | 1 | No |
| 1) | AFS1096 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS009B | 4 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | AFS204 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | AFS1097 | Airwash Assembly | Air Inlet | 1 | No |
| 1) | AFS047 | Hinge Kit | Hinge | 1 | No |
| 1) | AFS205 | Handle (kooler To Touch) | Handles and Locks | 1 | No |
