A Flat Wood

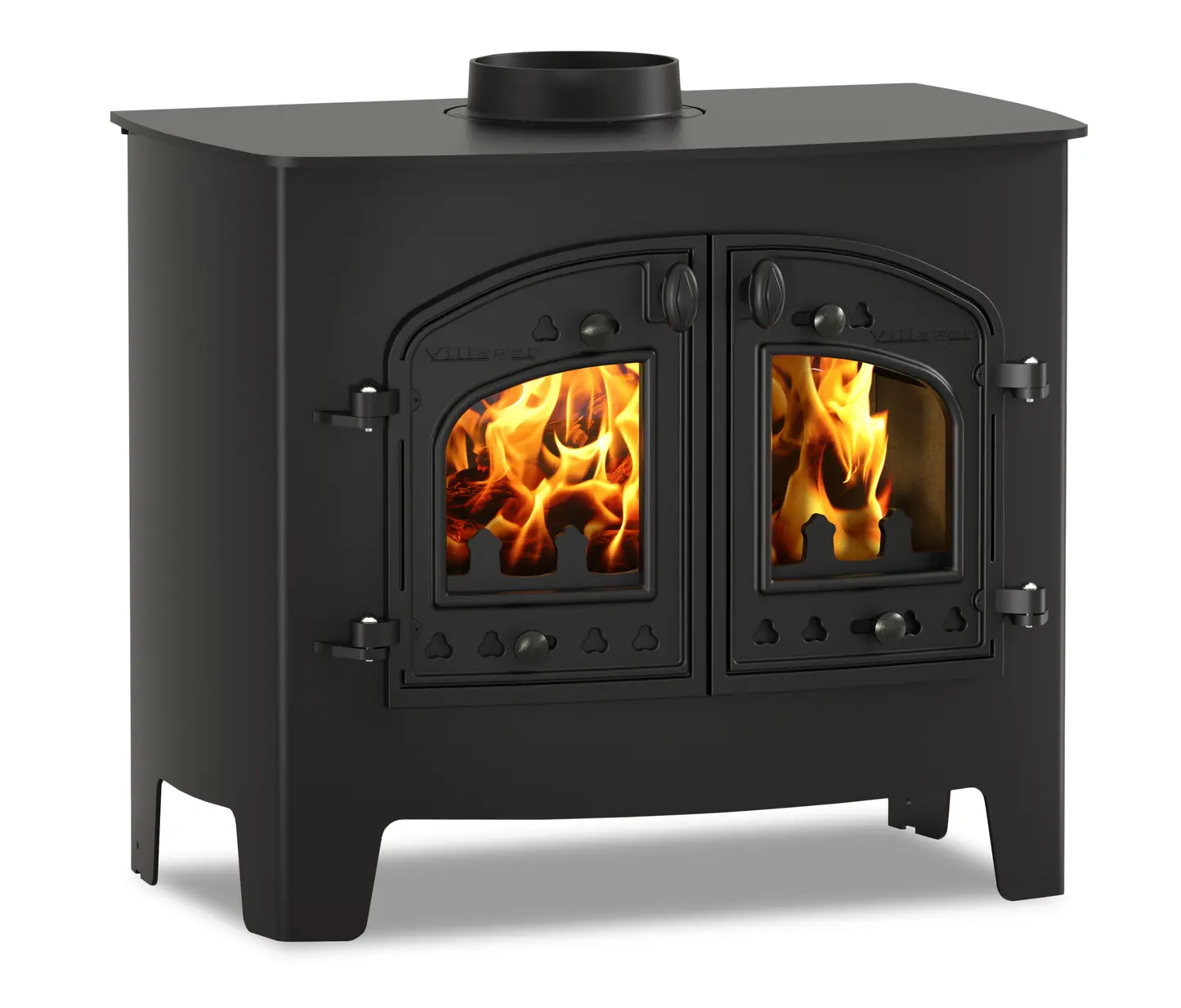

Image of Villager A Flat Wood stove

[AFW-S3] A Flat Wood (A Flat) technical information

Stove model code: AFW-S3

Stove model production status: Discontinued

Information last updated : 08/11/2022


TitleDocument typeBK number / revisionDocument date
A Flat WoodDeclaration of Performance--


Height (mm):595
Width (mm):699
Depth (mm):475
Height (from top to centre of rear flue) (mm):468
Height of low canopy (mm):209
Height of high canopy (mm):339
Height of stand (mm):200
Depth (from back to centre of top flue) (mm):135
Flue diameter (mm):152
Weight - when packed (kg):85
Ideal log length (mm):450

Distances to combustibles

Min. combustible distance to rear (mm):1000
Min. combustible distance to sides (mm):1000
Min. combustible distance above (mm):457
Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance.


Ecodesign Ready:No
Model Series / Generation:3
Wet or Dry stove:Dry
Burns wood fuel:Yes
Burns solid smokeless fuel:No
Gas stove:No
Suitable for Smoke Control Areas:No
Stove guarantee:Lifetime
Suitable for a 12mm constructional hearth:No
Suitable for direct air installation:No
Stove body type:Freestanding

Output - Wood fuel

Output - wood (kW):14.4
Min. output - wood (kW):2.5
Max. output - wood (kW):16
Nett Efficiency - wood (%):75.0
Mean CO Emission - wood (%):0.79

Output - CE Test Figures

CE rated nominal output kW:14.4
CE rated min output kW:2.5
CE rated max output kW:16.0
CE rated under hearth temperature (deg.C):120.0

Boiler Tappings

Boiler Tapping Measurement A (mm):350
Boiler Tapping Measurement B (mm):489
Boiler Tapping Measurement C (mm):178

Parts list

 CodeNameTypeQuantityOptional Extra?
1)AFS1405Airwash Knob Handles and Locks4No
2)VFS167Top Slider Plate Air Inlet2No
3)VFS165Bottom Slider Plate Air Inlet2No
4)VFS033Fire Door Complete (right) Door1No
5)VFS072Glass And Gasket Glass and related parts2No
6)AFS0116 Inch Flue Spigot Spigot1No
7)AFS0126 Inch Hot Plate Hot Plate1No
8)AFS2905Throat Plate Throat Plate1No
9)VFS029Liner Liner17No
10)VFS024Liner Liner2No
11)VFS121Log Retainer Fuel Retainer1No
12)VFS128Operating Tool (4mm) Operating Tool1No
13)VFS111Hinge Pin 1.25 Inch Hinge4No
14)VFS045Handle Handles and Locks1No
15)VFS171Fire Door Latch Assembly Handles and Locks1No
16)VFS032Fire Door Complete (left) Door1No
17)ARA010Arada Hot Glove Arada Brand Accessories1No
18)AFS2705Self Levelling Feet Feet2No
19)VFS206Glass Clip Complete With Nut (pack Of 4) Glass and related parts1No
20)ARA013Arada Rope Kit 1 Arada Brand Accessories1No
2)AOCV018Add On Canopy Low For Afw-s3 Canopy1Yes
3)AOCV019Add On Canopy High For Afw-s3 Canopy1Yes
4)AIBV001Add In Boiler - 4.7kw Add In Boiler1Yes
5)VFS095Grate A Complete Mk1 Accessories1Yes
