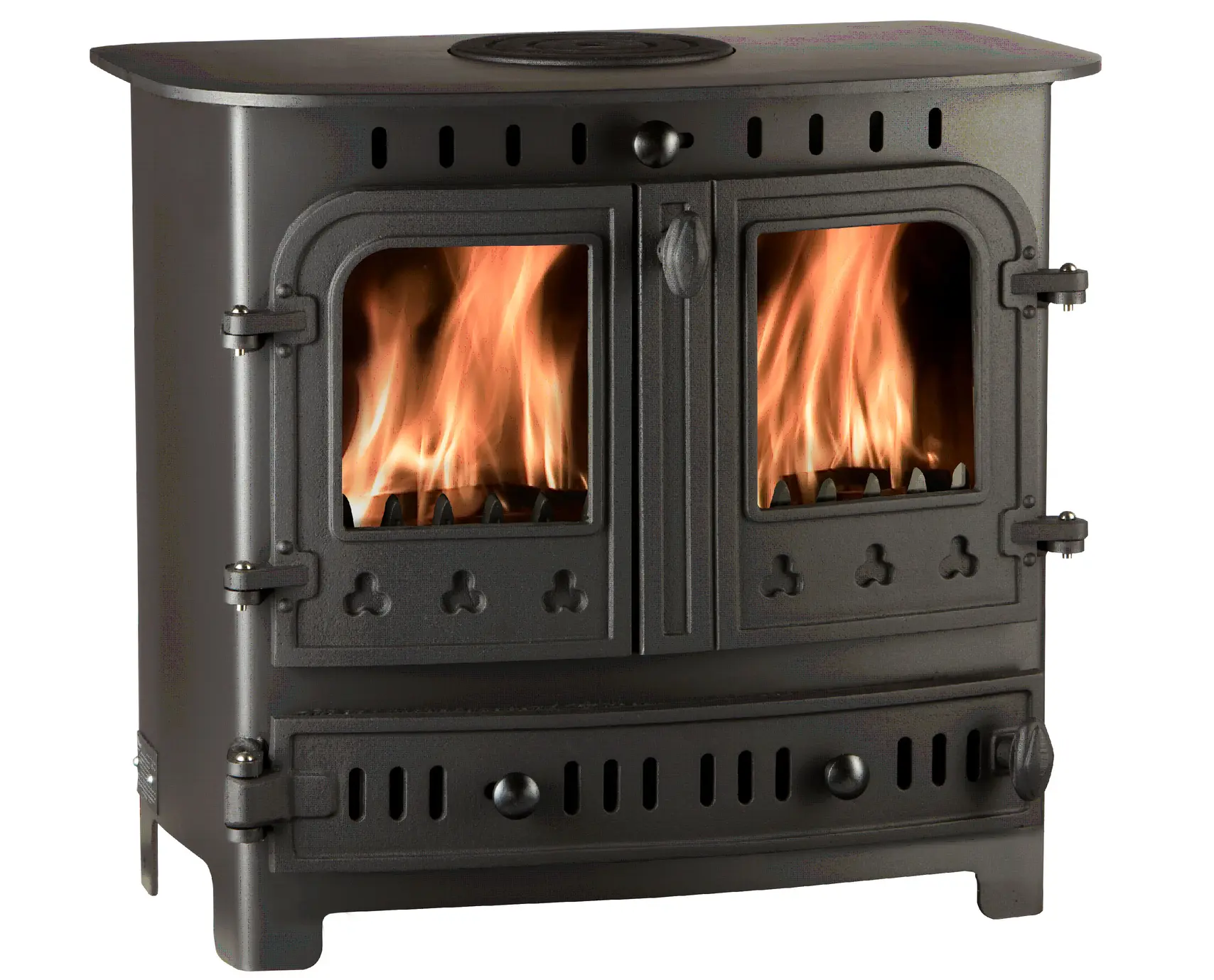

Bayswater Flat Multifuel Series 2

[BAYSFM-S2] Bayswater Flat Multifuel Series 2 (Bayswater Flat) technical information
Stove model code: BAYSFM-S2
Stove model production status: Discontinued
First produced: October 2011
Last produced: March 2012
Information last updated : 04/12/2025
Documentation
| Title | Document type | BK number / revision | Document date |
| Bayswater / Chelsea Grate Fitting Instructions | Component Installation Guide | BK551 / rev1 | 01-07-2014 |
Dimensions
| Height (mm): | 540 |
| Width (mm): | 601 |
| Depth (mm): | 360 |
| Height (from top to centre of rear flue) (mm): | 425 |
| Depth (from back to centre of top flue) (mm): | 137 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 80 |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
Output - Wood fuel
| Output - wood (kW): | 6 |
| Min. output - wood (kW): | 6 |
| Max. output - wood (kW): | 7 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | VFS034 | Fire Door Complete (left) | Door | 1 | No |
| 1) | VFS029 | Liner | Liner | 1 | No |
| 1) | ARA013 | Arada Rope Kit 1 | Arada Brand Accessories | 1 | No |
| 1) | VFS049 | Fire Door Complete | Door | 1 | No |
| 1) | VFS035 | Fire Door Complete (right) | Door | 1 | No |
| 1) | VFS069 | Glass And Gasket (pair) | Glass and related parts | 1 | No |
| 1) | VFS062 | Gasket | Miscellaneous | 1 | No |
| 1) | VFS072 | Glass And Gasket | Glass and related parts | 1 | No |
| 1) | VFS122 | Log Retainer | Fuel Retainer | 1 | No |
| 1) | VFS081 | Glass | Glass and related parts | 1 | No |
| 1) | VFS009A | Baffle Plate | Throat Plate | 1 | No |
| 1) | VFS105 | Grate | Grate Bar | 1 | No |
| 1) | VFS180 | Ash Pan | Ash Pan | 1 | No |
| 1) | VFS139 | Rocker Arm | Comb and Riddle Pull | 1 | No |
| 1) | AOCV016 | Add On Canopy High For Baysfm-s2 | Canopy | 1 | No |
| 1) | AP502 | Ash Pan | Ash Pan | 1 | No |
| 1) | VFS152 | Rope | Door Rope | 1 | No |
| 1) | AOCV017 | Add On Canopy Low For Baysfm-s2 | Canopy | 1 | No |
| 1) | VFS001 | Ashpit Door | Door | 1 | No |
| 1) | VFS171 | Fire Door Latch Assembly | Handles and Locks | 1 | No |
| 1) | VFS212 | Gasket (pack Of 2) | Miscellaneous | 1 | No |
| 1) | VFS008 | Throat Plate | Throat Plate | 1 | No |
| 1) | VFS213 | Gasket (pack Of 50) | Miscellaneous | 1 | No |
| 1) | VFS009 | Baffle Plate | Throat Plate | 1 | No |
| 1) | VFS017 | Throat Plate | Throat Plate | 1 | No |
| 1) | ARA013 | Arada Rope Kit 1 | Arada Brand Accessories | 1 | No |
| 2) | VFS174 | Ashpit Door Latch Assembly | Handles and Locks | 1 | No |
