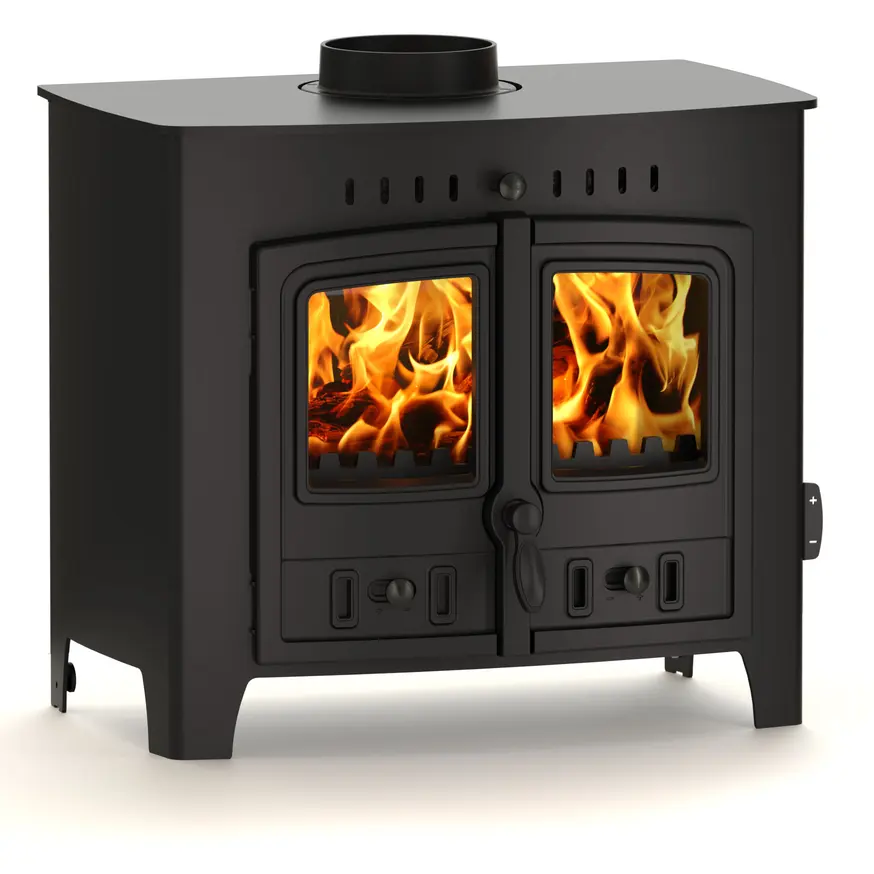

Camborne Deluxe Large Series 2
[CAMDLLM-G2] Camborne Deluxe Large Series 2 (Camborne Deluxe Large) technical information
Stove model code: CAMDLLM-G2
Stove model production status: Discontinued
First produced: December 2012
Last produced: December 2012
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 552 |
| Width (mm): | 672 |
| Depth (mm): | 467 |
| Height (from top to centre of rear flue) (mm): | 434 |
| Height of low canopy (mm): | 210 |
| Height of high canopy (mm): | 325 |
| Height of stand (mm): | 200 |
| Depth (from back to centre of top flue) (mm): | 141 |
| Flue diameter (mm): | 152 |
| Weight - when packed (kg): | 113 |
| Ideal log length (mm): | 380 |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Min. output - wood (kW): | 2.5 |
| Max. output - wood (kW): | 11 |
| Mean CO Emission - wood (%): | 0.00 |
Output - CE Test Figures
| CE rated nominal output kW: | 0.0 |
| CE rated min output kW: | 0.0 |
| CE rated max output kW: | 0.0 |
Boiler Tappings
| Boiler Tapping Measurement A (mm): | 249 |
| Boiler Tapping Measurement B (mm): | 505 |
| Boiler Tapping Measurement C (mm): | 349 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 3) | AOCLL | Add On Low Canopy | Canopy | 1 | Yes |
| 4) | AOCLH | Add On High Canopy | Canopy | 1 | Yes |
| 5) | AIB10 | Add In Boiler - 3.4kw | Add In Boiler | 1 | Yes |
