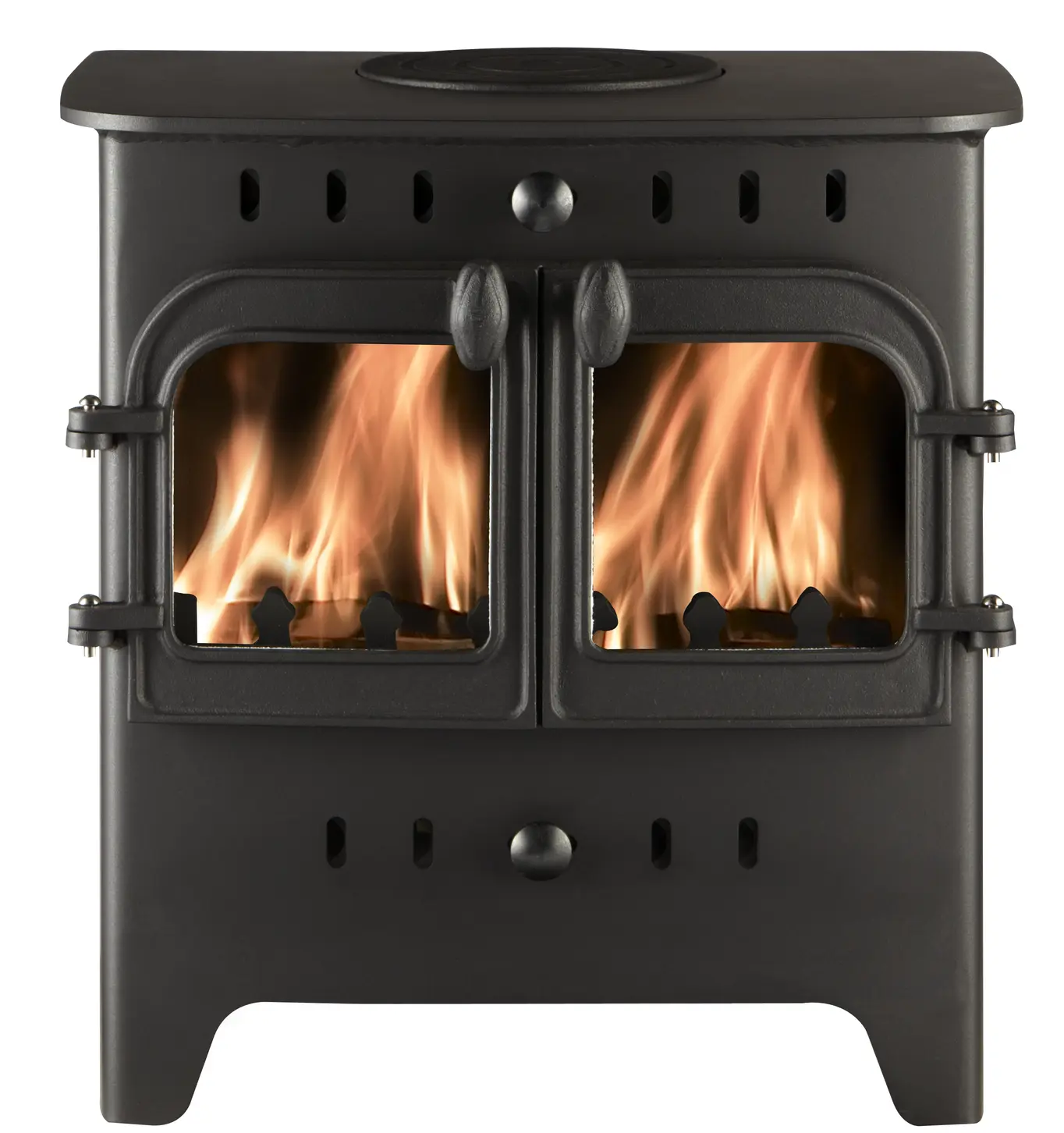

C Flat Wood Duo

[CFWDUO-S2] C Flat Wood Duo (C Flat) technical information

Stove model code: CFWDUO-S2

Stove model production status: Discontinued

Information last updated : 08/11/2022


TitleDocument typeBK number / revisionDocument date
C Flat SoloDeclaration of Performance--


Height (mm):495
Width (mm):457
Depth (mm):334
Height (from top to centre of rear flue) (mm):395
Height of low canopy (mm):143.5
Height of high canopy (mm):236
Height of stand (mm):200
Depth (from back to centre of top flue) (mm):102
Flue diameter (mm):127
Weight - when packed (kg):60
Ideal log length (mm):325

Distances to combustibles

Min. combustible distance to rear (mm):800
Min. combustible distance to sides (mm):750
Min. combustible distance above (mm):381
Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance.


Ecodesign Ready:No
Model Series / Generation:2
Wet or Dry stove:Dry
Burns wood fuel:Yes
Burns solid smokeless fuel:No
Gas stove:No
Suitable for Smoke Control Areas:No
Stove guarantee:Lifetime
Suitable for a 12mm constructional hearth:Yes
Suitable for direct air installation:No
Stove body type:Freestanding

Output - Wood fuel

Output - wood (kW):5
Min. output - wood (kW):1
Max. output - wood (kW):6.5
Nett Efficiency - wood (%):79
Mean CO Emission - wood (%):0.49

Output - CE Test Figures

CE rated nominal output kW:5.4
CE rated min output kW:1.0
CE rated max output kW:6.5
CE rated under hearth temperature (deg.C):51.5

Boiler Tappings

Boiler Tapping Measurement A (mm):412
Boiler Tapping Measurement B (mm):252
Boiler Tapping Measurement C (mm):208

Parts list

 CodeNameTypeQuantityOptional Extra?
1)VFS112Hinge Pin 1 Inch Hinge4No
2)VFS038Complete Fire Door (left) Door1No
3)VFS172Door Latch Assembly Handles and Locks1No
4)ARA013Arada Rope Kit 1 Arada Brand Accessories1No
5)VFS073Glass And Gasket Glass and related parts2No
6)AFS0095 Inch Flue Spigot Spigot1No
7)AFS0105 Inch Hot Plate Hot Plate1No
8)VFS012Throat Plate Throat Plate1No
9)VFS029Liner Liner10No
10)AFS1405Airwash Knob Handles and Locks2No
11)VFS185Airwash Slider Air Inlet1No
12)VFS177Log Retainer Fuel Retainer1No
13)VFS128Operating Tool (4mm) Operating Tool1No
14)VFS039Fire Door Complete (right) Door1No
15)VFS045Handle Handles and Locks2No
16)VFS206Glass Clip Complete With Nut (pack Of 4) Glass and related parts1No
17)VFS183Leg Adjustment Kit Feet2No
18)ARA010Arada Hot Glove Arada Brand Accessories1No
2)AOCV012Add On Canopy Low Canopy1Yes
3)AOCV013Add On Canopy High Canopy1Yes
4)AIBV006Boiler Stainless For 15,000 Btu Add In Boiler1Yes
