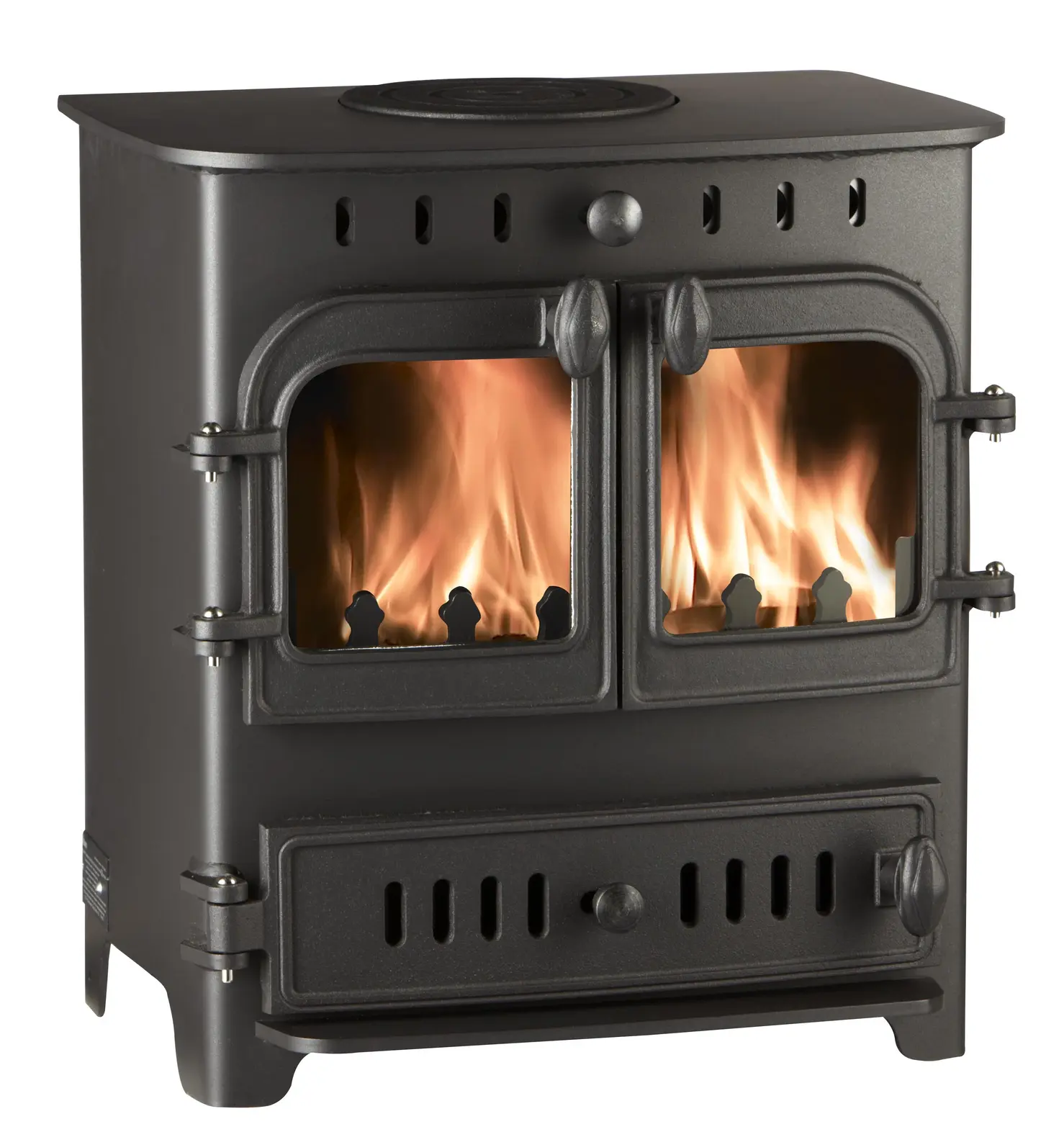

Chelsea Duo Multifuel Series 3
[CHELSEADUOM-S3] Chelsea Duo Multifuel Series 3 (Chelsea Duo) technical information
Stove model code: CHELSEADUOM-S3
Stove model production status: Discontinued
First produced: August 2011
Last produced: October 2011
Information last updated : 04/12/2025
Documentation
| Title | Document type | BK number / revision | Document date |
| Bayswater / Chelsea Grate Fitting Instructions | Component Installation Guide | BK551 / rev1 | 01-07-2014 |
Dimensions
| Flue diameter (mm): | 127 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 700 |
| Min. combustible distance to sides (mm): | 500 |
| Min. combustible distance above (mm): | 380 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 3 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | No |
| Burns solid smokeless fuel: | No |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | VFS038 | Complete Fire Door (left) | Door | 1 | No |
| 2) | VFS039 | Fire Door Complete (right) | Door | 1 | No |
| 3) | VFS172 | Door Latch Assembly | Handles and Locks | 1 | No |
| 4) | VFS045 | Handle | Handles and Locks | 1 | No |
| 5) | ARA013 | Arada Rope Kit 1 | Arada Brand Accessories | 1 | No |
| 6) | VFS070 | Glass And Gasket (pair) | Glass and related parts | 1 | No |
| 7) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 8) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 9) | VFS176 | Throat Plate | Throat Plate | 1 | No |
| 10) | AFS113 | Fire Brick Standard | Liner | 5 | No |
| 11) | VFS112 | Hinge Pin 1 Inch | Hinge | 1 | No |
| 12) | VFS138 | Riddle Bar | Comb and Riddle Pull | 4 | No |
| 13) | AFS2940 | Grate | Grate Bar | 1 | No |
| 14) | VFS142 | Rocker | Comb and Riddle Pull | 1 | No |
| 15) | AP504 | Ash Pan | Ash Pan | 1 | No |
| 16) | VFS128 | Operating Tool (4mm) | Operating Tool | 1 | No |
| 17) | VFS174 | Ashpit Door Latch Assembly | Handles and Locks | 1 | No |
| 18) | VFS003 | Ashpit Door | Door | 1 | No |
| 19) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 20) | VFS163 | Ashpit Door Slider Plate | Air Inlet | 1 | No |
| 21) | VFS177 | Log Retainer | Fuel Retainer | 1 | No |
