Ecoboiler 12 Cassette G2

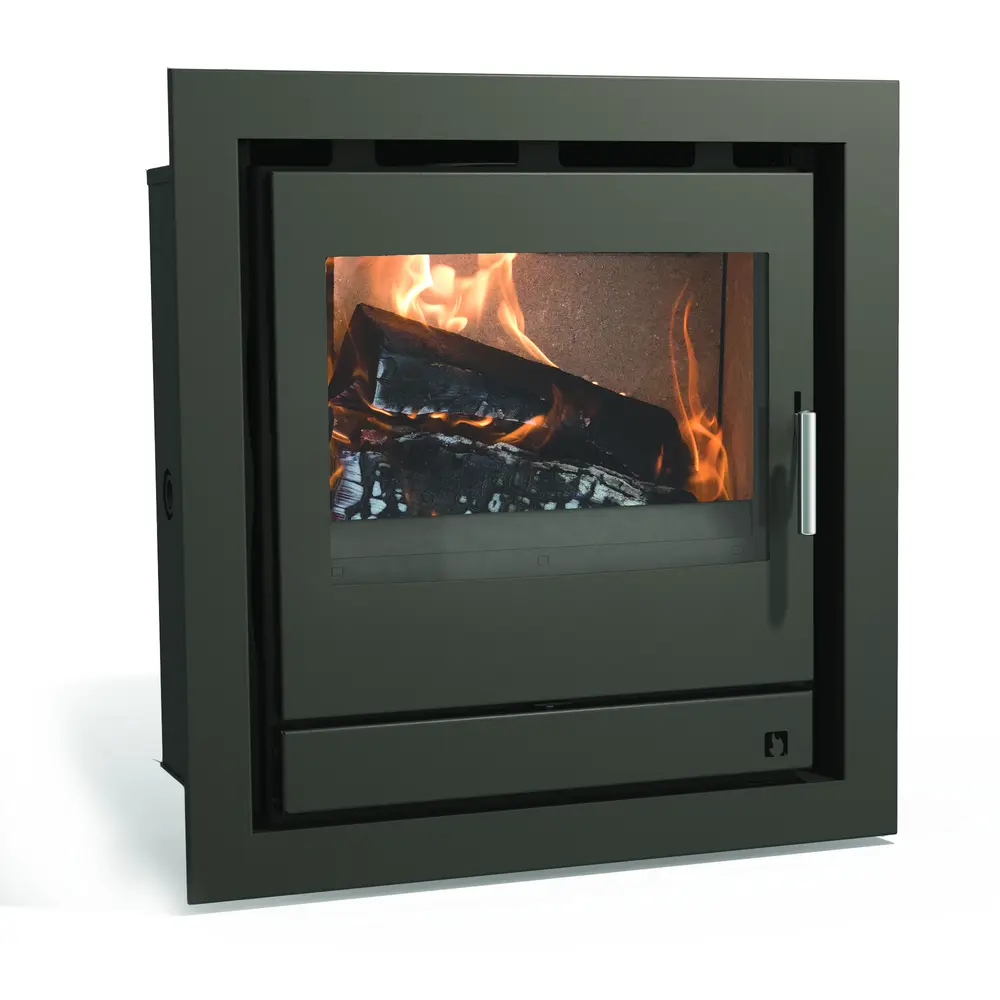

[EB12-CASSETTE-G2] Ecoboiler 12 Cassette G2 (Ecoboiler 12 Cassette) technical information
Stove model code: EB12-CASSETTE-G2
Stove model production status: Discontinued
First produced: February 2019
Last produced: April 2021
Information last updated : 12/03/2024
Documentation
| Title | Document type | BK number / revision | Document date |
| Ecoboiler Cassette | Product Fiche / Tech. Spec. | - | 28-06-2019 |
| Ecoboiler Cassette Stove Installation Guide | Installation Guide | BK680 / rev5 | 26-01-2023 |
| Ecoboiler Cassette stove User Guide | User Guide | BK675 / rev3 | 01-07-2017 |
| Ecoboiler HE 12 Inset / 16 Inset / Wood / Cassette | Declaration of Performance | - | - |
| Guide to Wood Burning | New User Guides | - | - |
| Quick Start Guide | New User Guides | - | - |
Dimensions
| Height (mm): | 631 |
| Width (mm): | 606 |
| Depth (mm): | 410 |
| Depth into fireplace (mm): | 377 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 100 |
| Min. combustible distance to sides (mm): | 100 |
| Min. combustible distance above (mm): | 250 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Wet |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Seven-year |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | Yes |
| Stove body type: | Cassette |
Output - Wood fuel
| Output - wood (kW): | 12 |
| Output to room - wood - boiler stove (kW): | 5.3 |
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 13.3 |
| Output to water - wood - boiler stove (kW): | 8 |
| Nett Efficiency - wood (%): | 74.6 |
| Mean CO Emission - wood (%): | 0.54 |
| Mean NOx Emission - wood (%): | 64.0 |
| Mean Flue Gas Temperature - wood (deg. C): | 364 |
| Flue Mass Gas Flow - wood (g/sec): | 9.9 |
Output - Solid smokeless fuel
| Output - solid (kW): | 16.6 |
| Output to water - solid - boiler stove (kW): | 12.3 |
| Nett Efficiency - solid (%): | 74.50 |
| Mean Flue Gas Temperature - solid (deg. C): | 473 |
| Flue Mass Gas Flow - solid (g/sec): | 10.2 |
Direct air information
| Direct Air Connection fixed or optional: | Fixed |
| Direct Air Connection Underneath Position distance from rear (mm): | 147 |
| Direct Air Connection Positioned Dead Centre?: | N |
| Direct Air Connection diagram type: | B |
Boiler Tappings
| Boiler Tapping Measurement F (mm): | 137 |
| Boiler Tapping Measurement G (mm): | 62 |
| Boiler Tapping Measurement I (mm): | 288 |
| Boiler Tapping Measurement K (mm): | 280 |
| Max Operating Pressure: | 3 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS3895 | Handle Assembly (stainless Steel Handle) | Handles and Locks | 1 | No |
| 2) | AFS2310 | Stud Catch Plate | Handles and Locks | 1 | No |
| 3) | AFS4220 | Complete Fire Door | Door | 1 | No |
| 4) | AFS4225 | Glass Kit | Glass and related parts | 1 | No |
| 5) | VFS066 | Gasket | Miscellaneous | 1 | No |
| 6) | ARA019 | Arada Rope Kit 3 | Door Rope | 1 | No |
| 7) | AFS2460 | Hinge (single - Right Hand) | Hinge | 3 | No |
| 8) | AFS4230 | Air Duct Heat Shield | Air Inlet | 1 | No |
| 9) | AFS3405 | Air Slider | Air Inlet | 1 | No |
| 10) | AFS4235 | Boiler Air Box | Air Inlet | 1 | No |
| 11) | AFS4240 | Thermostat | Miscellaneous | 1 | No |
| 12) | AFS4245 | Direct Air Adaptor | Air Inlet | 1 | No |
| 13) | AFS4250 | Throat Plate | Throat Plate | 1 | No |
| 14) | AFS4255 | Grate Bar Support | Grate Bar Support | 1 | No |
| 15) | AFS001 | Grate Bar | Grate Bar | 12 | No |
| 16) | AFS4260 | Comb And Riddle Pull | Comb and Riddle Pull | 1 | No |
| 17) | AFS4265 | Controls Door Latch | Handles and Locks | 1 | No |
| 18) | AFS4270 | Hinge Set | Hinge | 1 | No |
| 19) | AFS4275 | Thermostat Knob | 1 | No | |
| 20) | AFS4280 | Control Door | Miscellaneous | 1 | No |
| 21) | AFS2825 | Ashpan | Ash Pan | 1 | No |
| 22) | AFS4285 | Ash Pan Heat Shield | Miscellaneous | 1 | No |
| 23) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 24) | AFS2540 | Fuel Retainer | Fuel Retainer | 1 | No |
| 25) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 2) | TRIM037 | Trim For 'cassette Boiler' 3 Sided - Standard (30mm) | Trim | 1 | Yes |
| 3) | TRIM038 | Trim For 'cassette Boiler' 4 Sided - Standard (30mm) | Door Rope | 1 | Yes |
| 4) | TRIM039 | Trim For 'cassette Boiler' 3 Sided - Wide (60mm) | Trim | 1 | Yes |
| 5) | TRIM040 | Trim For 'cassette Boiler' 4 Sided - Wide (60mm) | Trim | 1 | Yes |
