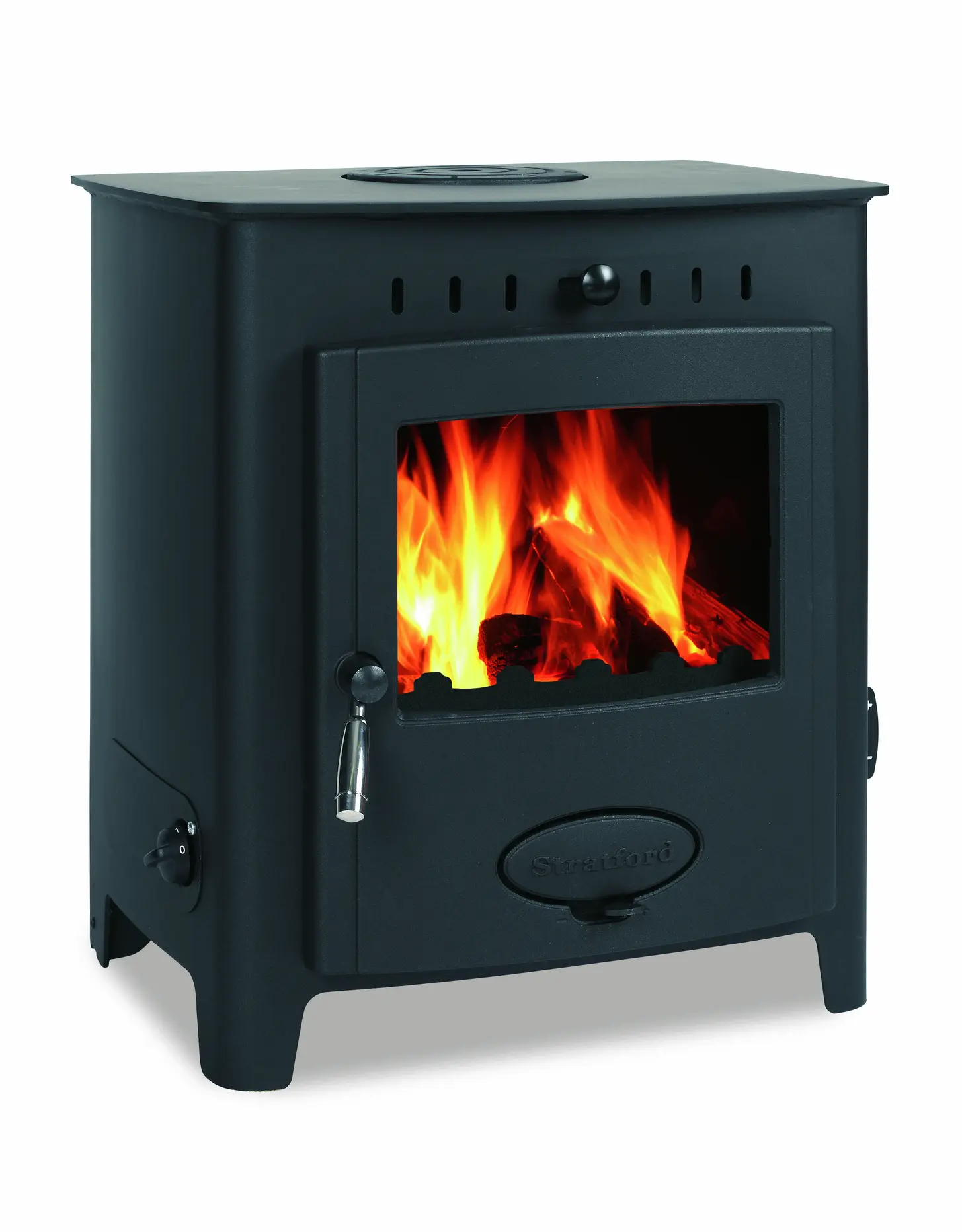

Ecoboiler 12HE
[EB12HE] Ecoboiler 12HE (Ecoboiler 12) technical information
Stove model code: EB12HE
Stove model production status: Discontinued
First produced: September 2011
Last produced: October 2012
Information last updated : 04/12/2025
Documentation
| Title | Document type | BK number / revision | Document date |
| Boiler Stove Installation Guide | Installation Guide | BK555 / rev13 | 26-01-2023 |
| Ecoboiler Stove User Guide | User Guide | BK560 / rev10 | 01-04-2016 |
Dimensions
| Height (mm): | 570 |
| Width (mm): | 466 |
| Depth (mm): | 417 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 150 |
| Min. combustible distance to sides (mm): | 130 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Wet |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 12 |
| Output to water - wood - boiler stove (kW): | 11 |
| Output to water - wood - boiler stove (BTU): | 37554 |
| Nett Efficiency - wood (%): | 71.5 |
Output - Solid smokeless fuel
| Output to water - solid - boiler stove (kW): | 12 |
| Output to water - solid - boiler stove (BTU): | 40968 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1379 | Thermostat Knob | Boiler Thermostat | 1 | No |
| 2) | AFS1321 | Thermostat Access Panel | Miscellaneous | 1 | No |
| 3) | AFS1564 | Thermostat | Boiler Thermostat | 1 | No |
| 4) | AFS1570 | Thermostat Mounting Bracket | Boiler Thermostat | 1 | No |
| 5) | AFS1565 | Damper Plate | Throat Plate | 1 | No |
| 6) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 7) | AFS1484 | Glass Kit | Glass and related parts | 1 | No |
| 8) | AFS1021 | Door Rope Kit | Door Rope | 1 | No |
| 9) | AFS1562 | Complete Fire Door | Door | 1 | No |
| 10) | AFS1385 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 11) | AFS1369 | Primary Air Controls | Air Inlet | 1 | No |
| 12) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 13) | AFS1380 | Fire Bed Surround | Grate Bar | 3 | No |
| 14) | AFS001 | Grate Bar | Grate Bar | 9 | No |
| 15) | AFS1567 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 16) | AFS1394 | Ash Pan | Ash Pan | 1 | No |
| 17) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 18) | AFS2460 | Hinge (single - Right Hand) | Hinge | 2 | No |
