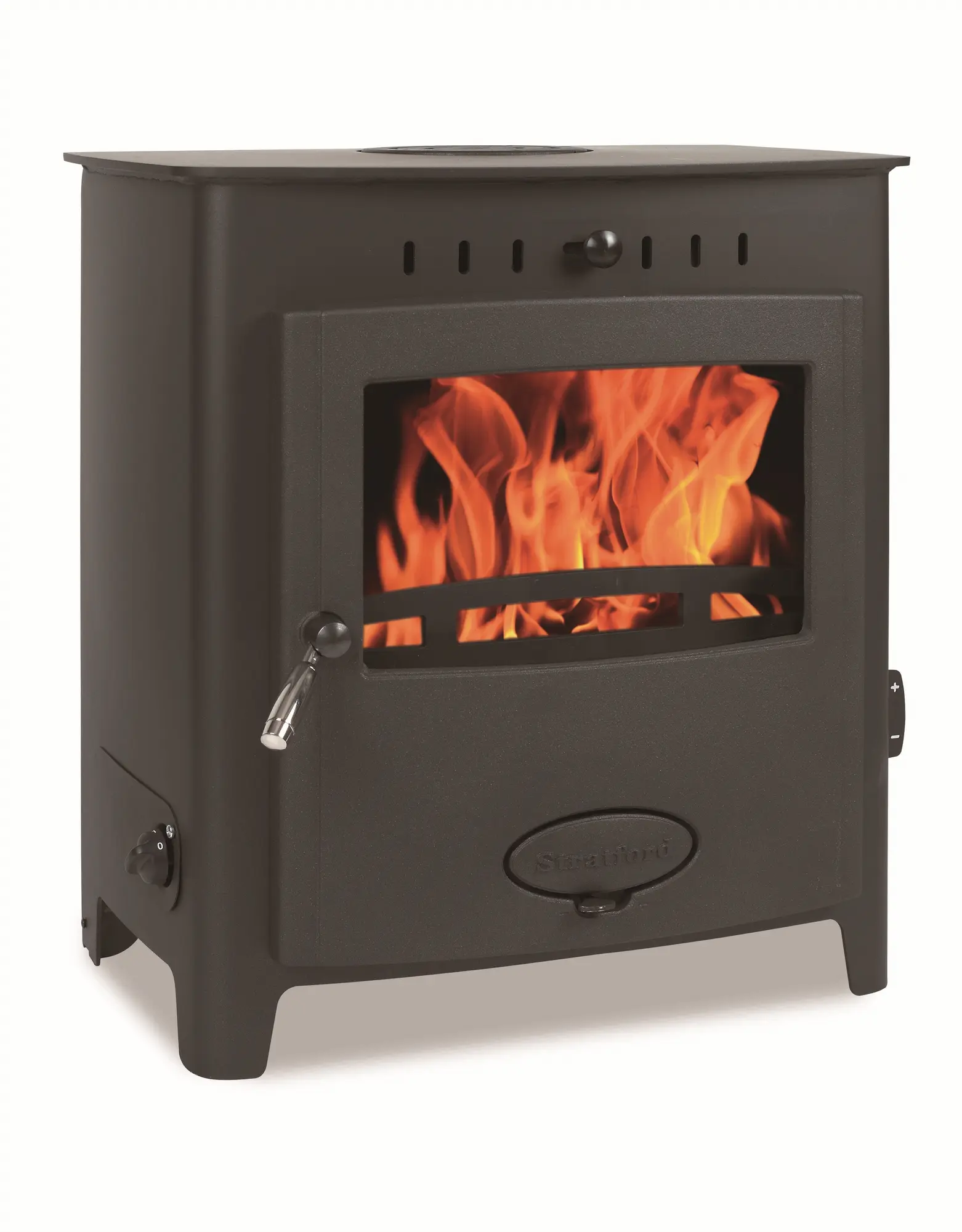

Ecoboiler 18HE
[EB18HE] Ecoboiler 18HE (Ecoboiler 18) technical information
Stove model code: EB18HE
Stove model production status: Discontinued
First produced: July 2011
Last produced: March 2012
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 659 |
| Width (mm): | 615 |
| Depth (mm): | 402 |
| Height (from top to centre of rear flue) (mm): | 501 |
| Height of stand (mm): | 125 |
| Depth (from back to centre of top flue) (mm): | 147 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 127 |
| Ideal log length (mm): | 405 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 250 |
| Min. combustible distance to sides (mm): | 240 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Wet |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 13.5 |
| Output to room - wood - boiler stove (kW): | 9 |
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 18 |
| Output to water - wood - boiler stove (kW): | 13.5 |
| Nett Efficiency - wood (%): | 72.83 |
Output - Solid smokeless fuel
| Output - solid (kW): | 17.92 |
| Output to water - solid - boiler stove (kW): | 17.5 |
Boiler Tappings
| Boiler Tapping Measurement A (mm): | 384 |
| Boiler Tapping Measurement B (mm): | 361 |
| Boiler Tapping Measurement C (mm): | 270 |
| Boiler Tapping Measurement D (mm): | 481 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1321 | Thermostat Access Panel | Miscellaneous | 1 | No |
| 1) | AFS001/OLD | (obsolete) Grate Bar *old Style* (ngb1b) | Grate Bar | 1 | No |
| 1) | AFS2460 | Hinge (single - Right Hand) | Hinge | 1 | No |
| 1) | AFS1332 | Grate Bar Support | Grate Bar Support | 1 | No |
| 1) | AFS1021 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS1334 | Lower Feds Plate Seb20, Eb16he , Eb18he | Throat Plate | 1 | No |
| 1) | SIGN9-TRACEL | Tracery Lattice - Sign9m | Accessories | 1 | No |
| 1) | AFS1365 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS1518 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS1369 | Primary Air Controls | Air Inlet | 1 | No |
| 1) | AFS1552 | (obsolete) Operating Manual For F/s Ecoboilers 7/9/12/16 | Miscellaneous | 1 | No |
| 1) | AFS1380 | Fire Bed Surround | Grate Bar | 1 | No |
| 1) | STAND-18HE | Stand | Stand | 1 | No |
| 1) | AFS1381 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 1) | AFS1560 | Fuel Retainer | Fuel Retainer | 1 | No |
| 1) | AFS001 | Grate Bar | Grate Bar | 1 | No |
| 1) | AFS1385 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | AFS1563 | Fire Door | Door | 1 | No |
| 1) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 1) | AFS1386 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS1564 | Thermostat | Boiler Thermostat | 1 | No |
| 1) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 1) | AFS1565 | Damper Plate | Throat Plate | 1 | No |
| 1) | AFS1279 | Hinge Kit | Hinge | 1 | No |
| 1) | AFS1412 | +/- Bracket With Fixings | Miscellaneous | 1 | No |
| 1) | AFS1570 | Thermostat Mounting Bracket | Boiler Thermostat | 1 | No |
