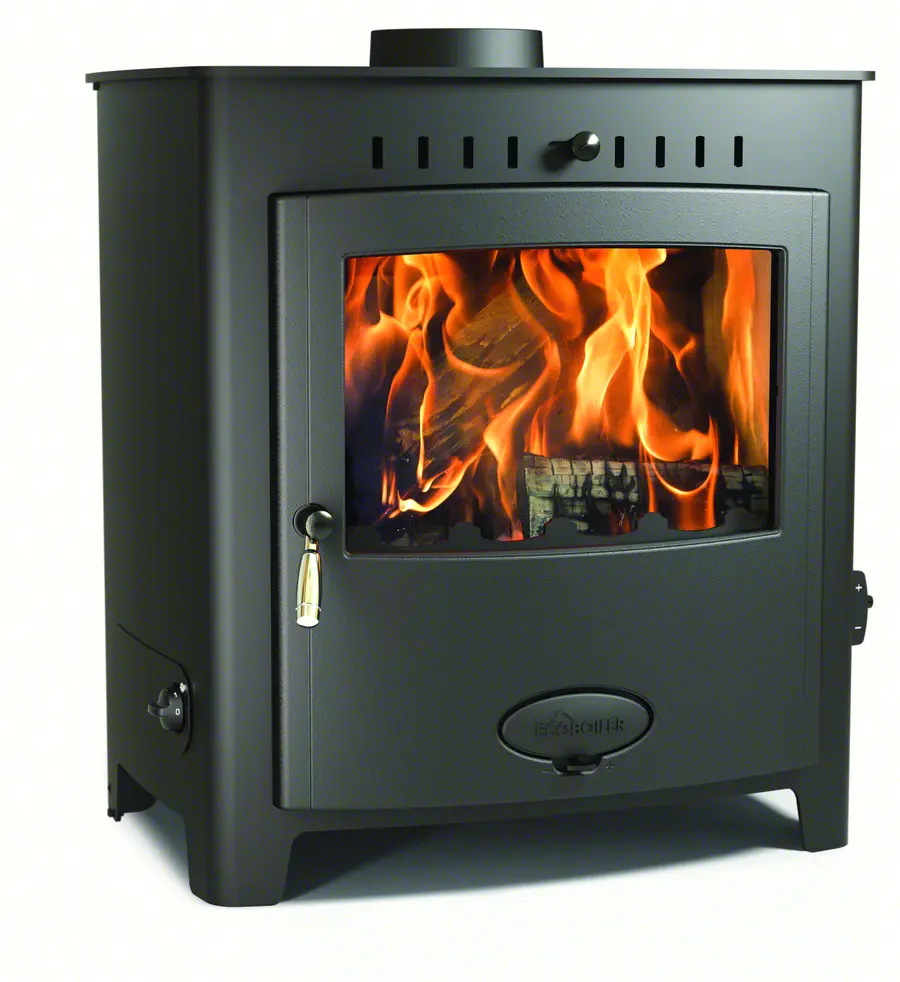

Ecoboiler 25HE G5

[EB25HE-G5] Ecoboiler 25HE G5 (Ecoboiler 25) technical information

Stove model code: EB25HE-G5

Stove model production status: Discontinued

Information last updated : 08/11/2022

Documentation

TitleDocument typeBK number / revisionDocument date
Boiler Stove Installation GuideInstallation GuideBK555 / rev1307-12-2018
EB25HE Throat Plate Fitting GuideComponent Installation Guide-01-02-2014
Ecoboiler 25HEProduct Fiche / Tech. Spec.-28-06-2019
Ecoboiler HE 9 / 12 / 16 / 20 / 25Declaration of Performance--
Ecoboiler Stove User GuideUser GuideBK560 / rev1001-04-2016
Guide to Wood BurningNew User Guides--
Quick Start GuideNew User Guides--

Dimensions

Height (mm):725
Width (mm):678
Depth (mm):498
Height (from top to centre of rear flue) (mm):565
Depth (from back to centre of top flue) (mm):152
Flue diameter (mm):152
Weight - when packed (kg):195
Ideal log length (mm):450

Distances to combustibles

Min. combustible distance to rear (mm):195
Min. combustible distance to sides (mm):180
Min. combustible distance above (mm):456
Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance.

Features

Ecodesign Ready:No
Model Series / Generation:5
Wet or Dry stove:Wet
Burns wood fuel:Yes
Burns solid smokeless fuel:Yes
Gas stove:No
Suitable for Smoke Control Areas:No
Stove guarantee:Seven-year
Suitable for a 12mm constructional hearth:No
Suitable for direct air installation:Yes
Stove body type:Freestanding

Output - Wood fuel

Output - wood (kW):22.5
Output to room - wood - boiler stove (kW):12.7
Min. output - wood (kW):2
Max. output - wood (kW):7
Output to water - wood - boiler stove (kW):21
Output to water - wood - boiler stove (BTU):71694
Nett Efficiency - wood (%):72.4
Mean CO Emission - wood (%):0.77

Output - Solid smokeless fuel

Output to water - solid - boiler stove (kW):25
Output to water - solid - boiler stove (BTU):85350

Direct air information

Direct Air Connection fixed or optional:Fixed
Direct Air Connection Position right to centre distance (mm):85
Direct Air Connection Position floor to centre distance (mm):175
Direct Air Connection Positioned Dead Centre?:N
Direct Air Connection diagram type:A

Boiler Tappings

Boiler Tapping Measurement A (mm):390
Boiler Tapping Measurement B (mm):416
Boiler Tapping Measurement C (mm):280
Boiler Tapping Measurement D (mm):544
Max Operating Pressure:3

Parts list

 CodeNameTypeQuantityOptional Extra?
1)AFS2930Fire Door Door1No
2)ARA019Arada Rope Kit 3 Door Rope1No
3)AFS1361Gasket And Glass Clips Glass and related parts1No
4)AFS1423Glass Kit Glass and related parts1No
5)AFS1010Glass Clips Glass and related parts1No
6)AFS2775Hinge (right Hand) Hinge2No
7)AFS1369Primary Air Controls Air Inlet1No
8)AFS3580Handle (stainless Steel)Handles and Locks1No
9)AFS3585Handle Assembly (stainless Steel Handle)Handles and Locks1No
10)AFS1405Airwash Knob Handles and Locks1No
11)AFS0116 Inch Flue Spigot Spigot1No
12)AFS0126 Inch Hot Plate Hot Plate1No
13)AFS2815Throat Plate Throat Plate1No
14)AFS3375Boiler Shelf Access PlateMiscellaneous1No
15)AFS1380Fire Bed Surround Grate Bar4No
16)AFS1320Grate Bar Support Grate Bar Support1No
17)AFS002Grate Bar Grate Bar13No
18)AFS2820Comb And Extension Comb and Riddle Pull1No
19)ARA010Arada Hot Glove Arada Brand Accessories1No
20)AFS1810Fuel Retainer Fuel Retainer1No
21)AFS052AAsh Pan Ash Pan1No
22)AFS008Operating Tool Operating Tool1No
23)AFS1800Thermostat Mounting Bracket Boiler Thermostat1No
24)AFS2740Thermostat Boiler Thermostat1No
25)AFS2755Thermo Panel Boiler Thermostat1No
26)AFS1379Thermostat Knob Boiler Thermostat1No
27)AFS3510Air Damper PlateMiscellaneous1No
28)AFS4567Roller Catch ComponentsHandles and Locks1No
