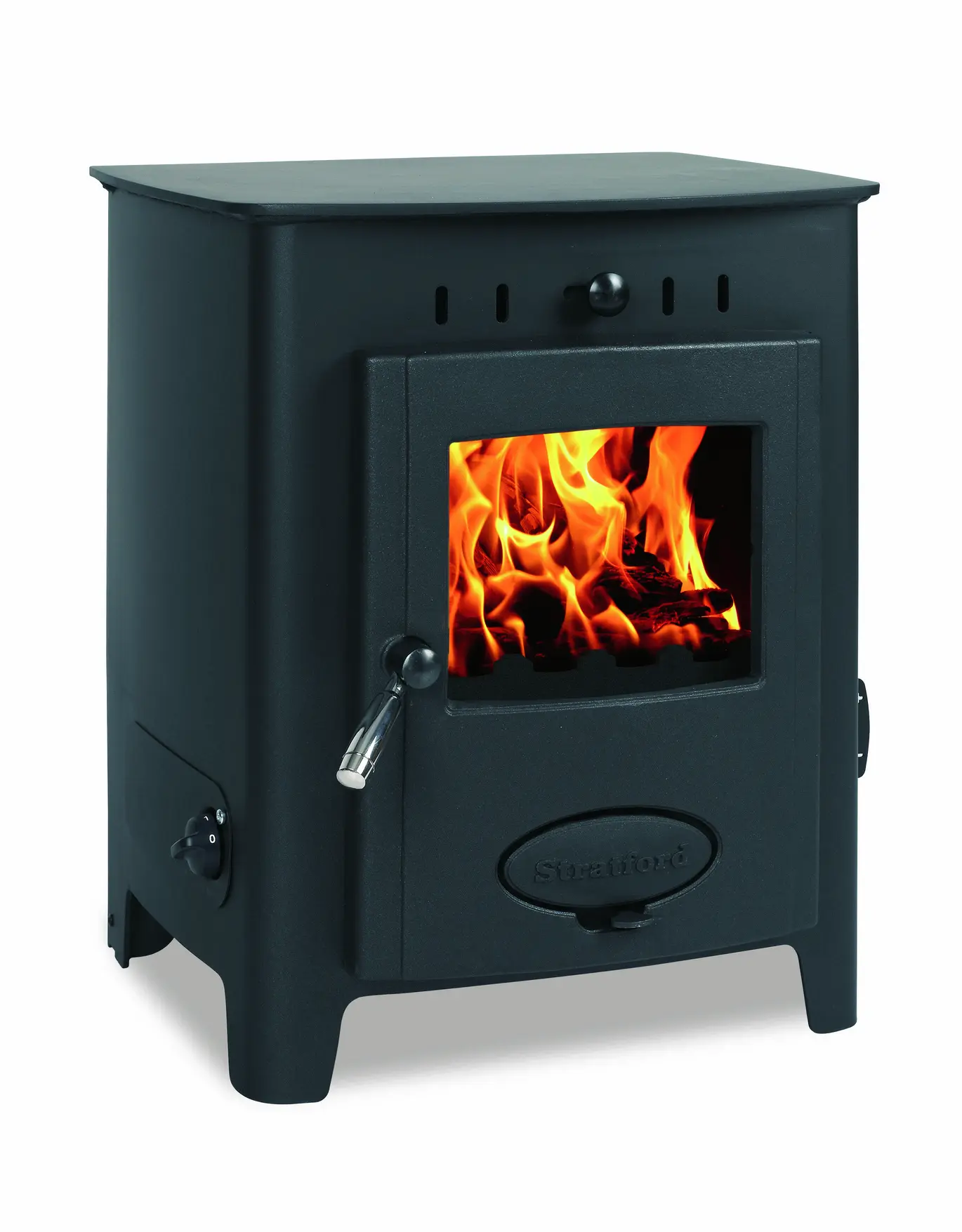

Ecoboiler 7HE

[EB7HE] Ecoboiler 7HE (Ecoboiler 7) technical information

Stove model code: EB7HE

Stove model production status: Discontinued

Information last updated : 08/11/2022

Dimensions

Height (mm):570
Width (mm):466
Depth (mm):417
Height (from top to centre of rear flue) (mm):431
Flue diameter (mm):101

Distances to combustibles

Min. combustible distance to rear (mm):130
Min. combustible distance to sides (mm):110
Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance.

Features

Ecodesign Ready:No
Model Series / Generation:1
Wet or Dry stove:Wet
Burns wood fuel:Yes
Burns solid smokeless fuel:Yes
Gas stove:No
Suitable for Smoke Control Areas:No
Suitable for a 12mm constructional hearth:No
Suitable for direct air installation:No
Stove body type:Freestanding

Output - Wood fuel

Min. output - wood (kW):1
Max. output - wood (kW):7
Output to water - wood - boiler stove (kW):5
Nett Efficiency - wood (%):71.1

Output - Solid smokeless fuel

Output to water - solid - boiler stove (kW):7

Boiler Tappings

Boiler Tapping Measurement A (mm):270
Boiler Tapping Measurement B (mm):288
Boiler Tapping Measurement C (mm):255
Boiler Tapping Measurement D (mm):356

Parts list

 CodeNameTypeQuantityOptional Extra?
3)AFS1135Floor Fixing Kit Accessories1Yes
4)STAND-7-9HEStand Stand1Yes
