Ecoboiler 12 Wood G2

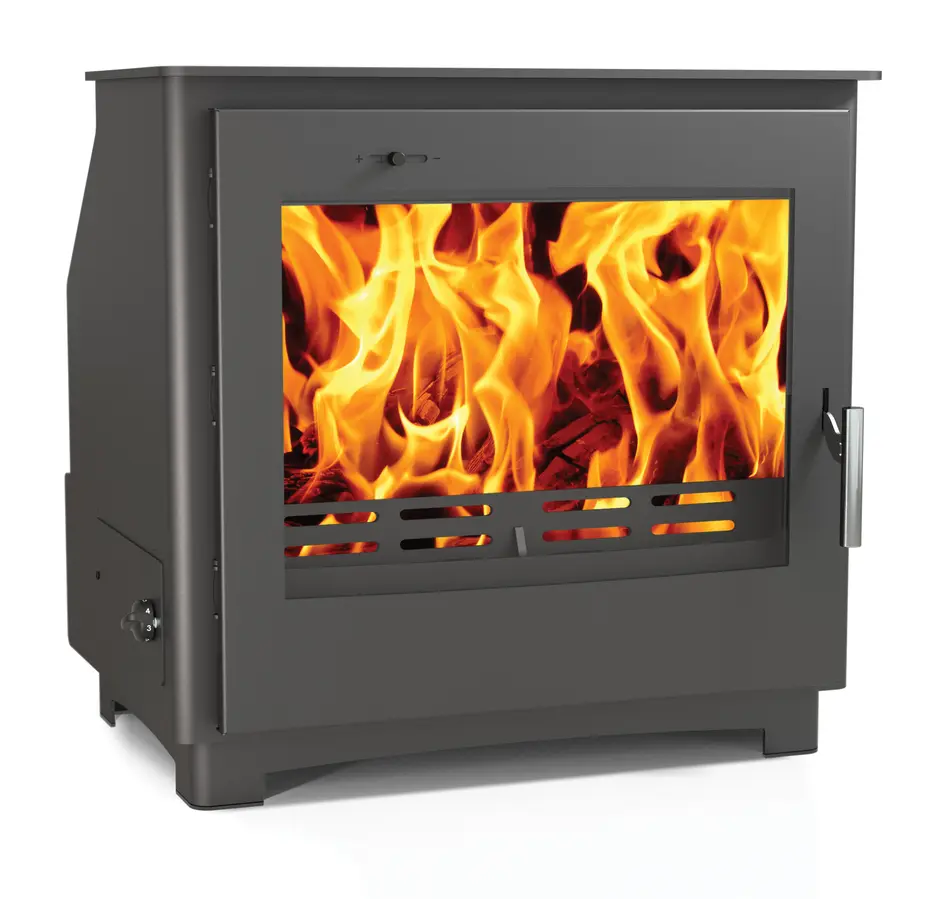

Image of Arada Ecoboiler 12 Wood G2 stove

[EBW12-G2] Ecoboiler 12 Wood G2 (Ecoboiler 12 Wood) technical information

Stove model code: EBW12-G2

Stove model production status: Discontinued

First produced: August 2016

Last produced: December 2021

Information last updated : 26/01/2023


TitleDocument typeBK number / revisionDocument date
Boiler Stove Installation GuideInstallation GuideBK555 / rev1326-01-2023
Ecoboiler HE 12 Inset / 16 Inset / Wood / CassetteDeclaration of Performance--
Ecoboiler Stove User GuideUser GuideBK560 / rev1001-04-2016
Ecoboiler WoodProduct Fiche / Tech. Spec.-28-06-2019
Guide to Wood BurningNew User Guides--
Quick Start GuideNew User Guides--


Height (mm):668
Width (mm):700
Depth (mm):605
Depth (from back to centre of top flue) (mm):90
Flue diameter (mm):152
Flue outlet type:152
Weight - when unpacked (kg):152
Ideal log length (mm):500

Distances to combustibles

Min. combustible distance to rear (mm):220
Min. combustible distance to sides (mm):100
Min. combustible distance above (mm):456
Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance.


Ecodesign Ready:No
Model Series / Generation:2
Wet or Dry stove:Wet
Burns wood fuel:Yes
Burns solid smokeless fuel:No
Gas stove:No
Suitable for Smoke Control Areas:No
Stove guarantee:Seven-year
Suitable for a 12mm constructional hearth:No
Suitable for direct air installation:Yes
Stove body type:Freestanding

Output - Wood fuel

Output - wood (kW):11.8
Output to room - wood - boiler stove (kW):8.0
Min. output - wood (kW):2
Max. output - wood (kW):6
Output to water - wood - boiler stove (kW):11.8
Nett Efficiency - wood (%):73.4

Direct air information

Direct Air Connection fixed or optional:Fixed
Direct Air Connection Position left to centre distance (mm):611.5
Direct Air Connection Position right to centre distance (mm):68.5
Direct Air Connection Position floor to centre distance (mm):187
Direct Air Connection Positioned Dead Centre?:N
Direct Air Connection diagram type:A

Boiler Tappings

Boiler Tapping Measurement A (mm):568
Boiler Tapping Measurement B (mm):346
Boiler Tapping Measurement C (mm):295
Boiler Tapping Measurement D (mm):568
Max Operating Pressure:3

Parts list

 CodeNameTypeQuantityOptional Extra?
1)AFS3345Airwash KnobHandles and Locks1No
2)AFS3330Fire DoorDoor1No
3)ARA019Arada Rope Kit 3 Door Rope1No
4)AFS3495Airwash SliderAir Inlet1No
5)AFS2775Hinge (right Hand) Hinge3No
6)AFS3335Glass KitGlass and related parts1No
7)AFS2310Stud Catch Plate Handles and Locks1No
8)AFS3900Handle Assembly (stainless Steel Handle)Handles and Locks1No
9)ARA010Arada Hot Glove Arada Brand Accessories1No
10)AFS3355Throat PlateThroat Plate1No
11)AFS3505Airway Inspection CoverAir Inlet1No
12)AFS3360Wood GrateStatic Grate1No
13)AFS3350Fuel RetainerFuel Retainer1No
14)AFS054Ash Pan Ash Pan1No
15)AFS008Operating Tool Operating Tool1No
16)AFS2740Thermostat Boiler Thermostat1No
18)AFS3410Thermostat CoverMiscellaneous1No
19)AFS1379Thermostat Knob Boiler Thermostat1No
