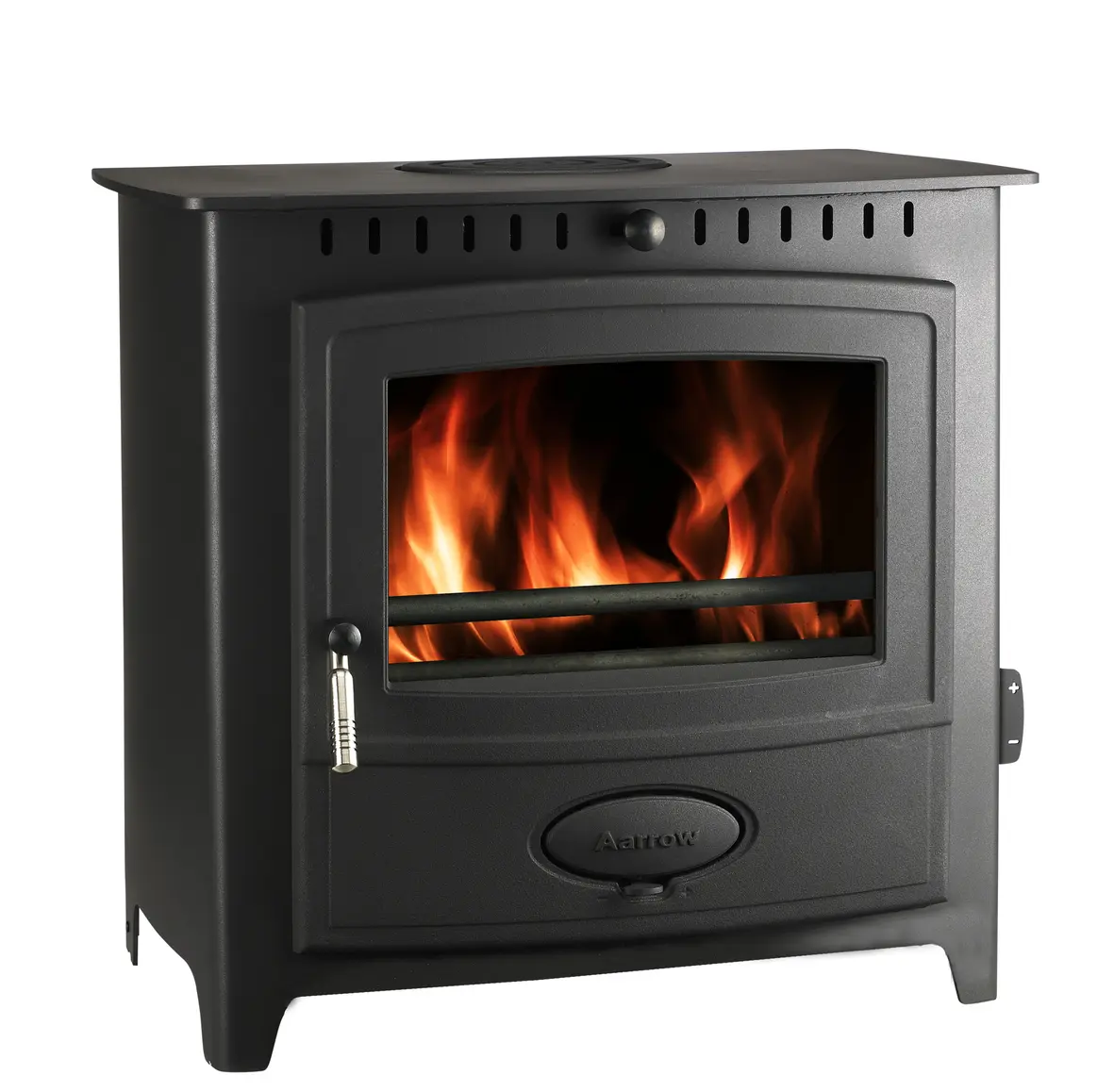

Ecoburn 11 Wood CE
[ECB11WCE] Ecoburn 11 Wood CE (Ecoburn 11) technical information
Stove model code: ECB11WCE
Stove model production status: Discontinued
First produced: June 2011
Last produced: June 2011
Information last updated : 04/12/2025
Dimensions
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | No |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS047 | Hinge Kit | Hinge | 1 | No |
| 1) | AFS1330 | Grate Bar Support (gbs004) | Grate Bar Support | 1 | No |
| 1) | AFS1216 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS1333 | Outer Wood Cover Plate With Fixings | Miscellaneous | 1 | No |
| 1) | AFS1220 | Complete Fire Door | Door | 1 | No |
| 1) | AFS1363 | (obsolete) Operating Manual Aarrow Ecoburn Ce 2007 | Miscellaneous | 1 | No |
| 1) | AFS1240 | Fuel Retainer Bar | Fuel Retainer | 1 | No |
| 1) | AFS1365 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS1242 | Liner Set | Liner | 1 | No |
| 1) | AFS1391 | Ash Pan | Ash Pan | 1 | No |
| 1) | AFS1243 | Liner Set (side) | Liner | 1 | No |
| 1) | AFS1412 | +/- Bracket With Fixings | Miscellaneous | 1 | No |
| 1) | AFS1244 | Liner Set (rear) | Liner | 1 | No |
| 1) | AFS002/OLD | Grate Bar *old Style* (ngb2b) | Grate Bar | 1 | No |
| 1) | AFS002 | Grate Bar | Grate Bar | 1 | No |
| 1) | AFS1249 | Ashpan With Cover | Ash Pan | 1 | No |
| 1) | AFS1021 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 1) | AFS1289 | Throat Plate | Throat Plate | 1 | No |
| 1) | AFS1483 | Wood Burning Tray | Wood Burning Tray | 1 | No |
| 1) | AFS011 | 6 Inch Flue Spigot | Spigot | 1 | No |
| 1) | AFS1306 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 1) | AFS012 | 6 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | AFS1326 | Comb With Extension | Comb and Riddle Pull | 1 | No |
