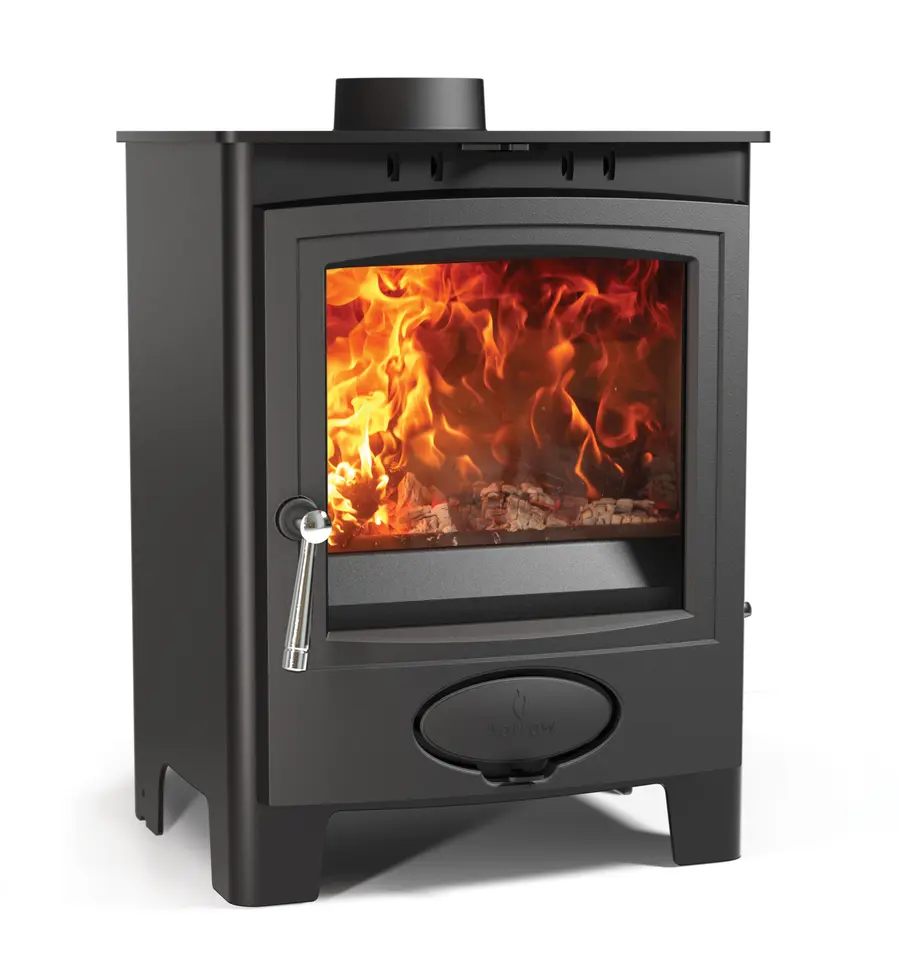

Ecoburn Plus 5 Series 2
[ECB5FPLUS-G2] Ecoburn Plus 5 Series 2 (Ecoburn Plus 5) technical information
Stove model code: ECB5FPLUS-G2
Stove model production status: Discontinued
First produced: May 2013
Last produced: April 2014
Information last updated : 04/12/2025
| Title | Document type | BK number / revision | Document date |
| Aarrow User Guide | User Guide | BK530 / rev14 | 01-11-2016 |
| Height (mm): | 550 |
| Width (mm): | 431 |
| Depth (mm): | 365 |
| Height (from top to centre of rear flue) (mm): | 451 |
| Height of stand (mm): | 200 |
| Depth (from back to centre of top flue) (mm): | 94 |
| Flue diameter (mm): | 102 |
| Weight - when packed (kg): | 57 |
| Ideal log length (mm): | 300 |
| Min. combustible distance to rear (mm): | 625 |
| Min. combustible distance to sides (mm): | 525 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. |
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 5 |
| Nett Efficiency - wood (%): | 74.7 |
| Mean CO Emission - wood (%): | 0.58 |
| CE rated nominal output kW: | 5.1 |
| CE rated min output kW: | 1.0 |
| CE rated max output kW: | 6.5 |
| CE rated under hearth temperature (deg.C): | 48.0 |
| Boiler Tapping Measurement A (mm): | 265 |
| Boiler Tapping Measurement B (mm): | 264 |
| Boiler Tapping Measurement C (mm): | 357 |
