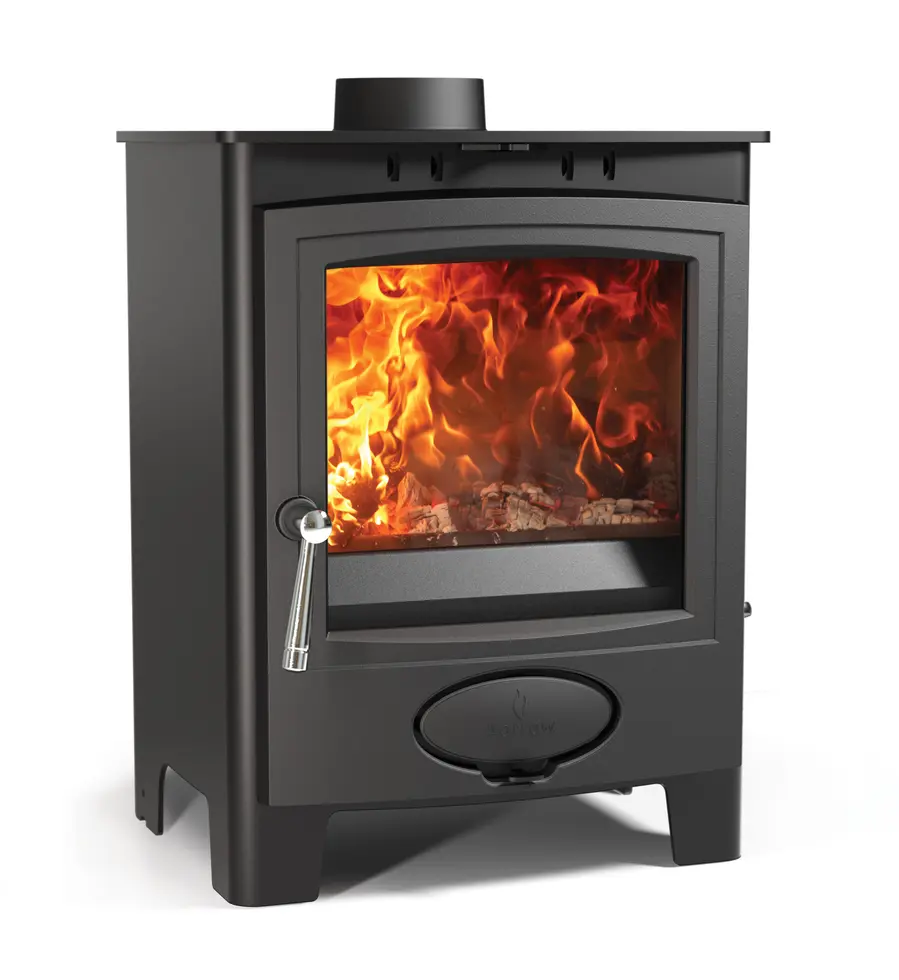

Ecoburn Plus 5 Series 2A

[ECB5FPLUS-G2A] Ecoburn Plus 5 Series 2A (Ecoburn Plus 5) technical information

Stove model code: ECB5FPLUS-G2A

Stove model production status: Discontinued

Information last updated : 08/11/2022

Dimensions

Height (mm):550
Width (mm):431
Depth (mm):365
Height (from top to centre of rear flue) (mm):451
Height of stand (mm):136
Height of log store (mm):336
Depth (from back to centre of top flue) (mm):94
Flue diameter (mm):127
Weight - when packed (kg):57
Ideal log length (mm):300

Distances to combustibles

Min. combustible distance to rear (mm):625
Min. combustible distance to sides (mm):525
Min. combustible distance above (mm):381
Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance.

Features

Ecodesign Ready:No
Model Series / Generation:2
Wet or Dry stove:Dry
Burns wood fuel:Yes
Burns solid smokeless fuel:Yes
Gas stove:No
Suitable for Smoke Control Areas:No
Stove guarantee:Lifetime
Suitable for a 12mm constructional hearth:Yes
Suitable for direct air installation:No
Stove body type:Freestanding

Output - Wood fuel

Output - wood (kW):4.9
Min. output - wood (kW):1
Max. output - wood (kW):6.5
Nett Efficiency - wood (%):74.7
Mean CO Emission - wood (%):0.58

Output - CE Test Figures

CE rated nominal output kW:5.1
CE rated min output kW:1.0
CE rated max output kW:6.5
CE rated under hearth temperature (deg.C):48.0

Boiler Tappings

Boiler Tapping Measurement A (mm):265
Boiler Tapping Measurement B (mm):264
Boiler Tapping Measurement C (mm):357

Parts list

 CodeNameTypeQuantityOptional Extra?
1)ARA014Arada Rope Kit 2 Arada Brand Accessories1No
2)AFS2345Fire Door Door1No
3)AFS2350Glass Kit Glass and related parts1No
4)AFS0095 Inch Flue Spigot Spigot1No
5)AFS0105 Inch Hot Plate Hot Plate1No
6)AFS3380Throat PlateThroat Plate1No
7)AFS2665Liner Liner2No
8)AFS2670Liner Liner2No
9)AFS1328Grate Bar Support Grate Bar Support1No
10)AFS2375Flexi Grate Bar - Small Grate Bar7No
11)AFS1955Comb With Extension Comb and Riddle Pull1No
12)AFS008Operating Tool Operating Tool1No
13)AFS058Ash Pan Ash Pan1No
14)AFS2355Fuel Retainer Fuel Retainer1No
15)AFS2775Hinge (right Hand) Hinge2No
16)AFS2680Primary Air Controls Air Inlet1No
17)AFS3550Handle Assembly (stainless Steel)Door1No
18)AFS1010Glass Clips Glass and related parts1No
19)ARA010Arada Hot Glove Arada Brand Accessories1No
20)AFS2705Self Levelling Feet Feet1No
21)AFS1361Gasket And Glass Clips Glass and related parts1No
2)AIB8Add In Boiler - 2.0kw Add In Boiler1Yes
3)AFS1135Floor Fixing Kit Accessories1Yes
5)LOG-ECB5FPLUSLogstore For Ecb5fplusLog Store1Yes
6)AFS3165Safety HandleAccessories1Yes
7)STAND-ECB5FPLUSStand For Ecb5fplusStand1Yes
