Ecoburn 5 Multifuel

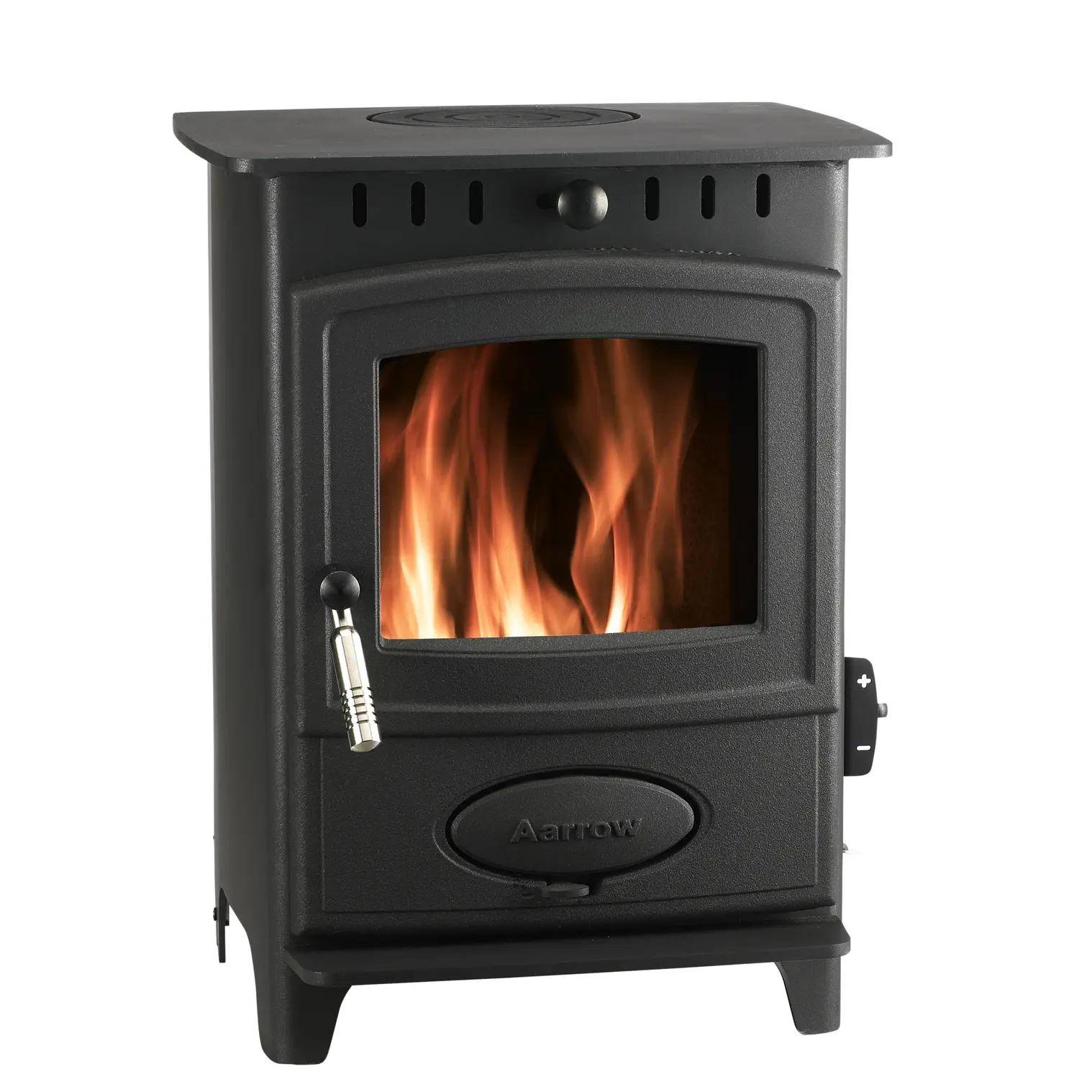

Image of Aarrow Ecoburn 5 Multifuel stove

[ECB5M] Ecoburn 5 Multifuel (Ecoburn 5) technical information

Stove model code: ECB5M

Stove model production status: Discontinued

Information last updated : 08/11/2022


Height (mm):525
Width (mm):396
Depth (mm):372
Height (from top to centre of rear flue) (mm):424
Height of low canopy (mm):140
Height of stand (mm):100
Depth (from back to centre of top flue) (mm):94
Flue diameter (mm):102
Weight - when packed (kg):56
Ideal log length (mm):254


Ecodesign Ready:No
Model Series / Generation:1
Wet or Dry stove:Dry
Burns wood fuel:Yes
Burns solid smokeless fuel:Yes
Gas stove:No
Suitable for Smoke Control Areas:No
Suitable for a 12mm constructional hearth:No
Suitable for direct air installation:No
Stove body type:Freestanding

Output - Wood fuel

Output - wood (kW):4.9
Min. output - wood (kW):1
Max. output - wood (kW):5

Parts list

 CodeNameTypeQuantityOptional Extra?
1)AFS1196Wood Burning Tray/ Conversion Kit Stove Conversion Kit1No
1)AFS1226(obsolete) Comb With Extension Comb and Riddle Pull1No
1)AFS1372Gasket And Glass Clips Glass and related parts1No
