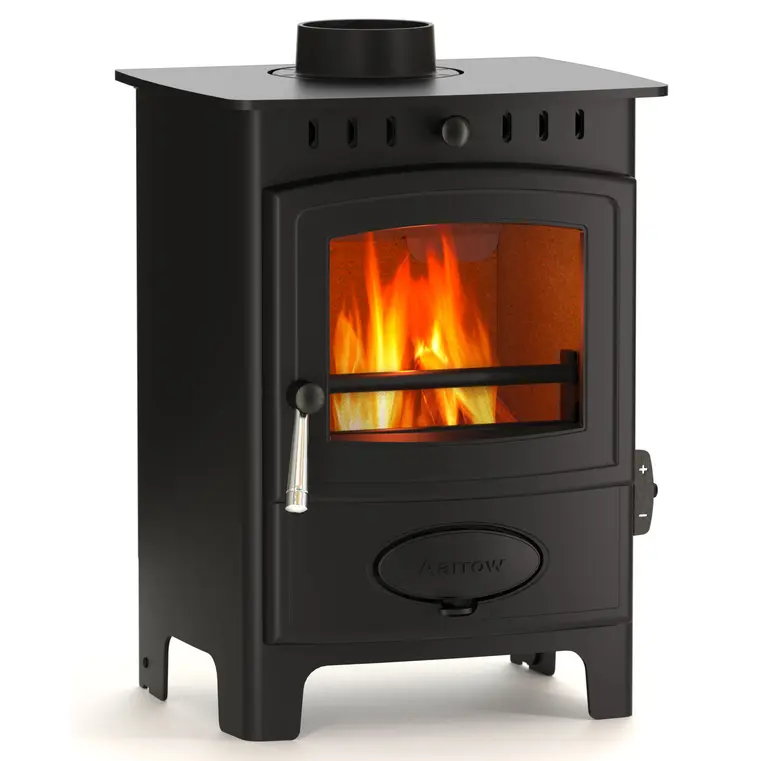

Ecoburn 5 Multifuel CE Series 2
[ECB5MCE-S2] Ecoburn 5 Multifuel CE Series 2 (Ecoburn 5) technical information
Stove model code: ECB5MCE-S2
Stove model production status: Discontinued
First produced: January 2012
Last produced: September 2013
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 522 |
| Width (mm): | 397 |
| Depth (mm): | 388 |
| Height (from top to centre of rear flue) (mm): | 424 |
| Height of stand (mm): | 100 |
| Depth (from back to centre of top flue) (mm): | 94 |
| Flue diameter (mm): | 102 |
| Weight - when packed (kg): | 57 |
| Ideal log length (mm): | 254 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 625 |
| Min. combustible distance to sides (mm): | 525 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 5 |
| Nett Efficiency - wood (%): | 74.7 |
| Mean CO Emission - wood (%): | 0.58 |
Output - CE Test Figures
| CE rated nominal output kW: | 5.1 |
| CE rated min output kW: | 1.0 |
| CE rated max output kW: | 6.5 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1218 | Fire Door Complete | Door | 1 | No |
| 2) | AFS1306 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 3) | AFS047 | Hinge Kit | Hinge | 1 | No |
| 4) | AFS1214 | Glass Kit | Glass and related parts | 1 | No |
| 5) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 6) | AFS009A | 4 Inch Flue Spigot | Spigot | 1 | No |
| 7) | AFS009B | 4 Inch Hot Plate | Hot Plate | 1 | No |
| 8) | AFS1286 | Throat Plate | Throat Plate | 1 | No |
| 9) | AFS1207 | Liner Set (rear) | Liner | 1 | No |
| 10) | AFS1205 | Liner Set | Liner | 1 | No |
| 11) | AFS1206 | Liner Set (side) | Liner | 1 | No |
| 12) | AFS1327 | Grate Bar Support (gbs001) | Grate Bar Support | 1 | No |
| 13) | AFS1412 | +/- Bracket With Fixings | Miscellaneous | 1 | No |
| 14) | AFS001 | Grate Bar | Grate Bar | 5 | No |
| 15) | AFS1323 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 16) | AFS1190 | Fuel Retainer Bar | Fuel Retainer | 2 | No |
| 17) | AFS058 | Ash Pan | Ash Pan | 1 | No |
| 18) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 2) | ECB5TRACEL | Tracery Lattice | Accessories | 1 | Yes |
| 3) | ECB5STAND | Stand For Ecb5 | Stand | 1 | Yes |
| 4) | AOCXSL | Add On Low Canopy For B5mu 5 Gas New Style | Canopy | 1 | Yes |
| 5) | AIB0 | Add In Boiler - 1.8kw | Add In Boiler | 1 | Yes |
| 6) | AFS1305 | Handle (kooler To Touch) | Handles and Locks | 1 | Yes |
| 7) | AFS1135 | Floor Fixing Kit | Accessories | 1 | Yes |
