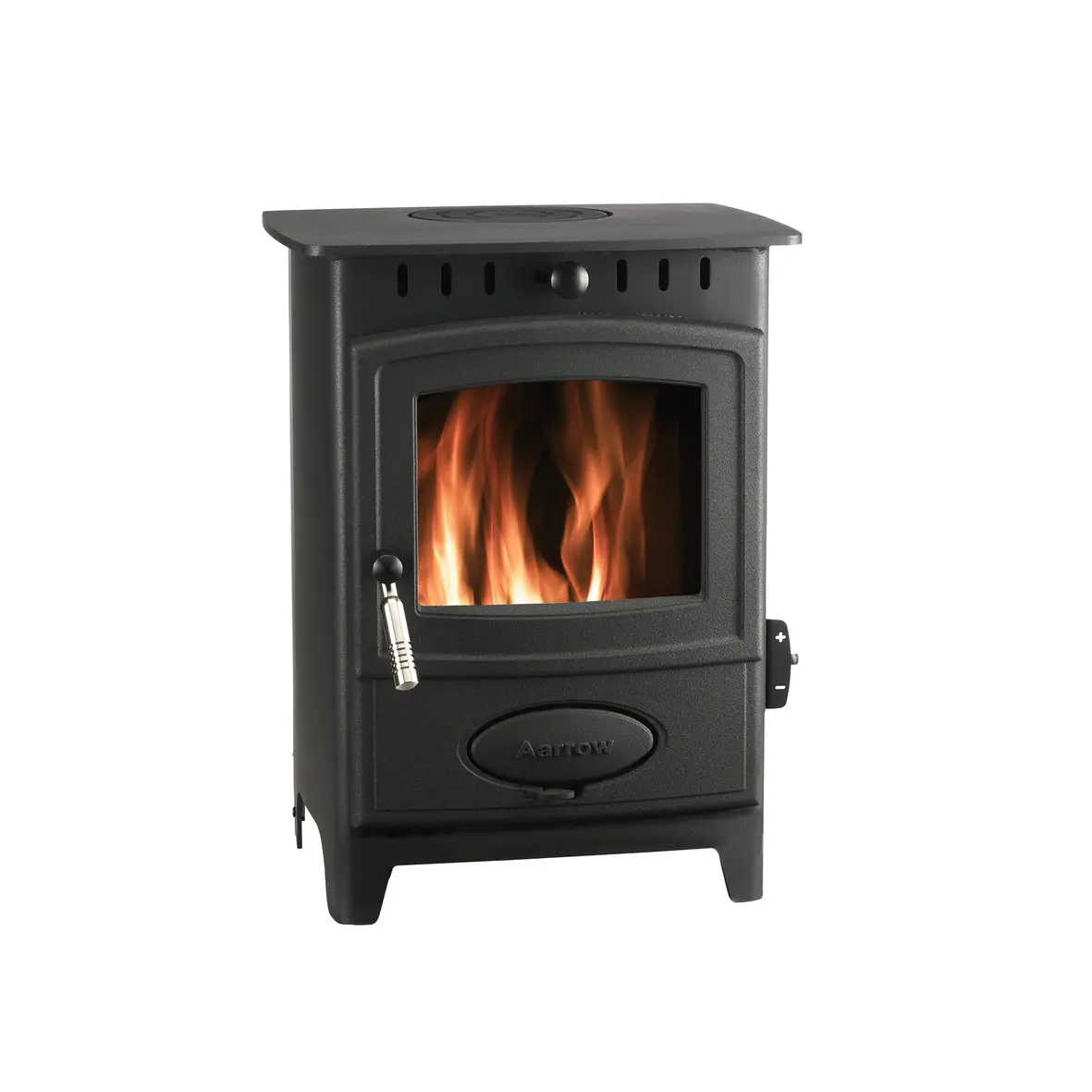

Ecoburn 5 Multifuel CE
[ECB5MCE] Ecoburn 5 Multifuel CE (Ecoburn 5) technical information
Stove model code: ECB5MCE
Stove model production status: Discontinued
First produced: August 2011
Last produced: January 2013
Information last updated : 04/12/2025
Dimensions
Distances to combustibles
| Min. combustible distance to rear (mm): | 625 |
| Min. combustible distance to sides (mm): | 525 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1190 | Fuel Retainer Bar | Fuel Retainer | 1 | No |
| 1) | AFS1327 | Grate Bar Support (gbs001) | Grate Bar Support | 1 | No |
| 1) | AFS1021 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS1196 | Wood Burning Tray/ Conversion Kit | Stove Conversion Kit | 1 | No |
| 1) | AFS1333 | Outer Wood Cover Plate With Fixings | Miscellaneous | 1 | No |
| 1) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 1) | AFS1199 | Ashpan | Ash Pan | 1 | No |
| 1) | AFS1363 | (obsolete) Operating Manual Aarrow Ecoburn Ce 2007 | Miscellaneous | 1 | No |
| 1) | AFS1205 | Liner Set | Liner | 1 | No |
| 1) | AFS1364 | Airwash Assembly | Air Inlet | 1 | No |
| 1) | AFS1206 | Liner Set (side) | Liner | 1 | No |
| 1) | AFS1365 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS1207 | Liner Set (rear) | Liner | 1 | No |
| 1) | AFS1368 | Primary Air Controls | Air Inlet | 1 | No |
| 1) | AFS1214 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS1412 | +/- Bracket With Fixings | Miscellaneous | 1 | No |
| 1) | AFS001 | Grate Bar | Grate Bar | 1 | No |
| 1) | AFS1218 | Fire Door Complete | Door | 1 | No |
| 1) | AIB0 | Add In Boiler - 1.8kw | Add In Boiler | 1 | No |
| 1) | AFS009B | 4 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | AFS1286 | Throat Plate | Throat Plate | 1 | No |
| 1) | ECB5STAND | Stand For Ecb5 | Stand | 1 | No |
| 1) | AFS047 | Hinge Kit | Hinge | 1 | No |
| 1) | AFS1306 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | ECB5TRACEL | Tracery Lattice | Accessories | 1 | No |
| 1) | AFS058 | Ash Pan | Ash Pan | 1 | No |
| 1) | AFS1323 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 1) | AFS001/OLD | (obsolete) Grate Bar *old Style* (ngb1b) | Grate Bar | 1 | No |
