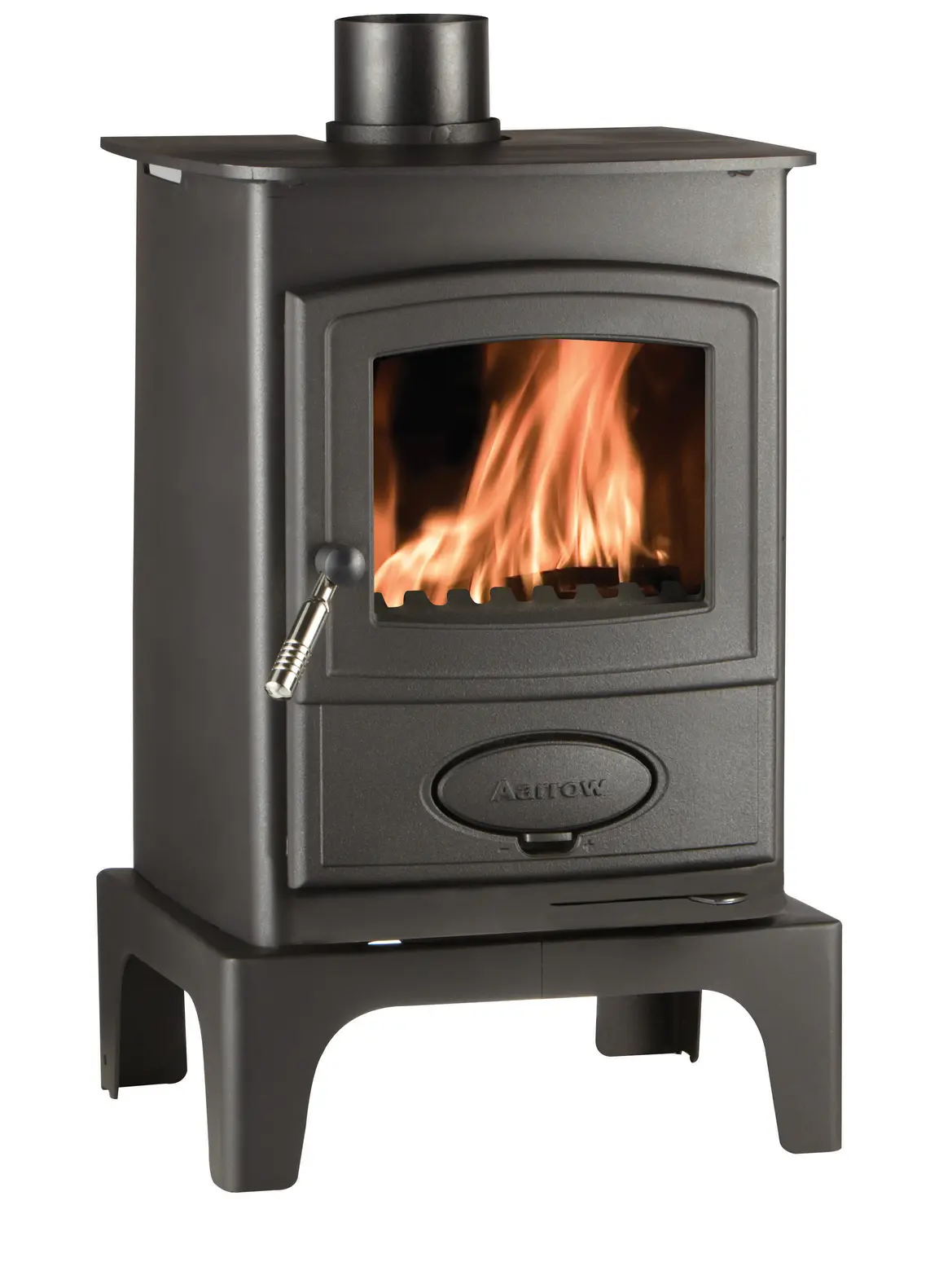

Ecoburn 5 Defra
[ECB5SCF] Ecoburn 5 Defra (Ecoburn 5) technical information
Stove model code: ECB5SCF
Stove model production status: Discontinued
First produced: July 2012
Last produced: February 2015
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 526 |
| Width (mm): | 391 |
| Depth (mm): | 410 |
| Height (from top to centre of rear flue) (mm): | 462 |
| Depth (from back to centre of top flue) (mm): | 98 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 67 |
| Ideal log length (mm): | 254 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 400 |
| Min. combustible distance to sides (mm): | 350 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | Yes |
| Stove guarantee: | Lifetime |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 4.5 |
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 5.5 |
| Nett Efficiency - wood (%): | 80.3 |
| Mean CO Emission - wood (%): | 0.33 |
Output - CE Test Figures
| CE rated nominal output kW: | 4.5 |
| CE rated min output kW: | 1.0 |
| CE rated max output kW: | 5.5 |
| CE rated under hearth temperature (deg.C): | 37.1 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS2545 | Fire Door | Door | 1 | No |
| 2) | AFS3595 | Door Handle Assembly (stainless Steel) | Handles and Locks | 1 | No |
| 3) | AFS1214 | Glass Kit | Glass and related parts | 1 | No |
| 4) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 5) | AFS058 | Ash Pan | Ash Pan | 1 | No |
| 6) | AFS3250 | Air Duct Base | Air Inlet | 1 | No |
| 7) | AFS1865 | Fuel Retainer | Fuel Retainer | 1 | No |
| 8) | AFS1536 | External Air Kit For Smoke Control 5/7 | Accessories | 1 | No |
| 9) | AFS1635 | Air Slider Assembly | Air Inlet | 1 | No |
| 10) | AFS4025 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 11) | AFS2375 | Flexi Grate Bar - Small | Grate Bar | 7 | No |
| 12) | AFS1328 | Grate Bar Support | Grate Bar Support | 1 | No |
| 13) | AFS2775 | Hinge (right Hand) | Hinge | 2 | No |
| 14) | AFS3050 | Liner 272 X 56 X 25 | Liner | 2 | No |
| 15) | AFS3045 | Liner 272 X 210 X 25 Shaped | Liner | 2 | No |
| 16) | AFS2560 | Throat Plate | Throat Plate | 1 | No |
| 17) | AFS1537 | 5 Inch Flue Assembly For Smoke Control 5/7 | Miscellaneous | 1 | No |
| 18) | AFS1529 | Top Flue Blanking Assembly | Miscellaneous | 1 | No |
| 19) | AFS2550 | Primary Air Controls | Air Inlet | 1 | No |
| 20) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 21) | AFS2705 | Self Levelling Feet | Feet | 2 | No |
| 22) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 23) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 6) | AFS3165 | Safety Handle | Accessories | 1 | Yes |
| 7) | AFS1135 | Floor Fixing Kit | Accessories | 1 | Yes |
