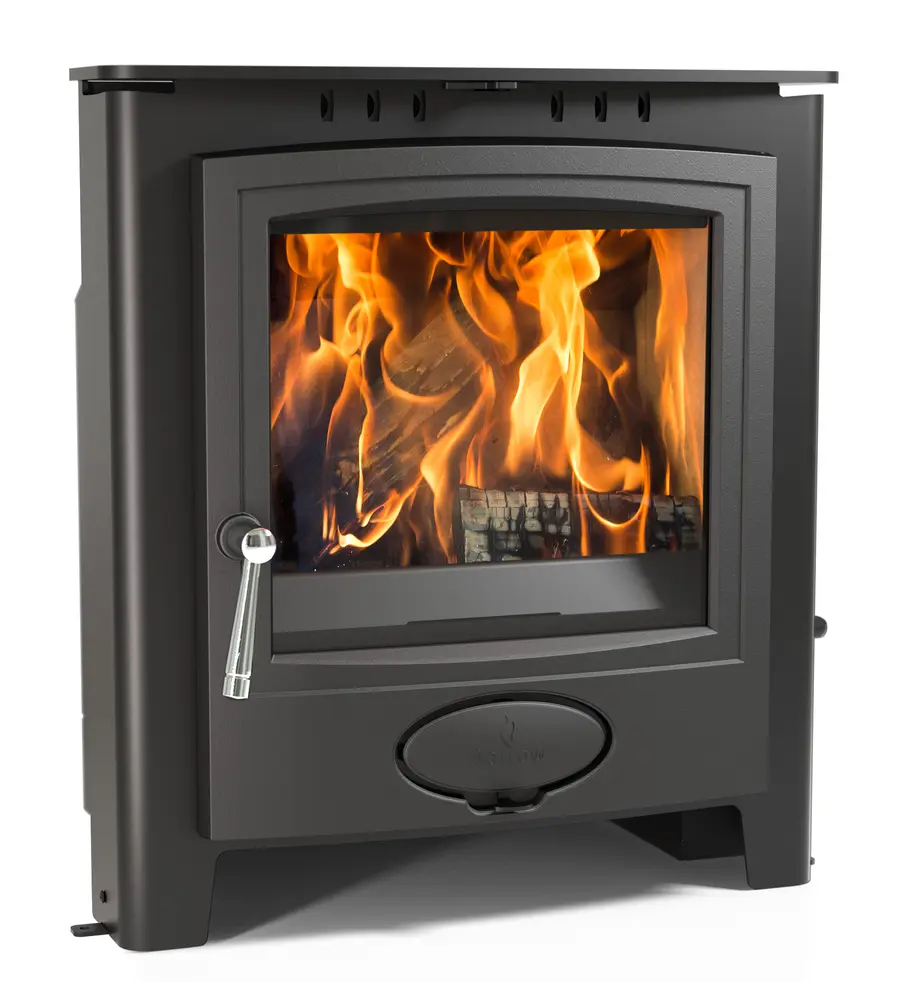

Ecoburn Plus 7 Inset
[ECB7FPLUS-INSET] Ecoburn Plus 7 Inset (Ecoburn Plus 7 Inset) technical information
Stove model code: ECB7FPLUS-INSET
Stove model production status: Discontinued
First produced: October 2012
Last produced: June 2017
Information last updated : 04/12/2025
Documentation
| Title | Document type | BK number / revision | Document date |
| Aarrow User Guide | User Guide | BK530 / rev14 | 01-11-2016 |
| Ecoburn Plus 7 Inset | Declaration of Performance | - | - |
Dimensions
| Height (mm): | 590 |
| Width (mm): | 536 |
| Depth (mm): | 492 |
| Depth into fireplace (mm): | 320 |
| Height into fireplace (mm): | 540 |
| Width into fireplace (mm): | 392 |
| Depth of front fascia - Inset (mm): | 172 |
| Flue diameter (mm): | 127 |
| Flue outlet type: | 30 degree sloping flue |
| Weight - when packed (kg): | 92 |
| Ideal log length (mm): | 254 |
Distances to combustibles
| Min. combustible distance to sides (mm): | 250 |
| Min. combustible distance above (mm): | 250 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Lifetime |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Inset |
Output - Wood fuel
| Output - wood (kW): | 7.1 |
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 9 |
| Nett Efficiency - wood (%): | 72.1 |
| Mean CO Emission - wood (%): | 0.58 |
Output - CE Test Figures
| CE rated nominal output kW: | 7.1 |
| CE rated min output kW: | 2.0 |
| CE rated max output kW: | 9.0 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 2) | AFS2035 | Glass Kit | Glass and related parts | 1 | No |
| 3) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 4) | AFS3550 | Handle Assembly (stainless Steel) | Door | 1 | No |
| 5) | AFS2680 | Primary Air Controls | Air Inlet | 1 | No |
| 6) | AFS1400 | Ash Pan | Ash Pan | 1 | No |
| 7) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 8) | AFS2130 | Fuel Retainer | Fuel Retainer | 1 | No |
| 9) | AFS1461 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 10) | AFS2020 | Flexi Grate Bar - Large | Grate Bar | 7 | No |
| 11) | AFS1328 | Grate Bar Support | Grate Bar Support | 1 | No |
| 12) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 13) | AFS3030 | Liner 305 X 252 X 25 Shaped | Liner | 2 | No |
| 14) | AFS1441 | Liner (rear) | Liner | 1 | No |
| 15) | AFS2160 | Throat Plate | Throat Plate | 1 | No |
| 16) | AFS2775 | Hinge (right Hand) | Hinge | 2 | No |
| 17) | AFS2060 | Fire Door | Door | 1 | No |
| 18) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS2210 | Damper Assembly | Accessories | 1 | Yes |
| 2) | AFS1545 | 5 to 6 Inch Vertical Adaptor | Accessories | 1 | Yes |
| 4) | AFS3165 | Safety Handle | Accessories | 1 | Yes |
| 5) | AFS1135 | Floor Fixing Kit | Accessories | 1 | Yes |
