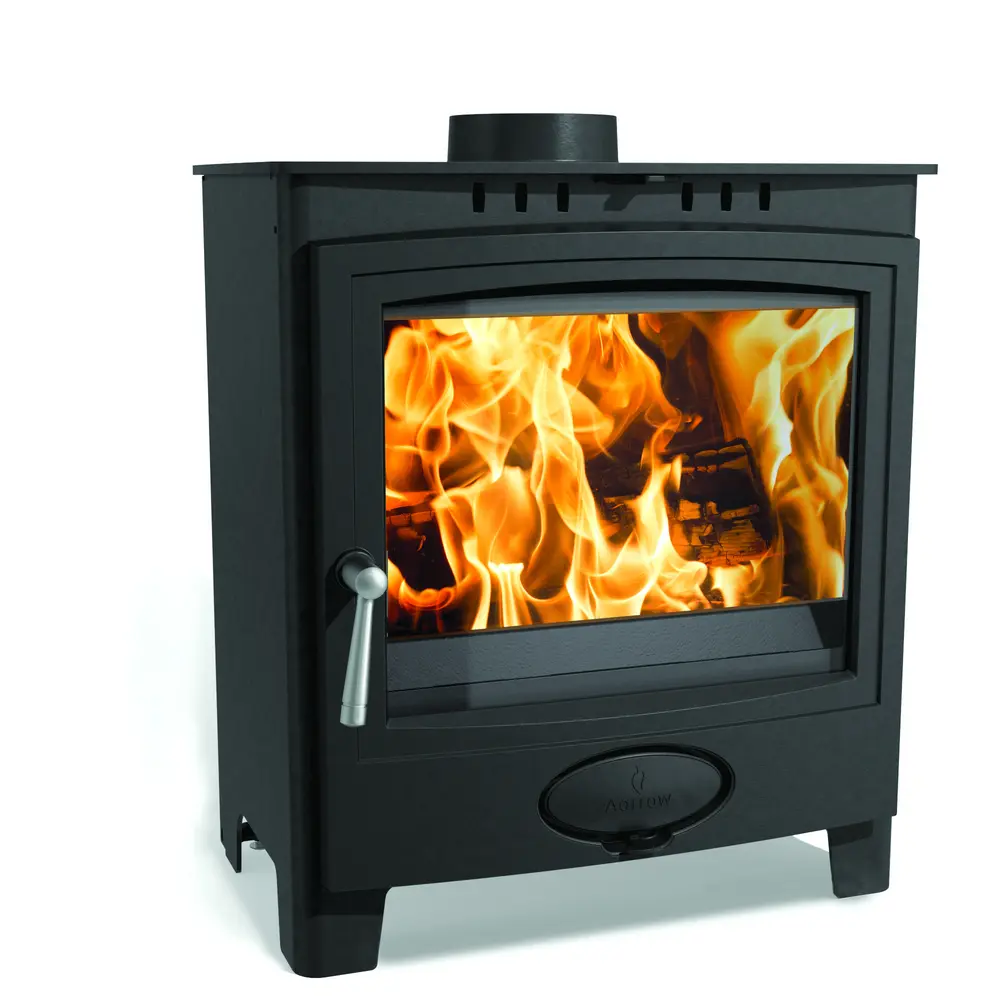

Ecoburn Plus 9 Series 2
[ECB9FPLUS-G2] Ecoburn Plus 9 Series 2 (Ecoburn Plus 9) technical information
Stove model code: ECB9FPLUS-G2
Stove model production status: Discontinued
First produced: June 2016
Last produced: November 2017
Information last updated : 04/12/2025
Documentation
| Title | Document type | BK number / revision | Document date |
| Aarrow User Guide | User Guide | BK530 / rev14 | 01-11-2016 |
| Ecoburn Plus 9 | Declaration of Performance | - | - |
Dimensions
| Height (mm): | 600 |
| Width (mm): | 541 |
| Depth (mm): | 365 |
| Height (from top to centre of rear flue) (mm): | 492 |
| Depth (from back to centre of top flue) (mm): | 102 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 91 |
| Weight - when unpacked (kg): | 86 |
| Ideal log length (mm): | 380 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 750 |
| Min. combustible distance to sides (mm): | 500 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Lifetime |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 8.8 |
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 8.8 |
| Nett Efficiency - wood (%): | 71.6 |
Output - CE Test Figures
| CE rated nominal output kW: | 8.8 |
| CE rated min output kW: | 2.0 |
| CE rated max output kW: | 8.8 |
| CE rated under hearth temperature (deg.C): | 63.6 |
Boiler Tappings
| Boiler Tapping Measurement A (mm): | 247 |
| Boiler Tapping Measurement B (mm): | 269 |
| Boiler Tapping Measurement C (mm): | 390 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS3950 | Complete Fire Door | Door | 1 | No |
| 2) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 3) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 4) | AFS3955 | Glass Kit | Glass and related parts | 1 | No |
| 5) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 6) | AFS2775 | Hinge (right Hand) | Hinge | 2 | No |
| 7) | AFS2680 | Primary Air Controls | Air Inlet | 1 | No |
| 8) | AFS3575 | Handle (stainless Steel) | Handles and Locks | 1 | No |
| 9) | AFS3550 | Handle Assembly (stainless Steel) | Door | 1 | No |
| 10) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 11) | AFS3945 | Rope Kit | Door Rope | 1 | No |
| 12) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 13) | AFS3975 | Throat Plate | Throat Plate | 1 | No |
| 14) | AFS3005 | Liner 249 X 200 X 25 | Liner | 2 | No |
| 15) | AFS1330 | Grate Bar Support (gbs004) | Grate Bar Support | 1 | No |
| 16) | AFS3025 | Liner 185 X 315 X 25 | Liner | 2 | No |
| 17) | AFS2375 | Flexi Grate Bar - Small | Grate Bar | 11 | No |
| 18) | AFS3970 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 19) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 20) | AFS4020 | Fuel Retainer | Fuel Retainer | 1 | No |
| 21) | AFS3965 | Ash Pan | Ash Pan | 1 | No |
| 22) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 1) | STAND-ECB9FPLUS | Stand For Ecb9fplus | Stand | 1 | Yes |
| 2) | LOG-ECB9FPLUS | Logstore For Ecb9fplus | Log Store | 1 | Yes |
| 4) | ADP56 | 5-6 Flue Increasing Adapter | Accessories | 1 | Yes |
| 5) | AFS3645 | Bolt Down Brackets (pair) | Accessories | 1 | Yes |
| 6) | AFS151A | Spigot 5 Inch Complete With Damper Flap And Handle | Accessories | 1 | Yes |
| 7) | AFS3165 | Safety Handle | Accessories | 1 | Yes |
| 8) | AIB3 | Add In Boiler - 3.3kw | Add In Boiler | 1 | Yes |
