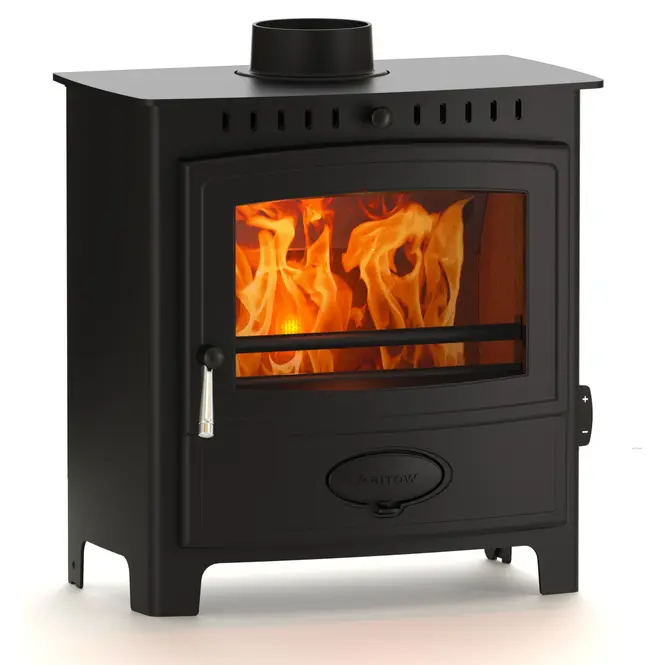

Ecoburn 9 Wood CE Series 2
[ECB9WCE-S2] Ecoburn 9 Wood CE Series 2 (Ecoburn 9) technical information
Stove model code: ECB9WCE-S2
Stove model production status: Discontinued
First produced: January 2012
Last produced: July 2012
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 600 |
| Width (mm): | 586 |
| Depth (mm): | 396 |
| Height (from top to centre of rear flue) (mm): | 485 |
| Height of low canopy (mm): | 195 |
| Height of high canopy (mm): | 285 |
| Height of stand (mm): | 100 |
| Depth (from back to centre of top flue) (mm): | 103 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 79 |
| Ideal log length (mm): | 457 |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | No |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
Output - Wood fuel
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 9 |
| Nett Efficiency - wood (%): | 71.6 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 1) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | ECB9TRACEL | Tracery Lattice For Ecb9 [m00000885] | Accessories | 1 | No |
