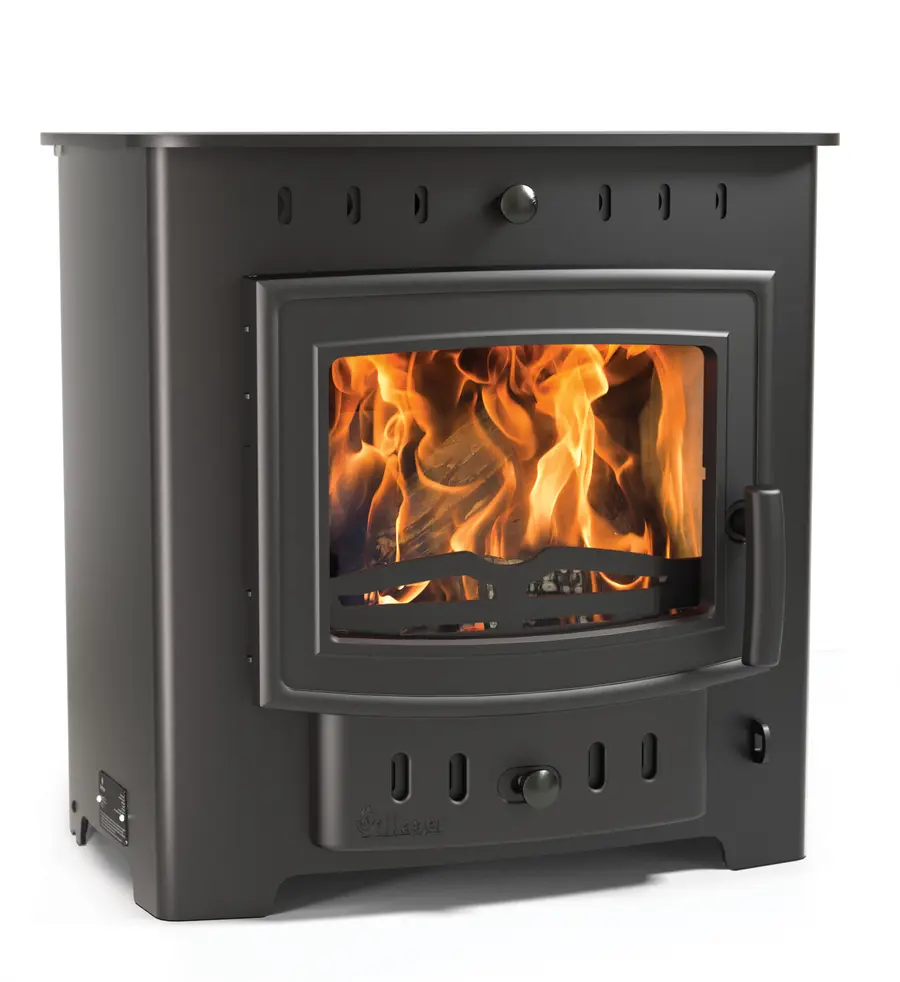

Esprit 7 Flexi Fuel Solo
[ESPRIT7F-SOLO] Esprit 7 Flexi Fuel Solo (Esprit 7) technical information
Stove model code: ESPRIT7F-SOLO
Stove model production status: Discontinued
First produced: June 2012
Last produced: July 2012
Information last updated : 04/12/2025
Dimensions
| Flue diameter (mm): | 127 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 950 |
| Min. combustible distance to sides (mm): | 700 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1329 | Grate Bar Support | Grate Bar Support | 1 | No |
| 1) | AOCVE6L | Add On Canopy Low Esprit 6/7 | Canopy | 1 | No |
| 1) | AFS1617 | Fire Door Complete | Door | 1 | No |
| 1) | AFS1365 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS1531 | Primary Air Slider | Air Inlet | 1 | No |
| 1) | AFS2460 | Hinge (single - Right Hand) | Hinge | 1 | No |
| 1) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 1) | AFS1533 | Liner Set Complete | Liner | 1 | No |
| 1) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 1) | AFS1451 | Liner (rear) | Liner | 1 | No |
| 1) | LOGVSDE6-S2 | Logstore For Esprit 6/7 Series 2 | Log Store | 1 | No |
| 1) | AFS2775 | Hinge (right Hand) | Hinge | 1 | No |
| 1) | AFS1474 | Door Rope Kit | Door Rope | 1 | No |
| 1) | STANDVSDE6-S2 | Stand For Esprit 6/7 Series 2 | Stand | 1 | No |
| 1) | AFS2785 | Hinge Pin | Hinge | 1 | No |
| 1) | AFS1484 | Glass Kit | Glass and related parts | 1 | No |
| 1) | VFS191 | Flat Riddle Bar | Comb and Riddle Pull | 1 | No |
| 1) | AFS2810 | Handle | Handles and Locks | 1 | No |
| 1) | AIBV019 | Add In Boiler - 1.6kw | Add In Boiler | 1 | No |
| 1) | VFS195 | Comb For Esprit6/7 Flat Riddle Bar | Comb and Riddle Pull | 1 | No |
| 1) | AFS2805 | Handle Shaft | Handles and Locks | 1 | No |
| 1) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 1) | AFS1508 | Ash Pan | Ash Pan | 1 | No |
| 1) | AFS1586 | Flexi Grate Bar - Small | Grate Bar | 1 | No |
| 1) | AFS2830 | Roll Pin | Door | 1 | No |
| 1) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | AFS1509 | Tertiary Air Bar And Fixings | Air Inlet | 1 | No |
| 1) | VFS200 | Fire Door Handle | Handles and Locks | 1 | No |
| 1) | AFS2925 | Ashpan Guide | Ash Pan | 1 | No |
| 1) | AFS1206 | Liner Set (side) | Liner | 1 | No |
| 1) | AFS1504 | Throat Plate | Throat Plate | 1 | No |
| 1) | AFS1613 | (obsolete) Operating Manual | Miscellaneous | 1 | No |
| 1) | AFS1279 | Hinge Kit | Hinge | 1 | No |
| 1) | AOCVE6H | Add On Canopy High Esprit 6/7 | Canopy | 1 | No |
| 1) | AFS1615 | Fuel Retainer (curved) | Fuel Retainer | 1 | No |
