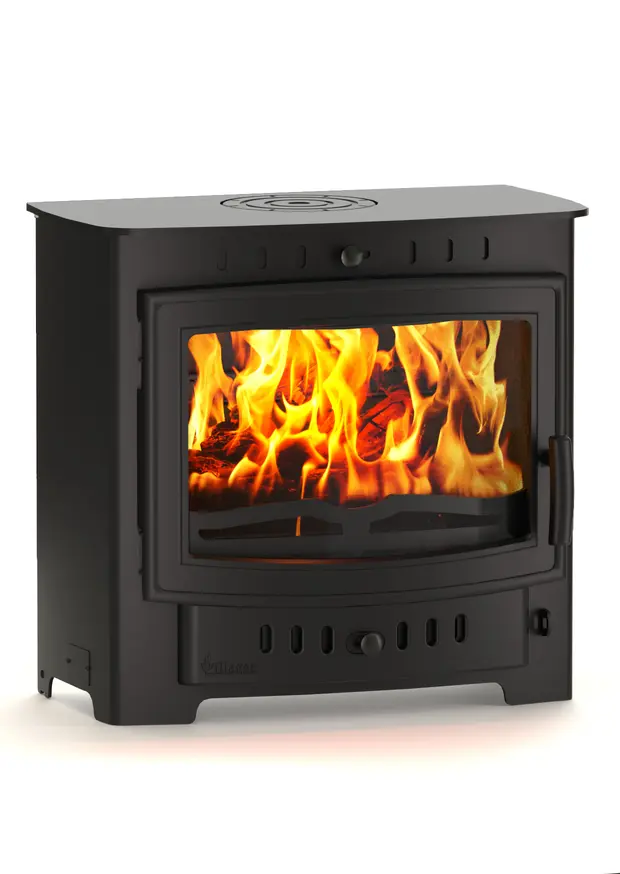

Esprit 8 Flexi Fuel Solo
[ESPRIT8F-SOLO] Esprit 8 Flexi Fuel Solo (Esprit 8) technical information
Stove model code: ESPRIT8F-SOLO
Stove model production status: Discontinued
First produced: May 2012
Last produced: January 2013
Information last updated : 04/12/2025
Dimensions
| Flue diameter (mm): | 127 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 850 |
| Min. combustible distance to sides (mm): | 700 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS2955 | Handle Assembly | Handles and Locks | 1 | No |
| 1) | AFS1365 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS1436 | Grate Bar Support | Grate Bar Support | 1 | No |
| 1) | AFS1614 | Fuel Retainer (curved) | Fuel Retainer | 1 | No |
| 1) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 1) | AFS1474 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS1616 | Fire Door Complete | Door | 1 | No |
| 1) | AFS1432 | Tertiary Air Bar & Fixings | Air Inlet | 1 | No |
| 1) | AOCVE8L | Add On Canopy Low Esprit 8 | Canopy | 1 | No |
| 1) | AFS2460 | Hinge (single - Right Hand) | Hinge | 1 | No |
| 1) | AFS1426 | Primary Air Slider | Air Inlet | 1 | No |
| 1) | AOCVE8H | Add On Canopy High Esprit 8 | Canopy | 1 | No |
| 1) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 1) | AFS1425 | Fire Door Complete | Door | 1 | No |
| 1) | LOGVSDE8-S2 | Logstore For Esprit 8 Series 2 | Log Store | 1 | No |
| 1) | AFS2775 | Hinge (right Hand) | Hinge | 1 | No |
| 1) | AFS1423 | Glass Kit | Glass and related parts | 1 | No |
| 1) | STANDVSDE8-S2 | Stand For Esprit 8 Series 2 | Stand | 1 | No |
| 1) | AFS2785 | Hinge Pin | Hinge | 1 | No |
| 1) | AFS1422 | Ash Pan | Ash Pan | 1 | No |
| 1) | VFS191 | Flat Riddle Bar | Comb and Riddle Pull | 1 | No |
| 1) | AFS2360 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 1) | AFS1421 | Liner Set | Liner | 1 | No |
| 1) | VFS196 | Comb For Esprit8 Flat Riddle Bar | Comb and Riddle Pull | 1 | No |
| 1) | AFS2810 | Handle | Handles and Locks | 1 | No |
| 1) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | AFS1420 | Liner (rear/side) | Liner | 1 | No |
| 1) | AFS1586 | Flexi Grate Bar - Small | Grate Bar | 1 | No |
| 1) | AFS2805 | Handle Shaft | Handles and Locks | 1 | No |
| 1) | AFS1069 | Liner (rear Or Side) | Liner | 1 | No |
| 1) | AFS1419 | Throat Plate | Throat Plate | 1 | No |
| 1) | VFS200 | Fire Door Handle | Handles and Locks | 1 | No |
| 1) | AFS2830 | Roll Pin | Door | 1 | No |
| 1) | AFS1279 | Hinge Kit | Hinge | 1 | No |
| 1) | AIBV016 | Add In Boiler - 2.9kw | Add In Boiler | 1 | No |
| 1) | AFS1613 | (obsolete) Operating Manual | Miscellaneous | 1 | No |
