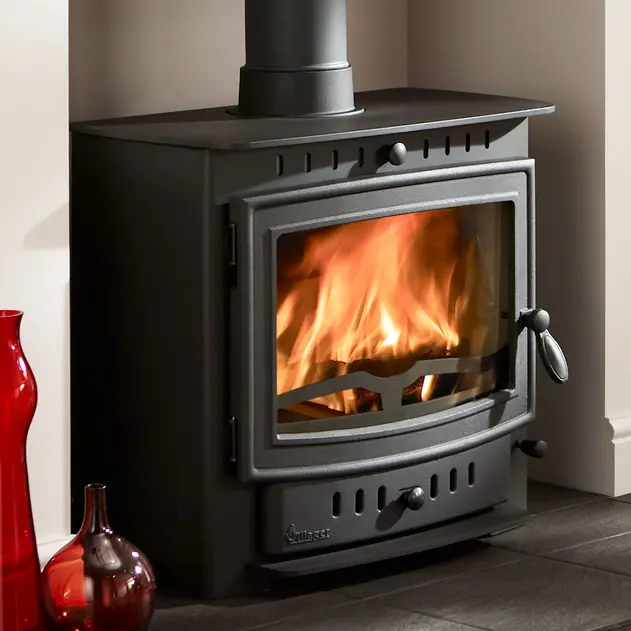

Esprit 8 Wood
[ESPRIT8W] Esprit 8 Wood (Esprit 8) technical information
Stove model code: ESPRIT8W
Stove model production status: Discontinued
Last produced: January 2011
Information last updated : 04/12/2025
Dimensions
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | No |
| Burns solid smokeless fuel: | No |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1431 | Push/pull Rod And Knob | Comb and Riddle Pull | 1 | No |
| 1) | AFS1419 | Throat Plate | Throat Plate | 1 | No |
| 1) | AFS1430 | Comb | Comb and Riddle Pull | 1 | No |
| 1) | AIBV016 | Add In Boiler - 2.9kw | Add In Boiler | 1 | No |
| 1) | AFS1429 | Wood Burning Blanking Piece | Miscellaneous | 1 | No |
| 1) | AFS1436 | Grate Bar Support | Grate Bar Support | 1 | No |
| 1) | AFS1428 | Wood Burning Tray | Wood Burning Tray | 1 | No |
| 1) | AFS1474 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS1426 | Primary Air Slider | Air Inlet | 1 | No |
| 1) | AOCVE8L | Add On Canopy Low Esprit 8 | Canopy | 1 | No |
| 1) | AFS1425 | Fire Door Complete | Door | 1 | No |
| 1) | AOCVE8H | Add On Canopy High Esprit 8 | Canopy | 1 | No |
| 1) | AFS1424 | Fuel Retainer (curved) | Fuel Retainer | 1 | No |
| 1) | AFS1544 | Glass Clips (pack Of 4) | Glass and related parts | 1 | No |
| 1) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 1) | AFS1423 | Glass Kit | Glass and related parts | 1 | No |
| 1) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 1) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | AFS1422 | Ash Pan | Ash Pan | 1 | No |
| 1) | AFS1069 | Liner (rear Or Side) | Liner | 1 | No |
| 1) | AFS1421 | Liner Set | Liner | 1 | No |
| 1) | AFS1432 | Tertiary Air Bar & Fixings | Air Inlet | 1 | No |
| 1) | AFS1420 | Liner (rear/side) | Liner | 1 | No |
