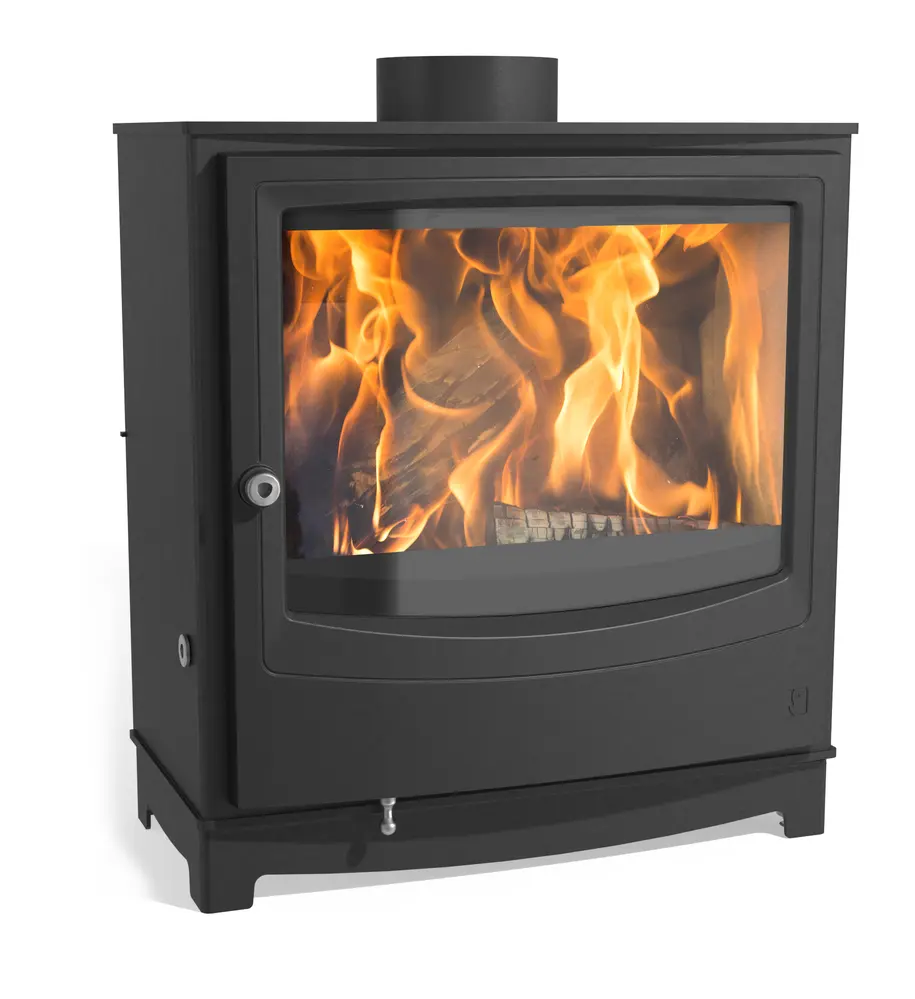

Farringdon Large (Black)
[FARRINGDON-L-BLACK-EU] Farringdon Large (Black) (Farringdon Large) technical information
Stove model code: FARRINGDON-L-BLACK-EU
Stove model production status: Discontinued
Information last updated : 04/12/2025
Documentation
| Title | Document type | BK number / revision | Document date |
| Farringdon Stove User Guide | User Guide | BK670 / rev3 | 10-10-2016 |
Dimensions
| Height (mm): | 666 |
| Width (mm): | 615 |
| Depth (mm): | 426 |
| Height (from top to centre of rear flue) (mm): | 548 |
| Depth (from back to centre of top flue) (mm): | 112 |
| Flue diameter (mm): | 152 |
| Weight - when packed (kg): | 140 |
| Weight - when unpacked (kg): | 134 |
| Ideal log length (mm): | 500 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 350 |
| Min. combustible distance to sides (mm): | 400 |
| Min. combustible distance above (mm): | 456 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | No |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | Yes |
| Stove guarantee: | Lifetime |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | Yes |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 12 |
| Nett Efficiency - wood (%): | 76.3 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS4125 | Complete Fire Door | Door | 1 | No |
| 2) | AFS4010 | Handle | Handles and Locks | 1 | No |
| 3) | AFS4000 | Handle Assembly | Handles and Locks | 1 | No |
| 4) | ARA019 | Arada Rope Kit 3 | Door Rope | 1 | No |
| 5) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 6) | AFS4130 | Glass Kit | Glass and related parts | 1 | No |
| 7) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 8) | AFS3880 | 6" Spigot | Spigot | 1 | No |
| 9) | VFS063 | Gasket | Miscellaneous | 1 | No |
| 10) | AFS3875 | Hot Plate | Hot Plate | 1 | No |
| 11) | AFS4135 | Rear Heat Shield | Miscellaneous | 1 | No |
| 12) | AFS4140 | Direct Air Adaptor | Air Inlet | 1 | No |
| 13) | AFS4145 | Throat Plate Insulation | Throat Plate | 1 | No |
| 14) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 15) | AFS4150 | Throat Plate | Throat Plate | 1 | No |
| 16) | AFS4155 | Airwash Tube | Air Inlet | 2 | No |
| 17) | AFS4160 | Liner 295 X 138 X 25 Fluted | Liner | 2 | No |
| 18) | AFS4165 | Liner 162 X 205 X 25 | Liner | 2 | No |
| 19) | AFS4170 | Liner 199 X 175 X 25 | Liner | 2 | No |
| 20) | AFS3740 | Liner 330 X 52 X 25 | Liner | 2 | No |
| 21) | AFS4175 | Grate Bar Support | Grate Bar Support | 1 | No |
| 22) | AFS3650 | Liner Fastener | Liner | 2 | No |
| 23) | AFS3855 | Comb Lock | Comb and Riddle Pull | 2 | No |
| 24) | AFS2025 | Flexi Grate Bar - Medium | Grate Bar | 14 | No |
| 25) | AFS4180 | Comb | Comb and Riddle Pull | 1 | No |
| 26) | AFS4005 | Comb Extension | Comb and Riddle Pull | 2 | No |
| 27) | AFS3655 | Airwash Tube Clamp | Miscellaneous | 2 | No |
| 28) | AFS3690 | Hinge | Hinge | 2 | No |
| 29) | AFS4185 | Base Air Cover | Air Inlet | 1 | No |
| 30) | AFS4190 | Air Slider | Air Inlet | 1 | No |
| 31) | AFS4195 | Ash Pan | Ash Pan | 1 | No |
| 32) | AFS4200 | Farringdon Large Feet | Feet | 1 | No |
| 33) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 2 | No |
| 34) | AFS4205 | Fuel Retainer | Fuel Retainer | 1 | No |
| 35) | AFS3715 | Pilot Tube | Miscellaneous | 1 | No |
| 36) | AFS3720 | Pilot Tube Clamp | Miscellaneous | 1 | No |
| 37) | AFS3725 | Pilot Tube End Bracket | Miscellaneous | 1 | No |
| 1) | STAND-FAR-L-BLACK | Stand For Farringdon L (black) | Stand | 1 | Yes |
| 2) | LOG-FAR-L-BLACK | Logstore For Farringdon L (black) | Log Store | 1 | Yes |
| 4) | AFS3645 | Bolt Down Brackets (pair) | Accessories | 1 | Yes |
| 5) | PEDESTAL-FAR-L-BLACK | Pedestal For Farringdon L (black) | Pedestal | 1 | Yes |
