Flatmate Series 3

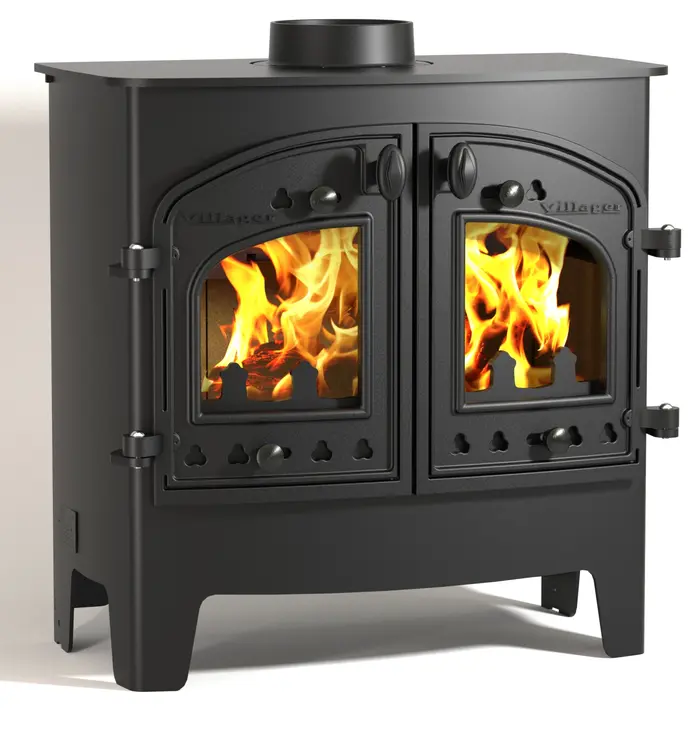

Image of Villager Flatmate Series 3 stove

[FMATEW-S3] Flatmate Series 3 (Flatmate) technical information

Stove model code: FMATEW-S3

Stove model production status: Discontinued

Information last updated : 08/11/2022


TitleDocument typeBK number / revisionDocument date
FlatmateDeclaration of Performance--


Height (mm):575
Width (mm):573
Depth (mm):353
Height (from top to centre of rear flue) (mm):460
Height of low canopy (mm):180
Height of high canopy (mm):260
Height of stand (mm):200
Depth (from back to centre of top flue) (mm):110
Flue diameter (mm):127
Weight - when packed (kg):67
Ideal log length (mm):400

Distances to combustibles

Min. combustible distance to rear (mm):800
Min. combustible distance to sides (mm):600
Min. combustible distance above (mm):381
Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance.


Ecodesign Ready:No
Model Series / Generation:3
Wet or Dry stove:Dry
Burns wood fuel:Yes
Burns solid smokeless fuel:No
Gas stove:No
Suitable for Smoke Control Areas:No
Stove guarantee:Lifetime
Suitable for a 12mm constructional hearth:Yes
Suitable for direct air installation:No
Stove body type:Freestanding

Output - Wood fuel

Output - wood (kW):8.3
Min. output - wood (kW):2
Max. output - wood (kW):11
Nett Efficiency - wood (%):78.4
Mean CO Emission - wood (%):0.42

Output - CE Test Figures

CE rated nominal output kW:8.3
CE rated min output kW:2.0
CE rated max output kW:11.0
CE rated under hearth temperature (deg.C):79.9

Boiler Tappings

Boiler Tapping Measurement A (mm):479
Boiler Tapping Measurement B (mm):372
Boiler Tapping Measurement C (mm):303

Parts list

 CodeNameTypeQuantityOptional Extra?
1)VFS167Top Slider Plate Air Inlet2No
2)VFS165Bottom Slider Plate Air Inlet2No
3)VFS032Fire Door Complete (left) Door1No
4)ARA013Arada Rope Kit 1 Arada Brand Accessories1No
5)AFS2705Self Levelling Feet Feet2No
6)VFS072Glass And Gasket Glass and related parts2No
7)VFS017Throat Plate Throat Plate1No
8)AFS0095 Inch Flue Spigot Spigot1No
9)AFS0105 Inch Hot Plate Hot Plate1No
10)VFS212Gasket (pack Of 2) Miscellaneous1No
11)VFS033Fire Door Complete (right) Door1No
12)VFS121Log Retainer Fuel Retainer1No
13)VFS128Operating Tool (4mm) Operating Tool1No
14)VFS111Hinge Pin 1.25 Inch Hinge1No
15)VFS171Fire Door Latch Assembly Handles and Locks1No
16)VFS045Handle Handles and Locks1No
17)VFS029Liner Liner12No
18)AFS1405Airwash Knob Handles and Locks4No
19)ARA010Arada Hot Glove Arada Brand Accessories1No
20)VFS206Glass Clip Complete With Nut (pack Of 4) Glass and related parts1No
2)AOCV020Add On Canopy Low For Fmatew-s3 & Bays-s3 Canopy1Yes
3)AOCV021Add On Canopy High For Fmatew-s3 & Bays-s3 Canopy1Yes
4)AIBV009Add In Boiler - 4.6kw Add In Boiler1Yes
5)VFS100Grate B Complete Accessories1Yes
