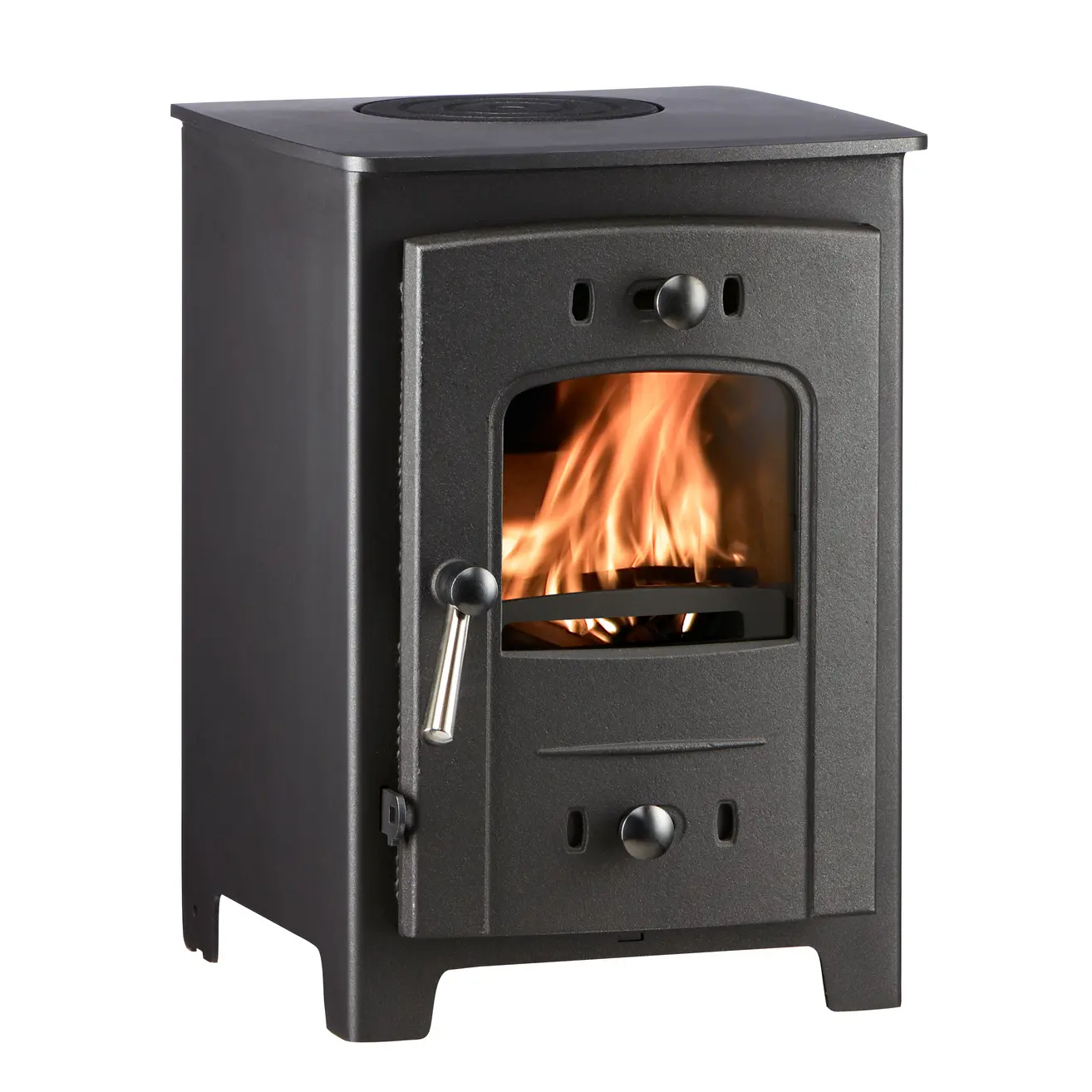

Hardy 4 Multifuel Series 3
[HARDY4M-S3] Hardy 4 Multifuel Series 3 (Hardy 4) technical information
Stove model code: HARDY4M-S3
Stove model production status: Discontinued
First produced: August 2011
Last produced: February 2012
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 458 |
| Width (mm): | 330 |
| Depth (mm): | 323 |
| Height (from top to centre of rear flue) (mm): | 370 |
| Depth (from back to centre of top flue) (mm): | 93.5 |
| Flue diameter (mm): | 102 |
| Ideal log length (mm): | 200 |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | No |
| Burns solid smokeless fuel: | No |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
Output - Wood fuel
| Output - wood (kW): | 4 |
| Nett Efficiency - wood (%): | 81.1 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS2900 | Handle (Nickel) | Handles and Locks | 1 | No |
| 2) | AFS3800 | Fire Door Handle Assembly (stainless steel shaft, stainless steel handle) | Handles and Locks | 1 | No |
| 3) | AFS1593 | Complete Fire Door | Door | 1 | No |
| 4) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 5) | AFS1095 | Glass Kit | Glass and related parts | 1 | No |
| 6) | AFS009A | 4 Inch Flue Spigot | Spigot | 1 | No |
| 7) | AFS009B | 4 Inch Hot Plate | Hot Plate | 1 | No |
| 8) | AFS1596 | Throat Plate | Throat Plate | 1 | No |
| 9) | AFS2985 | Liner 230 X 230 X 25 | Liner | 2 | No |
| 10) | AFS1094 | Liner (rear) | Liner | 1 | No |
| 11) | AFS1591 | Grate Bar Support | Grate Bar Support | 1 | No |
| 12) | AFS001 | Grate Bar | Grate Bar | 5 | No |
| 13) | AFS1594 | Comb With Riddle Pull Lever | Comb and Riddle Pull | 1 | No |
| 14) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 15) | AFS1273 | Ash Pan | Ash Pan | 1 | No |
| 16) | AFS1592 | Fuel Retainer | Fuel Retainer | 1 | No |
| 17) | AFS1579 | Primary Air Slider (pair) | Air Inlet | 1 | No |
| 18) | AFS1578 | Airwash Cover | Air Inlet | 1 | No |
| 19) | AFS1405 | Airwash Knob | Handles and Locks | 2 | No |
| 20) | AFS2775 | Hinge (right Hand) | Hinge | 2 | No |
| 21) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 22) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 23) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 1) | AIB7 | Add In Boiler - 1.2kw | Add In Boiler | 1 | Yes |
