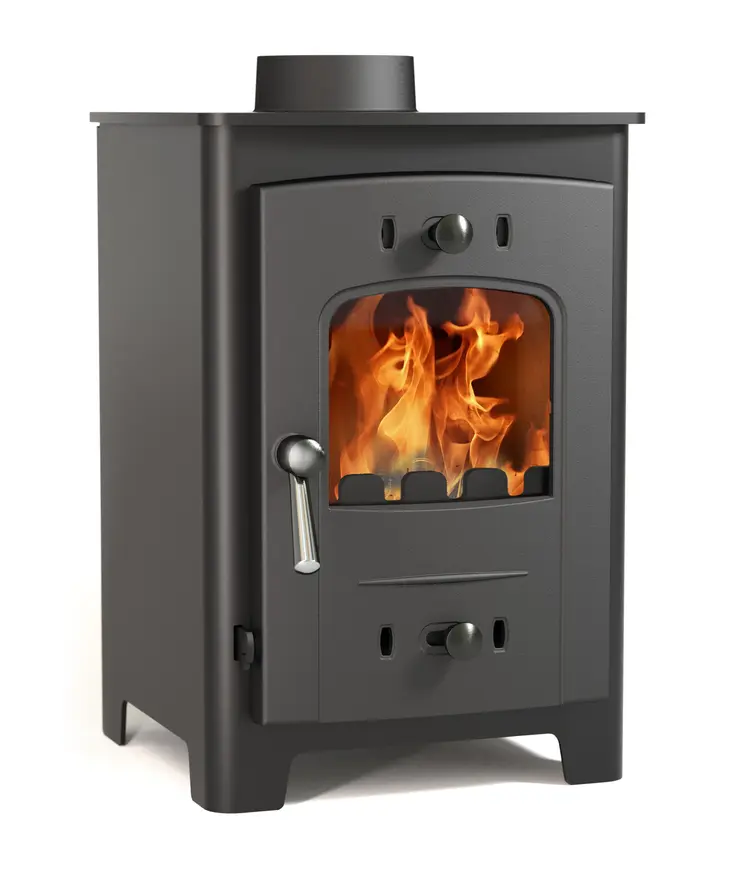

Hardy 4 Multifuel Series 4
[HARDY4M-S4] Hardy 4 Multifuel Series 4 (Hardy) technical information
Stove model code: HARDY4M-S4
Stove model production status: Discontinued
Information last updated : 08/11/2022
Documentation
| Title | Document type | BK number / revision | Document date |
| Hamlet stove User Guide | User Guide | BK540 / rev4 | 01-08-2017 |
| Hardy 4 / Hardy 5 | Declaration of Performance | - | - |
Dimensions
| Height (mm): | 468 |
| Width (mm): | 329 |
| Depth (mm): | 323 |
| Height (from top to centre of rear flue) (mm): | 370 |
| Height of stand (mm): | 200 |
| Depth (from back to centre of top flue) (mm): | 93.5 |
| Flue diameter (mm): | 102 |
| Weight - when packed (kg): | 39.5 |
| Ideal log length (mm): | 200 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 650 |
| Min. combustible distance to sides (mm): | 500 |
| Min. combustible distance above (mm): | 306 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 4 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Ten-year |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 4.2 |
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 4 |
| Nett Efficiency - wood (%): | 84.1 |
| Mean CO Emission - wood (%): | 0.87 |
Output - CE Test Figures
| CE rated nominal output kW: | 4.5 |
| CE rated min output kW: | 1.0 |
| CE rated max output kW: | 5.5 |
| CE rated under hearth temperature (deg.C): | 51.0 |
Boiler Tappings
| Boiler Tapping Measurement A (mm): | 208 |
| Boiler Tapping Measurement B (mm): | 191 |
| Boiler Tapping Measurement C (mm): | 287 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS3140 | Handle | Handles and Locks | 1 | No |
| 2) | AFS3800 | Fire Door Handle Assembly (stainless steel shaft, stainless steel handle) | Handles and Locks | 1 | No |
| 3) | AFS3395 | Complete Fire Door | Door | 1 | No |
| 4) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 5) | AFS1095 | Glass Kit | Glass and related parts | 1 | No |
| 6) | AFS009A | 4 Inch Flue Spigot | Spigot | 1 | No |
| 7) | AFS009B | 4 Inch Hot Plate | Hot Plate | 1 | No |
| 8) | AFS1596 | Throat Plate | Throat Plate | 1 | No |
| 9) | AFS2985 | Liner 230 X 230 X 25 | Liner | 2 | No |
| 10) | AFS1094 | Liner (rear) | Liner | 1 | No |
| 11) | AFS1591 | Grate Bar Support | Grate Bar Support | 1 | No |
| 12) | AFS2375 | Flexi Grate Bar - Small | Grate Bar | 5 | No |
| 13) | AFS1594 | Comb With Riddle Pull Lever | Comb and Riddle Pull | 1 | No |
| 14) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 15) | AFS1273 | Ash Pan | Ash Pan | 1 | No |
| 16) | AFS3560 | Fuel Retainer | Fuel Retainer | 1 | No |
| 17) | AFS1579 | Primary Air Slider (pair) | Air Inlet | 1 | No |
| 18) | AFS1578 | Airwash Cover | Air Inlet | 1 | No |
| 19) | AFS1405 | Airwash Knob | Handles and Locks | 2 | No |
| 20) | AFS2775 | Hinge (right Hand) | Hinge | 2 | No |
| 21) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 22) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 23) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 3) | AIB7 | Add In Boiler - 1.2kw | Add In Boiler | 1 | Yes |
