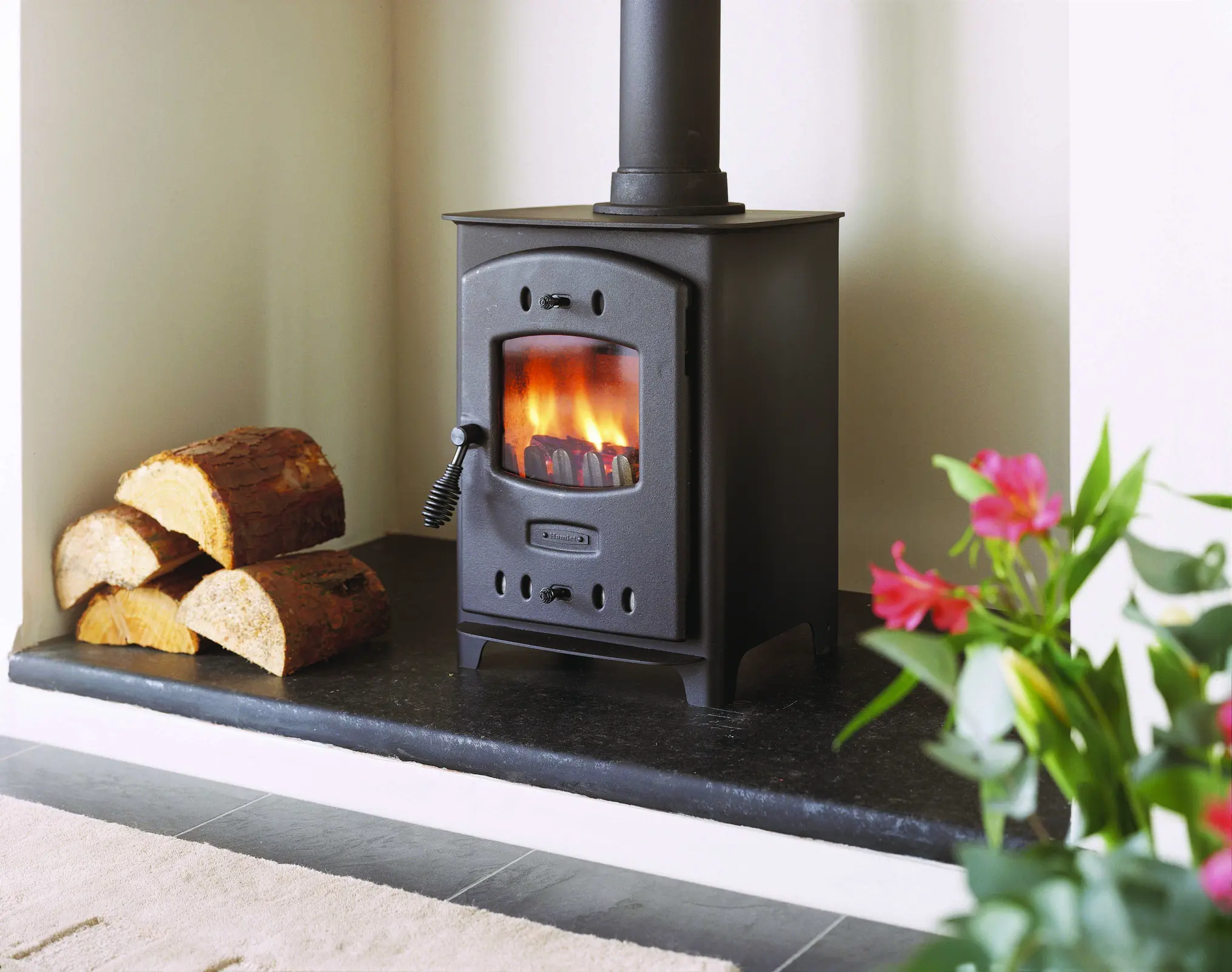

Hardy 5
[HARDY5] Hardy 5 (Hardy 5) technical information
Stove model code: HARDY5
Stove model production status: Discontinued
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 470 |
| Width (mm): | 385 |
| Depth (mm): | 345 |
| Height (from top to centre of rear flue) (mm): | 376 |
| Depth (from back to centre of top flue) (mm): | 96 |
| Flue diameter (mm): | 102 |
| Weight - when packed (kg): | 39 |
| Ideal log length (mm): | 200 |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 2) | AFS204 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 3) | AFS1119 | Complete Fire Door | Door | 1 | No |
| 4) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 5) | AFS1095 | Glass Kit | Glass and related parts | 1 | No |
| 6) | AFS009A | 4 Inch Flue Spigot | Spigot | 1 | No |
| 7) | AFS009B | 4 Inch Hot Plate | Hot Plate | 1 | No |
| 8) | AFS1018 | Throat Plate | Throat Plate | 1 | No |
| 9) | AFS2995 | Liner 210 X 230 X 25 | Liner | 2 | No |
| 10) | AFS1059 | Liner Set (rear) | Liner | 1 | No |
| 12) | AFS1078 | Grate | Glass and related parts | 1 | No |
| 14) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 18) | AFS1097 | Airwash Assembly | Air Inlet | 1 | No |
| 20) | AFS2775 | Hinge (right Hand) | Hinge | 2 | No |
| 21) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 22) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 23) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 24) | AFS1135 | Floor Fixing Kit | Accessories | 2 | No |
