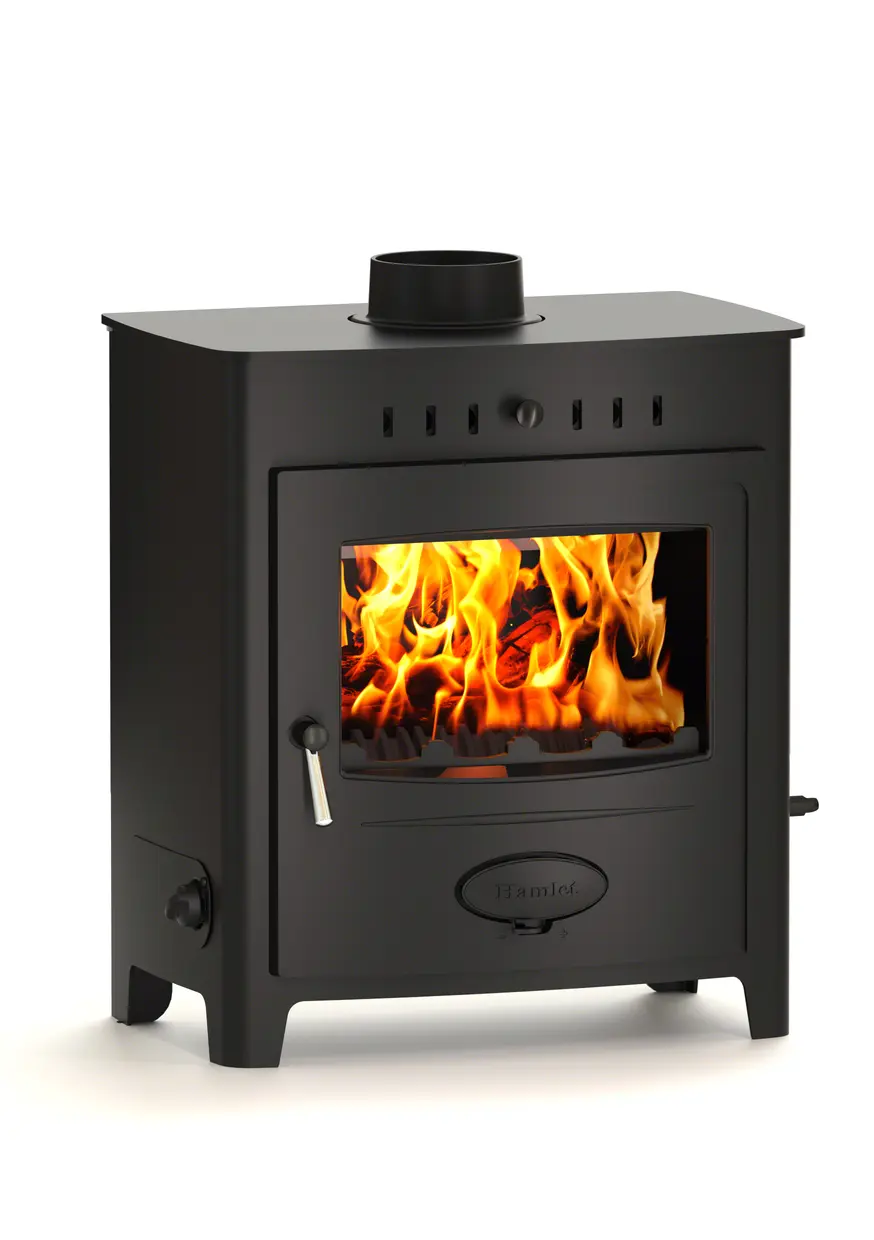

Solution Boiler 16
[HSB16] Solution Boiler 16 (Solution 16) technical information
Stove model code: HSB16
Stove model production status: Discontinued
First produced: June 2012
Last produced: September 2014
Information last updated : 04/12/2025
| Height (mm): | 603 |
| Width (mm): | 590 |
| Depth (mm): | 417 |
| Height (from top to centre of rear flue) (mm): | 504 |
| Height of stand (mm): | 125 |
| Depth (from back to centre of top flue) (mm): | 149 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 120 |
| Ideal log length (mm): | 380 |
| Min. combustible distance to rear (mm): | 180 |
| Min. combustible distance to sides (mm): | 240 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Wet |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Seven-year |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
| Output - wood (kW): | 13.6 |
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 7 |
| Output to water - wood - boiler stove (kW): | 13.5 |
| Output to water - wood - boiler stove (BTU): | 46089 |
| Nett Efficiency - wood (%): | 70.5 |
| Output to water - solid - boiler stove (kW): | 16 |
| Output to water - solid - boiler stove (BTU): | 54624 |
| Boiler Tapping Measurement A (mm): | 326 |
| Boiler Tapping Measurement B (mm): | 324 |
| Boiler Tapping Measurement C (mm): | 252 |
| Boiler Tapping Measurement D (mm): | 422 |
| Max Operating Pressure: | 3 |
| | Code | Name | Type | Quantity | Optional Extra? |
| 4) | AFS3165 | Safety Handle | Accessories | 1 | Yes |
