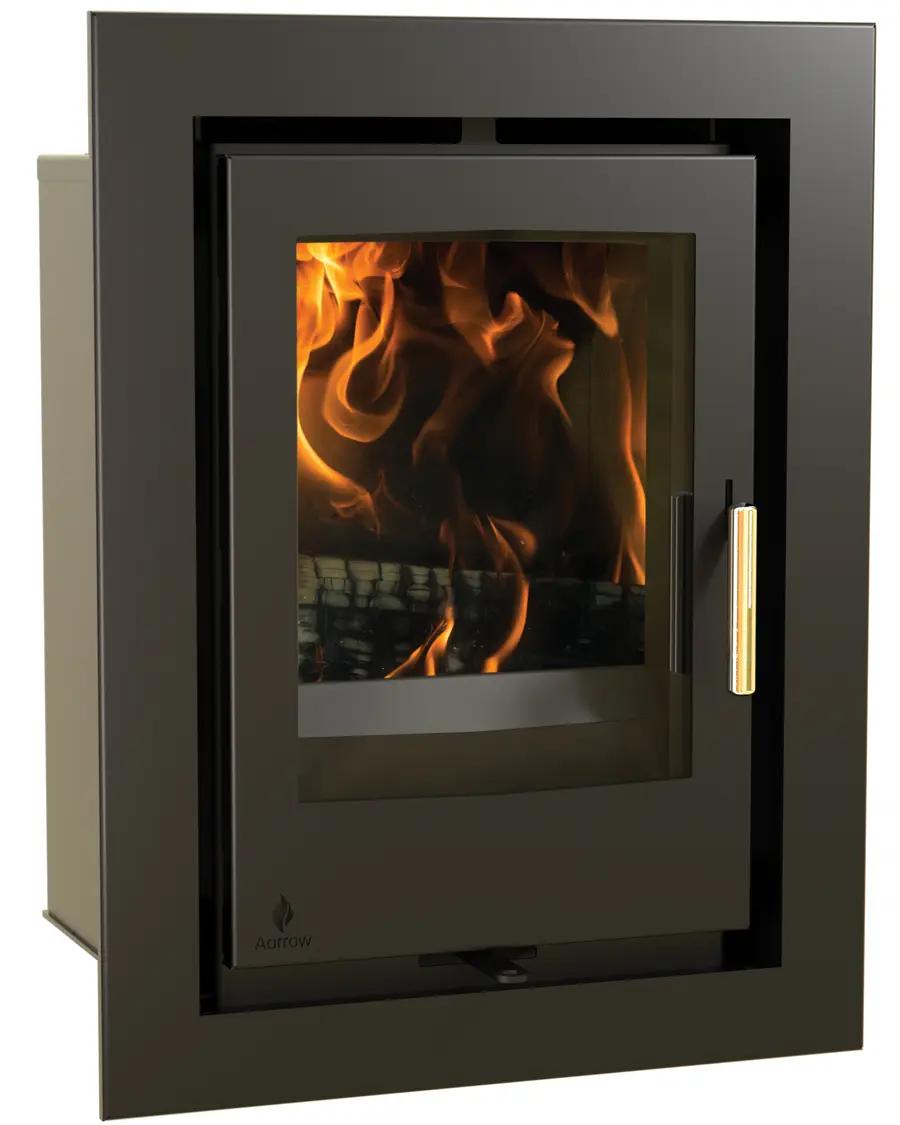

Image of Aarrow i400 stove

[I400] i400 (I Series) technical information

Stove model code: I400

Stove model production status: Discontinued

Information last updated : 08/11/2022


Height (mm):558
Width (mm):405
Depth (mm):407
Depth into fireplace (mm):351
Height into fireplace (mm):556
Width into fireplace (mm):405
Depth (from back to centre of top flue) (mm):100
Flue diameter (mm):127
Flue outlet type:Vertical Spigot
Weight - when packed (kg):59
Ideal log length (mm):255

Distances to combustibles

Min. combustible distance to sides (mm):220
Min. combustible distance above (mm):250
Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance.


Ecodesign Ready:No
Model Series / Generation:1
Wet or Dry stove:Dry
Burns wood fuel:Yes
Burns solid smokeless fuel:Yes
Gas stove:No
Suitable for Smoke Control Areas:Yes
Stove guarantee:Lifetime
Suitable for a 12mm constructional hearth:No
Suitable for direct air installation:No
Stove body type:Cassette

Output - Wood fuel

Output - wood (kW):6.1
Min. output - wood (kW):2
Max. output - wood (kW):8
Nett Efficiency - wood (%):79
Mean CO Emission - wood (%):0.19
Particulate Matter - wood (%):17.0

Output - CE Test Figures

CE rated nominal output kW:6.1
CE rated min output kW:1.5
CE rated max output kW:8.0

Parts list

 CodeNameTypeQuantityOptional Extra?
1)AFS2460Hinge (single - Right Hand) Hinge3No
2)AFS1690Fire Door Handle Assembly Handles and Locks1No
3)AFS1670Glass & Gasket Glass and related parts1No
4)AFS2605Fire Door Door1No
5)AFS2610Rope Kit Door Rope1No
6)AFS2245Flue Spigot Spigot1No
7)AFS1695Throat Plate Throat Plate1No
8)AFS1765Tertiary Air Bar Air Inlet1No
9)AFS1770Rear Liner Liner1No
10)AFS2630Liner Liner2No
12)AFS2375Flexi Grate Bar - Small Grate Bar7No
13)AFS2625Comb And Riddle Pull Assembly Comb and Riddle Pull1No
14)AFS008Operating Tool Operating Tool1No
15)AFS1735Ash Pan Ash Pan1No
16)AFS2315Fuel Retainer Fuel Retainer1No
2)TRIM014Trim For I400 3 Sided - Standard(30mm) Trim1Yes
2)TRIM004Trim For I400 3 Or 4 Sided - Wide (60mm) Trim1Yes
3)TRIM020Trim For I400 4 Sided - Standard (30mm) Trim1Yes
4)TRIM026Trim For I400 3 Sided - Wide (60mm) Trim1Yes
5)TRIM032Trim For I400 4 Sided - Wide (60mm) Trim1Yes
