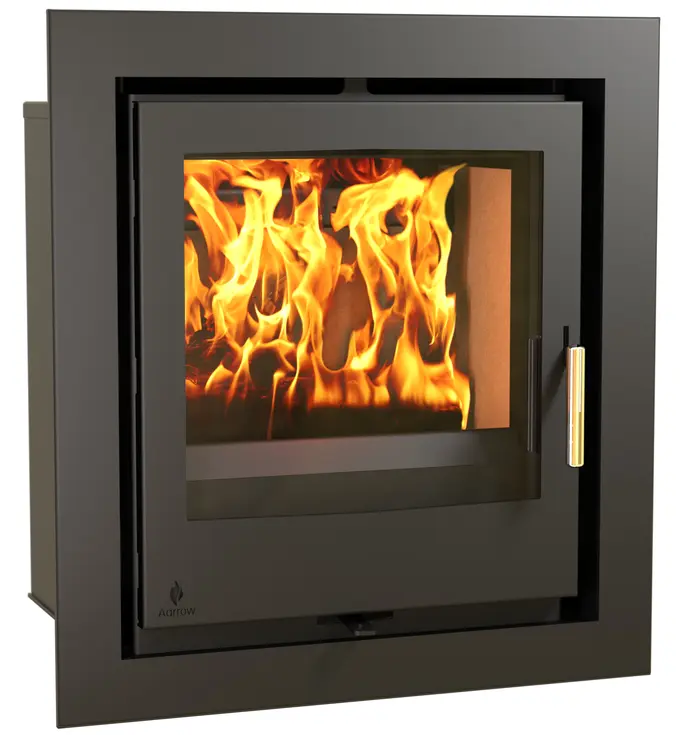

Image of Aarrow i500 stove

[I500] i500 (I Series) technical information

Stove model code: I500

Stove model production status: Discontinued

Information last updated : 08/11/2022


Height (mm):558
Width (mm):508
Depth (mm):407
Depth into fireplace (mm):351
Height into fireplace (mm):556
Width into fireplace (mm):508
Depth (from back to centre of top flue) (mm):100
Flue diameter (mm):127
Flue outlet type:Vertical Spigot
Weight - when packed (kg):75
Ideal log length (mm):350

Distances to combustibles

Min. combustible distance to sides (mm):150
Min. combustible distance above (mm):550
Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance.


Ecodesign Ready:No
Model Series / Generation:1
Wet or Dry stove:Dry
Burns wood fuel:Yes
Burns solid smokeless fuel:Yes
Gas stove:No
Suitable for Smoke Control Areas:Yes
Stove guarantee:Lifetime
Suitable for a 12mm constructional hearth:No
Suitable for direct air installation:No
Stove body type:Cassette

Output - Wood fuel

Output - wood (kW):6.4
Min. output - wood (kW):2
Max. output - wood (kW):9
Nett Efficiency - wood (%):77.4
Mean CO Emission - wood (%):0.14

Output - CE Test Figures

CE rated nominal output kW:6.4
CE rated min output kW:1.5
CE rated max output kW:9.0

Parts list

 CodeNameTypeQuantityOptional Extra?
1)AFS047Hinge Kit Hinge1No
2)AFS2450Fire Door Door1No
3)AFS2445Glass Kit Glass and related parts1No
4)AFS2245Flue Spigot Spigot1No
5)AFS2425Throat Plate Throat Plate1No
6)AFS2420Tertiary Air Bar Air Inlet1No
7)AFS1775Liner Liner2No
8)AFS2415Rear Liner Liner1No
9)AFS2410Grate Bar Support Grate Bar Support1No
10)AFS2375Flexi Grate Bar - Small Grate Bar10No
11)AFS2405Comb And Riddle Assembly Comb and Riddle Pull1No
12)AFS008Operating Tool Operating Tool1No
13)AFS2430Ashpan Ash Pan1No
14)AFS2440Handle Assembly Handles and Locks1No
15)AFS2435Fuel Retainer Fuel Retainer1No
2)TRIM016Trim For I500 3 Sided - Standard (30mm) Trim1Yes
2)TRIM005Standard Trim For I500 Trim1Yes
3)TRIM022Trim For I500 4 Sided - Standard (30mm) Trim1Yes
3)TRIM006Wide Trim For I500 Trim1Yes
4)TRIM028Trim I500 3 Sided - Wide (60mm) Trim1Yes
5)TRIM034Trim For I500 4 Sided - Wide (60mm) Trim1Yes
