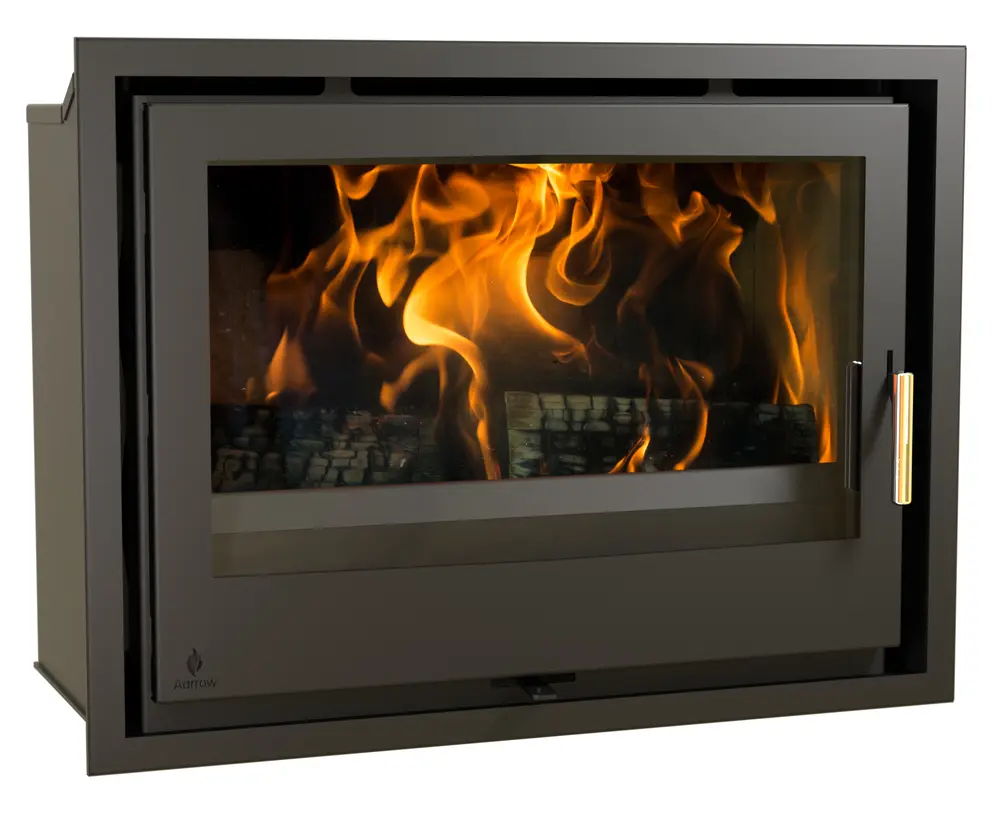

Image of Aarrow i750 stove

[I750] i750 (I Series) technical information

Stove model code: I750

Stove model production status: Discontinued

Information last updated : 08/11/2022


Height (mm):558
Width (mm):762
Depth (mm):407
Depth into fireplace (mm):351
Height into fireplace (mm):556
Width into fireplace (mm):760
Depth (from back to centre of top flue) (mm):100
Flue diameter (mm):127
Flue outlet type:Vertical Spigot
Weight - when packed (kg):108
Ideal log length (mm):600

Distances to combustibles

Min. combustible distance to sides (mm):150
Min. combustible distance above (mm):600
Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance.


Ecodesign Ready:No
Model Series / Generation:1
Wet or Dry stove:Dry
Burns wood fuel:Yes
Burns solid smokeless fuel:Yes
Gas stove:No
Suitable for Smoke Control Areas:Yes
Stove guarantee:Lifetime
Suitable for a 12mm constructional hearth:No
Suitable for direct air installation:No
Stove body type:Cassette

Output - Wood fuel

Output - wood (kW):8.9
Min. output - wood (kW):2.5
Max. output - wood (kW):12
Nett Efficiency - wood (%):77.5
Mean CO Emission - wood (%):0.27

Output - CE Test Figures

CE rated nominal output kW:8.9
CE rated min output kW:2.5
CE rated max output kW:12.0

Parts list

 CodeNameTypeQuantityOptional Extra?
1)AFS2460Hinge (single - Right Hand) Hinge3No
2)AFS2455Fire Door Door1No
3)AFS2465Glass Kit Glass and related parts1No
4)AFS2245Flue Spigot Spigot1No
5)AFS2495Throat Plate Throat Plate1No
6)AFS2500Tertiary Air Bar Air Inlet1No
7)AFS2490 Liner Liner2No
8)AFS1775Liner Liner2No
9)AFS2485Grate Bar Support Grate Bar Support1No
10)AFS2375Flexi Grate Bar - Small Grate Bar17No
11)AFS2475Comb And Riddle Pull Comb and Riddle Pull1No
12)AFS008Operating Tool Operating Tool1No
13)AFS2470Ashpan Ash Pan1No
14)AFS2480Fuel Retainer Fuel Retainer1No
15)AFS2440Handle Assembly Handles and Locks1No
2)TRIM018Trim For I750 3 Sided - Standard (30mm) Trim1Yes
3)TRIM024Trim For I750 4 Sided - Standard (30mm) Trim1Yes
3)TRIM012Wide Trim For I750 Trim1Yes
4)TRIM030Trim For I750 3 Sided - Wide (60mm) Trim1Yes
5)TRIM036Trim For I750 4 Sided - Wide (60mm) Trim1Yes
