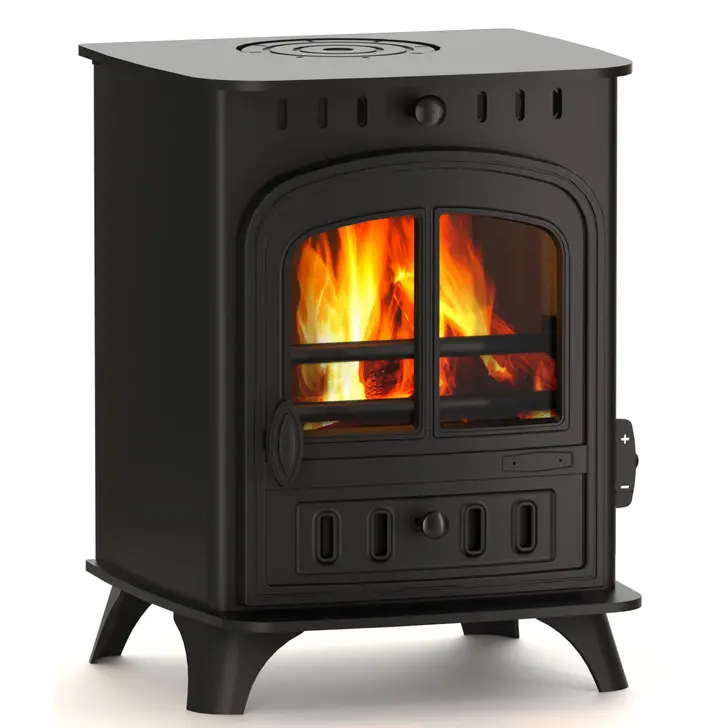

Sherborne Compact Multifuel Series 2

[SHBCM-G2] Sherborne Compact Multifuel Series 2 (Sherborne Compact) technical information
Stove model code: SHBCM-G2
Stove model production status: Discontinued
First produced: April 2012
Last produced: February 2013
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 505 |
| Width (mm): | 385 |
| Depth (mm): | 360 |
| Height (from top to centre of rear flue) (mm): | 400 |
| Height of stand (mm): | 200 |
| Depth (from back to centre of top flue) (mm): | 102 |
| Flue diameter (mm): | 102 |
| Weight - when packed (kg): | 54 |
| Ideal log length (mm): | 254 |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 4 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AIB0 | Add In Boiler - 1.8kw | Add In Boiler | 1 | Yes |
| 4) | AOCXSL | Add On Low Canopy For B5mu 5 Gas New Style | Canopy | 1 | Yes |
