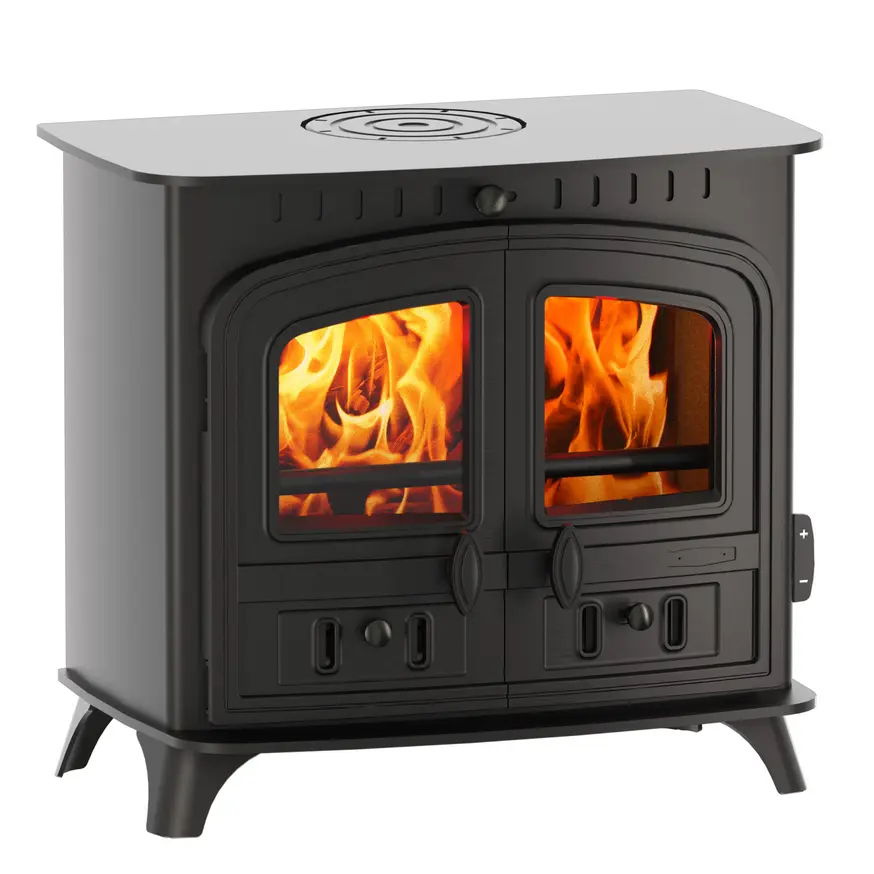

Sherborne Medium Multifuel Series 2

[SHBMM-G2] Sherborne Medium Multifuel Series 2 (Sherborne Medium) technical information
Stove model code: SHBMM-G2
Stove model production status: Discontinued
First produced: July 2012
Last produced: February 2013
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 530 |
| Width (mm): | 586 |
| Depth (mm): | 364 |
| Height (from top to centre of rear flue) (mm): | 415 |
| Height of low canopy (mm): | 195 |
| Height of high canopy (mm): | 285 |
| Height of stand (mm): | 200 |
| Depth (from back to centre of top flue) (mm): | 105 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 88 |
| Ideal log length (mm): | 380 |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 8 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AIB9 | Add In Boiler - 2.6kw | Add In Boiler | 1 | Yes |
| 4) | AOCML | Add On Low Canopy | Canopy | 1 | Yes |
| 5) | AOCMH | Add On High Canopy | Canopy | 1 | Yes |
