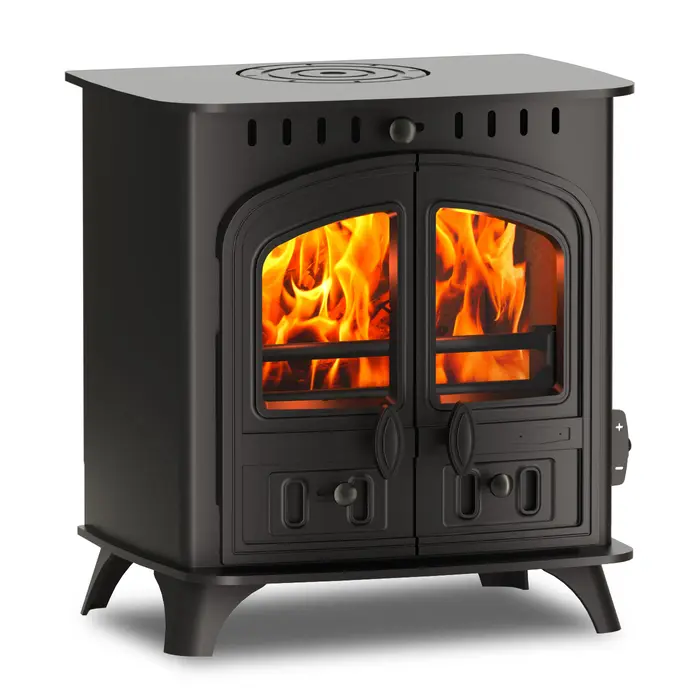

Sherborne Small Multifuel Series 2
[SHBSM-G2] Sherborne Small Multifuel Series 2 (Sherborne Medium) technical information
Stove model code: SHBSM-G2
Stove model production status: Discontinued
First produced: June 2012
Last produced: February 2013
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 512 |
| Width (mm): | 477 |
| Depth (mm): | 360 |
| Height (from top to centre of rear flue) (mm): | 400 |
| Height of low canopy (mm): | 180 |
| Height of high canopy (mm): | 245 |
| Height of stand (mm): | 200 |
| Depth (from back to centre of top flue) (mm): | 103 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 68 |
| Ideal log length (mm): | 300 |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Min. output - wood (kW): | 1.5 |
| Max. output - wood (kW): | 5 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AIB8 | Add In Boiler - 2.0kw | Add In Boiler | 1 | Yes |
| 4) | AOCSL | Add On Low Canopy For Shbsm B7mu 7gas New Style | Canopy | 1 | Yes |
| 5) | AOCSH | Add On High Canopy | Canopy | 1 | Yes |
