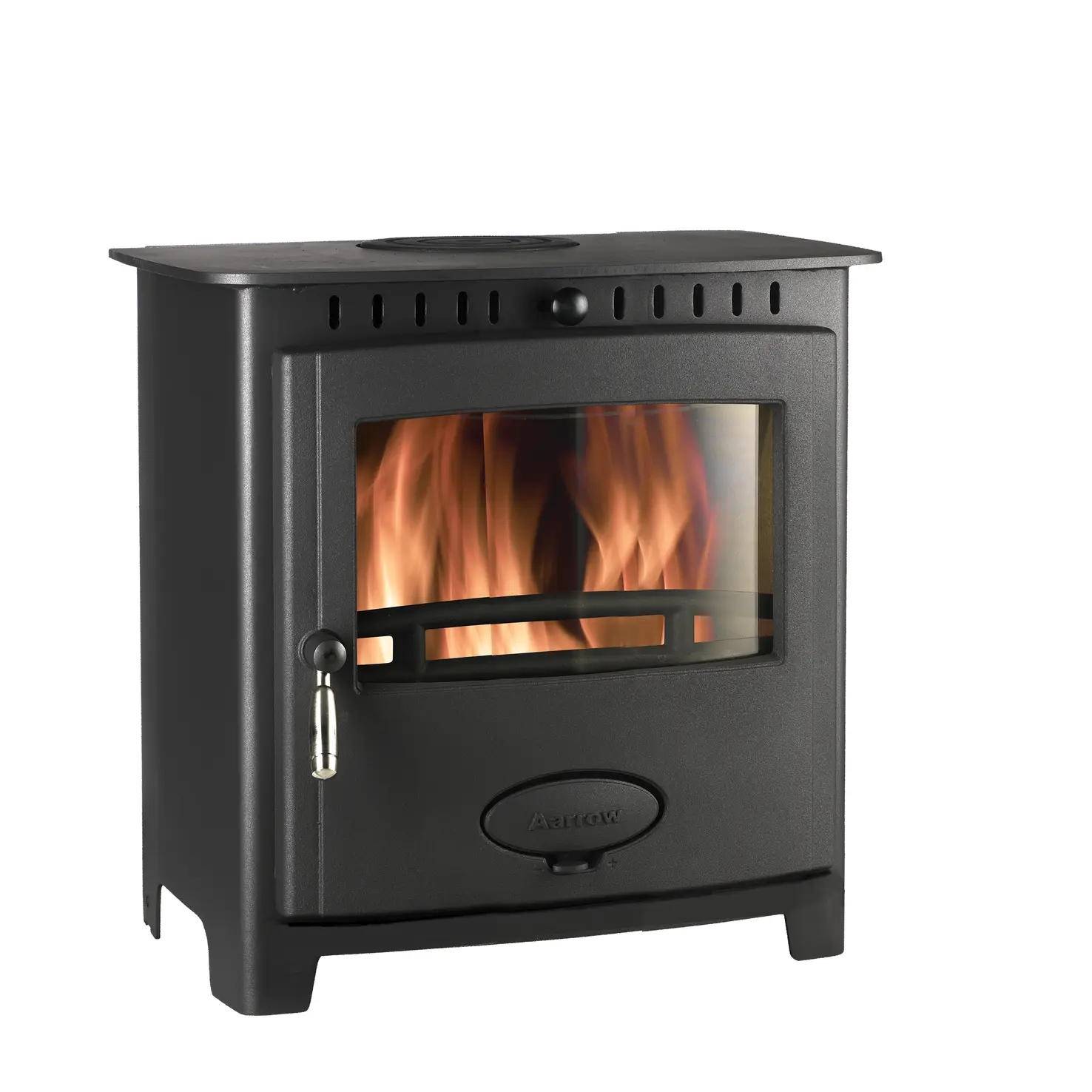

Signature 9
[SIGN9F] Signature 9 (Signature 9) technical information
Stove model code: SIGN9F
Stove model production status: Discontinued
First produced: April 2012
Last produced: April 2012
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 620 |
| Width (mm): | 598 |
| Depth (mm): | 390 |
| Height (from top to centre of rear flue) (mm): | 512 |
| Height of stand (mm): | 85 |
| Height of log store (mm): | 241 |
| Depth (from back to centre of top flue) (mm): | 122 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 95 |
| Ideal log length (mm): | 380 |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 9 |
| Nett Efficiency - wood (%): | 74.6 |
| Mean CO Emission - wood (%): | 0.00 |
Output - CE Test Figures
| CE rated nominal output kW: | 0.0 |
| CE rated min output kW: | 0.0 |
| CE rated max output kW: | 0.0 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 3) | AFS1135 | Floor Fixing Kit | Accessories | 1 | Yes |
| 4) | SIGN9-TRACEL | Tracery Lattice - Sign9m | Accessories | 1 | Yes |
| 5) | SIGN9-STAND | Stand - Sign9 | Wood Burning Tray | 1 | Yes |
| 6) | SIGN9-LOGSTORE | Logstore For Sign9 | Log Store | 1 | Yes |
| 7) | AIB13 | Add In Boiler - 3.0kw | Add In Boiler | 1 | Yes |
