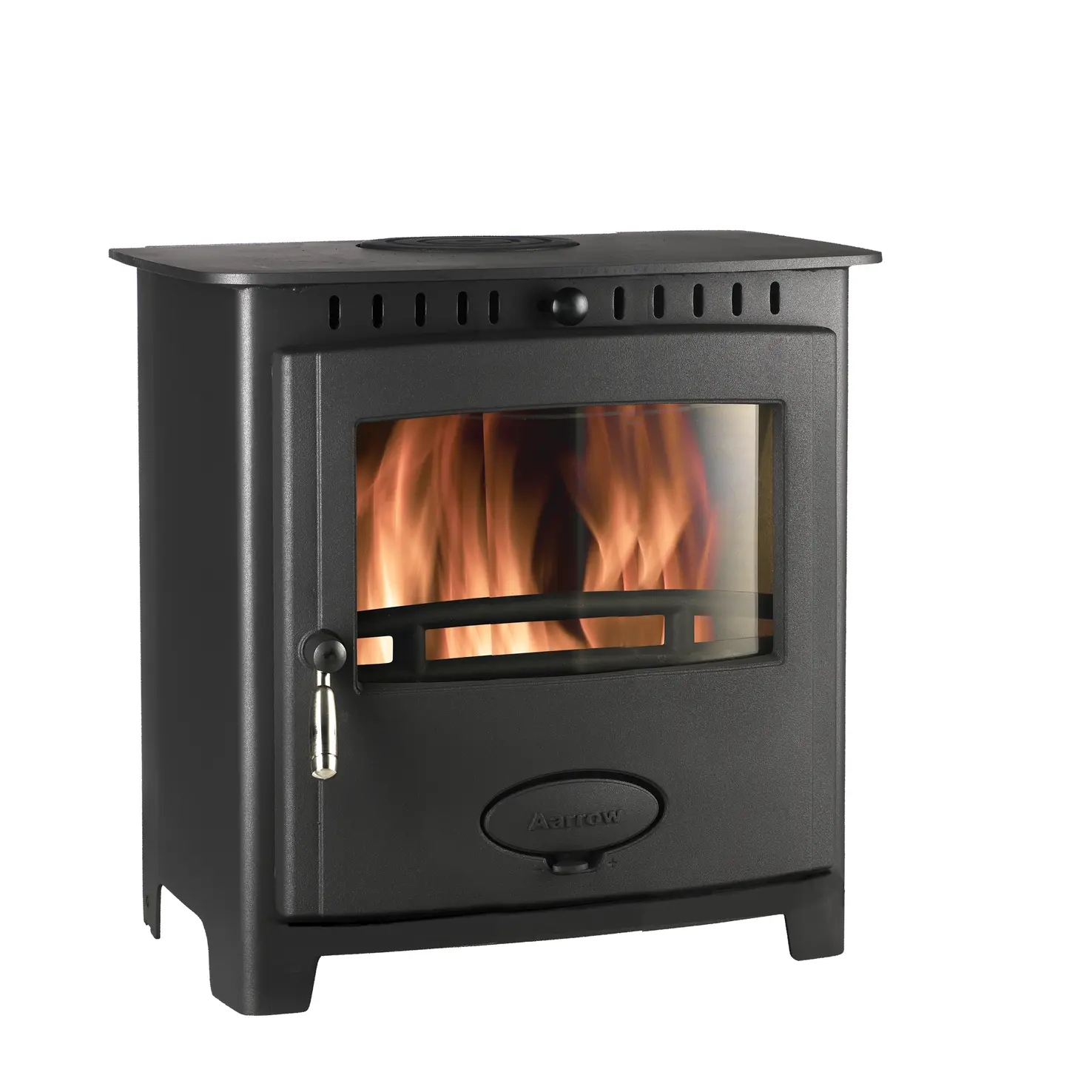

Signature 9 Multifuel Series 2
[SIGN9M-S2] Signature 9 Multifuel Series 2 (Signature 9) technical information
Stove model code: SIGN9M-S2
Stove model production status: Discontinued
First produced: June 2011
Last produced: June 2011
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 620 |
| Width (mm): | 598 |
| Depth (mm): | 390 |
| Height (from top to centre of rear flue) (mm): | 512 |
| Height of stand (mm): | 85 |
| Height of log store (mm): | 241 |
| Depth (from back to centre of top flue) (mm): | 122 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 95 |
| Ideal log length (mm): | 457 |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | No |
| Burns solid smokeless fuel: | No |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
Output - Wood fuel
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 9 |
| Nett Efficiency - wood (%): | 74.6 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1439 | (obsolete) Operating & Installation Manual Signature Range | Miscellaneous | 1 | No |
| 1) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 1) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 1) | AFS1021 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | SIGN9-TRACEL | Tracery Lattice - Sign9m | Accessories | 1 | No |
| 1) | AFS1279 | Hinge Kit | Hinge | 1 | No |
| 1) | AFS1514 | Throat Plate | Throat Plate | 1 | No |
| 1) | AFS1309 | Ash Pan | Ash Pan | 1 | No |
| 1) | AFS1515 | Liner Set (rear) | Liner | 1 | No |
| 1) | AFS1365 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS1516 | Liner Set (side) | Liner | 1 | No |
| 1) | AFS1378 | Fuel Retainer | Fuel Retainer | 1 | No |
| 1) | AFS1517 | Liner Set | Liner | 1 | No |
| 1) | AFS1385 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | AFS1518 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS1386 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS1519 | Complete Fire Door | Door | 1 | No |
| 1) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 1) | AFS1521 | Primary Air Controls | Air Inlet | 1 | No |
| 1) | AFS1135 | Floor Fixing Kit | Accessories | 1 | No |
| 1) | AIB13 | Add In Boiler - 3.0kw | Add In Boiler | 1 | No |
| 1) | AFS2460 | Hinge (single - Right Hand) | Hinge | 1 | No |
| 1) | AFS008 | Operating Tool | Operating Tool | 1 | No |
