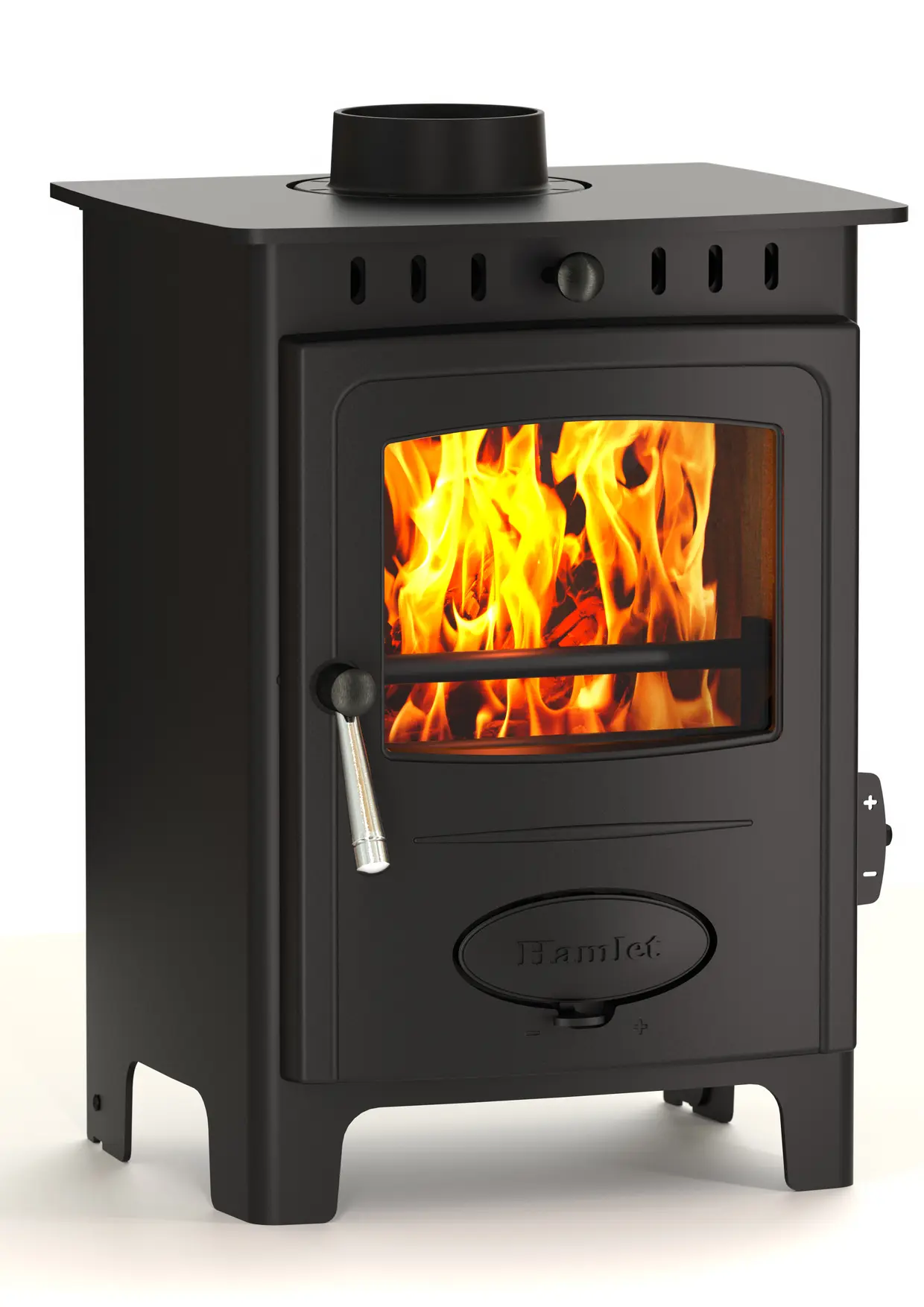

Solution 5 Multifuel CE
[SOL5MCE] Solution 5 Multifuel CE (Solution 5) technical information
Stove model code: SOL5MCE
Stove model production status: Discontinued
First produced: October 2011
Last produced: October 2011
Information last updated : 04/12/2025
Dimensions
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | No |
| Burns solid smokeless fuel: | No |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS3140 | Handle | Handles and Locks | 1 | No |
| 2) | AFS3135 | Handle Assembly | Handles and Locks | 1 | No |
| 3) | AFS1294 | Fire Door Complete | Door | 1 | No |
| 4) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 5) | AFS1214 | Glass Kit | Glass and related parts | 1 | No |
| 6) | AFS009A | 4 Inch Flue Spigot | Spigot | 1 | No |
| 7) | AFS009B | 4 Inch Hot Plate | Hot Plate | 1 | No |
| 8) | AFS1286 | Throat Plate | Throat Plate | 1 | No |
| 9) | AFS2995 | Liner 210 X 230 X 25 | Liner | 2 | No |
| 10) | AFS1059 | Liner Set (rear) | Liner | 1 | No |
| 11) | AFS1327 | Grate Bar Support (gbs001) | Grate Bar Support | 1 | No |
| 12) | AFS1412 | +/- Bracket With Fixings | Miscellaneous | 1 | No |
| 13) | AFS2705 | Self Levelling Feet | Feet | 2 | No |
| 14) | AFS001 | Grate Bar | Grate Bar | 5 | No |
| 15) | AFS1323 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 16) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 17) | AFS058 | Ash Pan | Ash Pan | 1 | No |
| 18) | AFS1190 | Fuel Retainer Bar | Fuel Retainer | 2 | No |
| 19) | AFS2460 | Hinge (single - Right Hand) | Hinge | 2 | No |
| 20) | AFS1368 | Primary Air Controls | Air Inlet | 1 | No |
| 21) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 22) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 23) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 24) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 6) | AIB0 | Add In Boiler - 1.8kw | Add In Boiler | 1 | Yes |
| 7) | AFS1135 | Floor Fixing Kit | Accessories | 1 | Yes |
| 8) | AFS3165 | Safety Handle | Accessories | 1 | Yes |
