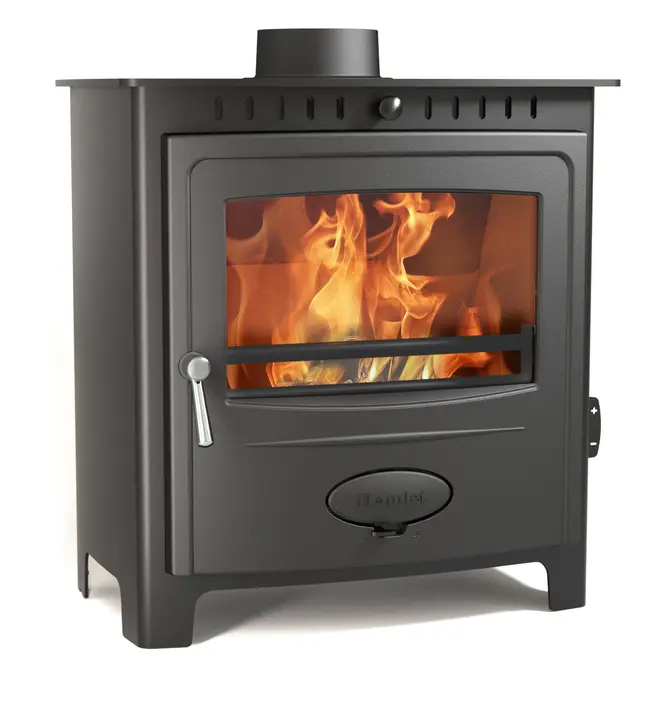

Solution 9 Multifuel CE Series 2
[SOL9MCE-S2] Solution 9 Multifuel CE Series 2 (Solution 9) technical information
Stove model code: SOL9MCE-S2
Stove model production status: Discontinued
Information last updated : 08/11/2022
Documentation
| Title | Document type | BK number / revision | Document date |
| Hamlet stove User Guide | User Guide | BK540 / rev4 | 01-08-2017 |
| Solution 9 | Declaration of Performance | - | - |
Dimensions
| Height (mm): | 600 |
| Width (mm): | 586 |
| Depth (mm): | 396 |
| Height (from top to centre of rear flue) (mm): | 485 |
| Height of low canopy (mm): | 195 |
| Height of high canopy (mm): | 285 |
| Height of stand (mm): | 100 |
| Depth (from back to centre of top flue) (mm): | 103 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 79 |
| Ideal log length (mm): | 457 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 750 |
| Min. combustible distance to sides (mm): | 500 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Ten-year |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 8.8 |
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 9 |
| Nett Efficiency - wood (%): | 71.6 |
Boiler Tappings
| Boiler Tapping Measurement A (mm): | 267 |
| Boiler Tapping Measurement B (mm): | 369 |
| Boiler Tapping Measurement C (mm): | 359 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS3140 | Handle | Handles and Locks | 1 | No |
| 2) | AFS3135 | Handle Assembly | Handles and Locks | 1 | No |
| 3) | AFS2950 | Complete Fire Door | Door | 1 | No |
| 4) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 5) | AFS1216 | Glass Kit | Glass and related parts | 1 | No |
| 6) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 7) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 8) | AFS1195 | Throat Plate | Throat Plate | 1 | No |
| 9) | AFS2980 | Liner 280 X 210 X 25 | Liner | 2 | No |
| 10) | AFS3010 | Liner 162 X 235 X 25 | Liner | 2 | No |
| 11) | AFS1329 | Grate Bar Support | Grate Bar Support | 1 | No |
| 12) | AFS1412 | +/- Bracket With Fixings | Miscellaneous | 1 | No |
| 13) | AFS2705 | Self Levelling Feet | Feet | 2 | No |
| 14) | AFS001 | Grate Bar | Grate Bar | 9 | No |
| 15) | AFS1325 | Comb & Extension Bar | Comb and Riddle Pull | 1 | No |
| 16) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 17) | AFS1309 | Ash Pan | Ash Pan | 1 | No |
| 18) | AFS1191 | Fuel Retainer Bar | Fuel Retainer | 2 | No |
| 20) | AFS1369 | Primary Air Controls | Air Inlet | 1 | No |
| 21) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 22) | AFS2460 | Hinge (single - Right Hand) | Hinge | 2 | No |
| 23) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 24) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 25) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 6) | AIB9 | Add In Boiler - 2.6kw | Add In Boiler | 1 | Yes |
| 7) | AFS1135 | Floor Fixing Kit | Accessories | 1 | Yes |
| 8) | AFS3165 | Safety Handle | Accessories | 1 | Yes |
