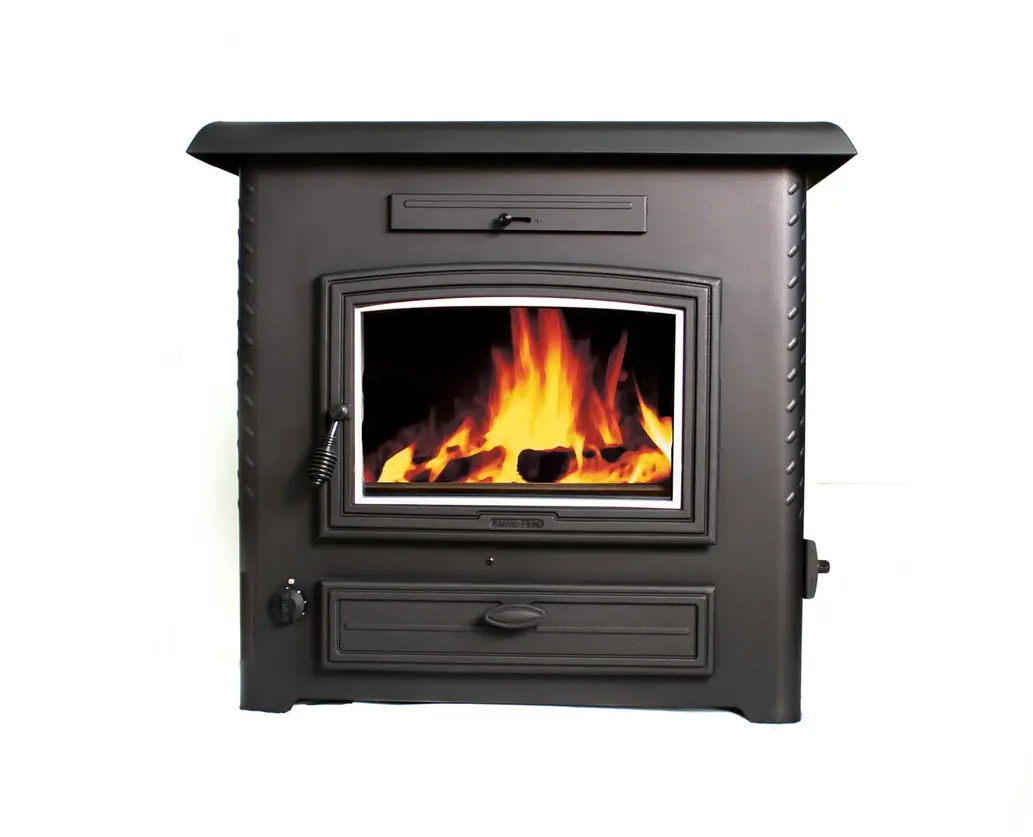

TF70 Multifuel Boiler
[TF70B] TF70 Multifuel Boiler (TF) technical information
Stove model code: TF70B
Stove model production status: Discontinued
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 709 |
| Width (mm): | 780 |
| Depth (mm): | 486 |
| Height (from top to centre of rear flue) (mm): | 555 |
| Depth (from back to centre of top flue) (mm): | 172 |
| Flue diameter (mm): | 152 |
| Weight - when packed (kg): | 176 |
| Ideal log length (mm): | 500 |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Wet |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
Output - Wood fuel
| Output - wood (kW): | 3.5 |
| Output to room - wood - boiler stove (kW): | 17.5 |
| Max. output - wood (kW): | 21 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS015A | Long Interlock | Grate Bar | 1 | No |
| 1) | AFS096 | Door Trim (silver) | Door | 1 | No |
| 1) | AFS172A | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 1) | AFS020A | Thermostat | Boiler Thermostat | 1 | No |
| 1) | AFS096A | Door Trim (anthracite) | Door | 1 | No |
| 1) | AFS1554 | Ashpit Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | AFS021 | Thermostat Damper Flap | Boiler Thermostat | 1 | No |
| 1) | AFS096G | Door Trim (gold) | Door | 1 | No |
| 1) | AFS022 | Thermostat Knob | Boiler Thermostat | 1 | No |
| 1) | AFS1077 | Airwash Assembly | Air Inlet | 1 | No |
| 1) | AFS034 | Throat Plate | Throat Plate | 1 | No |
| 1) | AFS153 | Fuel Retainer | Fuel Retainer | 1 | No |
| 1) | AFS034B | Throat Plate | Throat Plate | 1 | No |
| 1) | AFS201 | Complete Fire Door | Door | 1 | No |
| 1) | AFS046 | Complete Ashpit Door | Door | 1 | No |
| 1) | AFS204 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | AFS002 | Grate Bar | Grate Bar | 1 | No |
| 1) | AFS052A | Ash Pan | Ash Pan | 1 | No |
| 1) | AFS205 | Handle (kooler To Touch) | Handles and Locks | 1 | No |
| 1) | AFS007 | Fire Bed Surround | Fire Bed Surround | 1 | No |
| 1) | AFS068A | (obsolete) Comb With Extension | Comb and Riddle Pull | 1 | No |
| 1) | AFS002/OLD | Grate Bar *old Style* (ngb2b) | Grate Bar | 1 | No |
| 1) | AFS011 | 6 Inch Flue Spigot | Spigot | 1 | No |
| 1) | AFS090 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS048 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS012 | 6 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | AFS091 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS082A | Grate Bar Support | Grate Bar Support | 1 | No |
