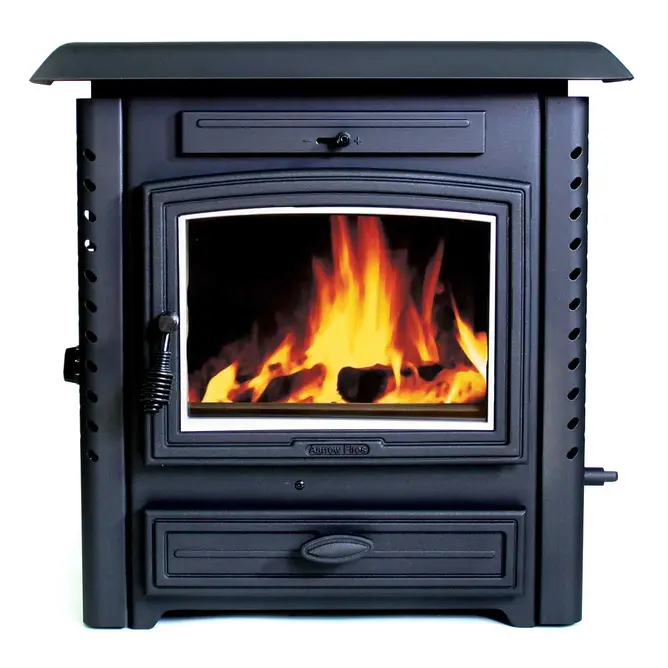

TI40 Multifuel Inset Boiler
[TI40B] TI40 Multifuel Inset Boiler (Ti40 Inset) technical information
Stove model code: TI40B
Stove model production status: Discontinued
Information last updated : 04/12/2025
Dimensions
| Height (mm): | 594 |
| Width (mm): | 572 |
| Depth into fireplace (mm): | 360 |
| Height into fireplace (mm): | 550 |
| Width into fireplace (mm): | 394 |
| Depth of front fascia - Inset (mm): | 180 |
| Depth (from back to centre of top flue) (mm): | 105 |
| Flue diameter (mm): | 127 |
| Ideal log length (mm): | 355 |
Features
| Current Stove: | No |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Wet |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Inset |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS022 | Thermostat Knob | Boiler Thermostat | 1 | No |
| 1) | AFS200 | Complete Fire Door | Door | 1 | No |
| 1) | AFS023 | Thermostat | Boiler Thermostat | 1 | No |
| 1) | AFS204 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | AFS032 | Throat Plate | Throat Plate | 1 | No |
| 1) | AFS205 | Handle (kooler To Touch) | Handles and Locks | 1 | No |
| 1) | AFS054 | Ash Pan | Ash Pan | 1 | No |
| 1) | AFS003/OLD | (obsolete) Grate Bar ***old Style*** | Grate Bar | 1 | No |
| 1) | AFS062 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 1) | AFS048 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS088 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS1554 | Ashpit Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | AFS089 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS003 | Grate Bar | Grate Bar | 1 | No |
| 1) | AFS095 | Door Trim (silver) | Door | 1 | No |
| 1) | AFS007 | Fire Bed Surround | Fire Bed Surround | 1 | No |
| 1) | AFS1077 | Airwash Assembly | Air Inlet | 1 | No |
| 1) | AFS015A | Long Interlock | Grate Bar | 1 | No |
| 1) | AFS1147 | (obsolete) Trims | Trim | 1 | No |
| 1) | AFS021 | Thermostat Damper Flap | Boiler Thermostat | 1 | No |
| 1) | AFS152 | Fuel Retainer | Fuel Retainer | 1 | No |
