Solution 5 Inset (S5)

NEW FOR 2025

5kW Multi fuel (wood or solid smokeless fuel) stove with an inset-style body

Ecodesign Ready and with a classic look. This generation of Solution stoves produces the equivalent heat output of previous Solution models whilst using less fuel than ever before.

This inset-bodied stove is multi fuel allowing you to burn seasoned wood or solid smokeless fuel. The Solution 5 Inset stove is is easy to control and certain to keep your home warm and cosy.

Series 5 exclusive features
This new Series 5 inset stove model now boasts additional features not seen on older models.

Firstly, we have replaced existing vermiculite liners for cast porcelainite firebox liners. These new liners are more robust and will also naturally stay cleaner after each burn.

Secondly, the original door pin latch has been replaced with roller catch latch for a much smoother closing/opening action.

GET BROCHURE

WHERE TO BUY

FEATURES
SPECIFICATIONS
TECHNICAL
OPTIONAL EXTRAS

FEATURES

10 year guarantee
Ecodesign
Burns wood or solid smokeless fuels
Laser-profiled and seam-welded 4mm steel construction
Available in multiple colours
'Exempt appliance' - suitable for use in Smoke Control Areas

Stainless steel baffle and ash pan
Cast porcelainite firebox liners
Preheated airwash system for clean glass
Roller catch door mechanism
Externally controlled riddling grate

Optional Extras

Safety handle

SPECIFICATIONS

Output:5 kW (Solid) 5 kW (Wood)

Energy Efficiency:76 % (Solid) 79.9 % (Wood)

Energy Rating:E (Solid) A (Wood)

Code:SOL5-INSET-S5

Width:517mm

Height:580mm

Depth:469mm

TECHNICAL

Installation Guide

Room heater / Dry Stove Installation Guide

BK545-rev15

04/09/25

User Guide

Hamlet Solution Inset (S5) Stove User Guide

BK789-rev1

14/10/25

Declaration of Conformity

Solution 5 Inset (S5) UKCA Declaration of Conformity

04/02/26

Technical Specification / Product Fiche

Solution 5 Inset (S5)

BK999

16/09/25

Declaration of Performance

Solution 5 Inset / 7 Inset (S5)

18/02/25

EEI (Energy Rating) Label

Solution 5 Inset (S5) UK EEI

Additional Information

Solution 5 Inset (S5) stove dimensions (inc spigot) diagram

08/01/26

OPTIONAL EXTRAS

Optional Extras

Safety Handle

AFS3165

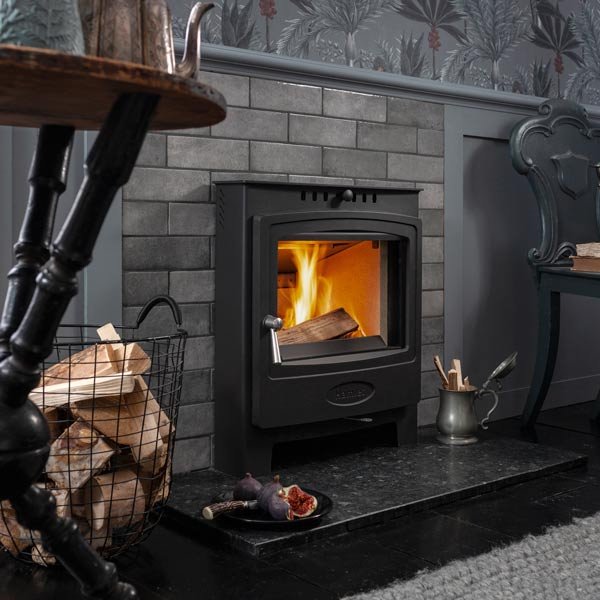

Solution 7 Inset shown

Colour options

Original

Metallics

The BOLD Edit

The EARTH Collection

Please note that BOLD EDIT and EARTH COLLECTION paints are not suitable for use on single skin flue connection pipe when used with wood fuel or solid smokeless fuel stoves.
