Solution 5 Widescreen (S5)

NEW FOR 2025

4.9kW Multi fuel (wood or solid smokeless fuel) stove

Part of the Solution range that combines a traditional stove appearance with Ecodesign Ready credentials.

This Widescreen stove has a large door glass with a beautiful flame view.

This is a stylish and easy-to-use heating companion for the home.

Series 5 exclusive features
This new Series 5, Solution 5 Widescreen stove model now boasts additional features not seen on older models.

Firstly, we have replaced existing vermiculite liners for cast porcelainite firebox liners.  These new liners are more robust and will also naturally stay cleaner after each burn.

Secondly, the original door pin latch has been replaced with roller catch latch for a much smoother closing/opening action.

Thirdly, we have now added optional Log Store and stove Stands. These options feature an integrated ash lip and increase the visibility of the stove and also add practical operating tool or log or kindling storage capacity where its needed.





FEATURES

  • 10 year guarantee
  • Ecodesign
  • Burns wood or solid smokeless fuels
  • Laser-profiled and seam-welded 4mm steel construction
  • Available in multiple colours
  • 'Exempt appliance' - suitable for use in Smoke Control Areas
  • Stainless steel baffle and ash pan
  • Cast porcelainite firebox liners
  • Top or rear 127mm (5inch) flue outlet
  • Preheated airwash system for clean glass
  • Roller catch door mechanism
  • Externally controlled riddling grate

Optional Extras

  • Log Store (extends stove height by 400mm)
  • Stand (extends stove height by 250 mm)
  • Rear heat shield for closer positioning to non-combustible materials
  • Safety handle
  • Direct Air connection with combined rear heat shield

SPECIFICATIONS

Output:5 kW (Solid) 5 kW (Wood)

Energy Efficiency:79.4 % (Solid) 82.5 % (Wood)

Energy Rating:E (Solid) A+ (Wood)

Code:SOL5WS-S5

Width:519mm

Height:551mm

Depth:387mm

TECHNICAL

Installation Guide

User Guide

Technical Specification / Product Fiche

Declaration of Performance

EEI (Energy Rating) Label

OPTIONAL EXTRAS

Optional Extras

1
Arada gauntlet gloves (pair)
ARA055
2
Log store for solution 5 ws / solution 7
LOG-SOL5WS/7
3
SOL5WS-S4 / SOL7-S4 DIRECT AIR / HEATSHIELD
AFS4667
4
Safety Handle
AFS3165
5
Sol5ws-s4 / sol7-s4 heatshield
AFS4673
6
Stand for solution 5 ws / solution 7
STAND-SOL5WS/7
NEW MULTI FUEL

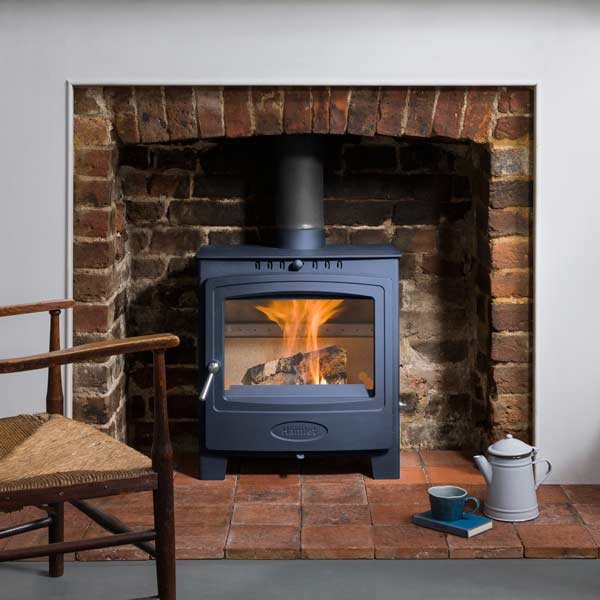

Solution 5 Widescreen in Atlantic Blue
Solution 5 Widescreen in Atlantic Blue

Colour options

Find out more..

Original

The BOLD Edit

The EARTH Collection

Please note that BOLD EDIT and EARTH COLLECTION paints are not suitable for use on single skin flue connection pipe when used with wood fuel or solid smokeless fuel stoves.
