Ecoburn 7 (S3)

7kW Multi fuel (wood or solid smokeless fuel) stove

Part of the Ecoburn range featuring the latest and best new Arada heating technology that combines a traditional stove appearance with Ecodesign Ready credentials.
This 7kW stove has a large door glass with a beautiful flame view. This is a stylish and easy-to-use heating companion for the home.

GET BROCHURE

WHERE TO BUY

FEATURES
SPECIFICATIONS
TECHNICAL
OPTIONAL EXTRAS

FEATURES

Lifetime guarantee
Better than Ecodesign standards when burning wood or solid fuel
Non-smoker paint
'Exempt appliance' - approved for use in Smoke Control Areas
Stainless steel ash pan and throat plate
Top or rear 127mm (5in) flue outlet

Direct air compatible
Preheated airwash system for clean glass
Externally controlled riddling grate
Height adjusting legs as standard
Optional Solid fuel kit for optimal solid smokeless fuel burning
Optional rear heat shield for closer positioning to combustibles

SPECIFICATIONS

Output:7.1 kW (Solid) 7 kW (Wood)

Energy Efficiency:81.2 % (Solid) 78.2 % (Wood)

Energy Rating:D (Solid) A (Wood)

Code:ECB7-S3

Width:518mm

Height:631mm

Depth:410mm

TECHNICAL

Installation Guide

Room heater / Dry Stove Installation Guide

BK545-rev15

04/09/25

User Guide

Ecoburn (S3) Stove User Guide

BK740-rev2

14/10/25

Component Installation Guide

Optional Direct Air Kit Fitting Instructions

BK737-rev3

17/02/25

Optional Heat Shield Kit Fitting Instructions

BK736-rev3

17/02/25

Optional Solid Fuel Kit Fitting Instructions

BK735-rev2

14/01/20

Optional Stand / Log Store Fitting Instructions

BK748-rev2

17/02/25

Declaration of Conformity

Ecoburn 7 (S3) UKCA Declaration of Conformity

04/01/22

Technical Specification / Product Fiche

Ecoburn 7 (S3)

BK999

08/04/25

Declaration of Performance

Ecoburn 5 / 5 Widescreen / 7 (S3)

18/01/25

EEI (Energy Rating) Label

Ecoburn 7 (S3) EEI

OPTIONAL EXTRAS

Stove Stand (STAND-5WS/7)

Ecoburn 7 Stand optional accessory
Ecoburn 7 on optional Stand

Width: 503mm
Height: 200 mm
Depth: 304 mm

Log store (LOG-5WS/7)

Ecoburn 7 Log store optional accessory
Ecoburn 7 on optional Log store

Width: 503 mm
Height: 420 mm
Depth: 304 mm

Rear heat shield (AFS4546)

Ecoburn 7 stove with rear heat shield accessory

Solid fuel kit (AFS4549)

Solid fuel kit installed in Ecoburn 7 stove

Direct Air Connector (AFS4544)

Direct air adaptor attached to rear of Ecoburn 7 stove Direct air connector attached to rear of Ecoburn 7 stove

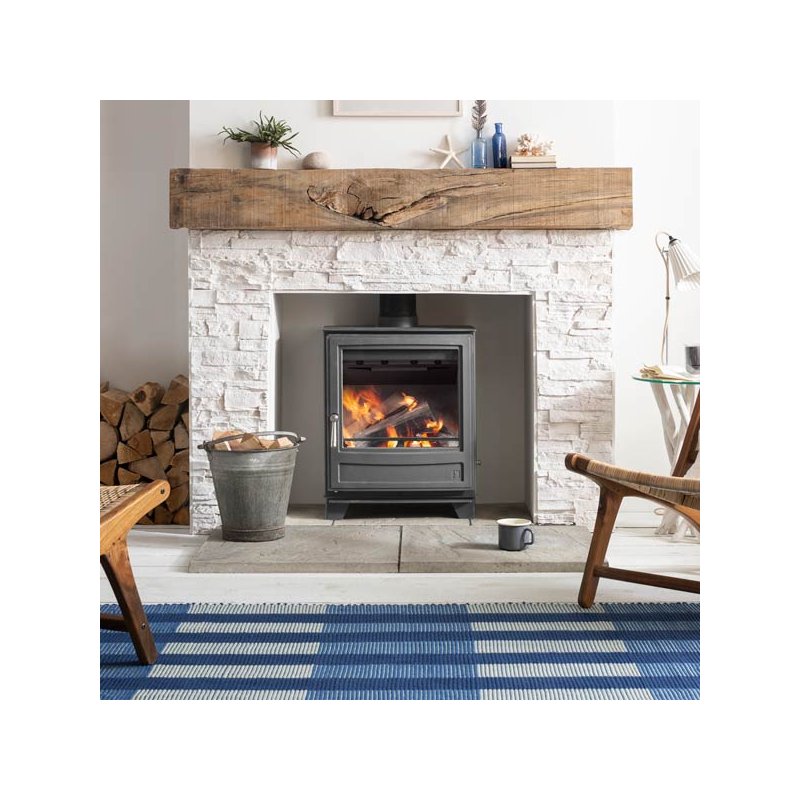

Ecoburn 7 (S3) in Graphite grey colour

Colour options

Original

Metallics

The BOLD Edit

The EARTH Collection

Please note that BOLD EDIT and EARTH COLLECTION paints are not suitable for use on single skin flue connection pipe when used with wood fuel or solid smokeless fuel stoves.
